62% Off

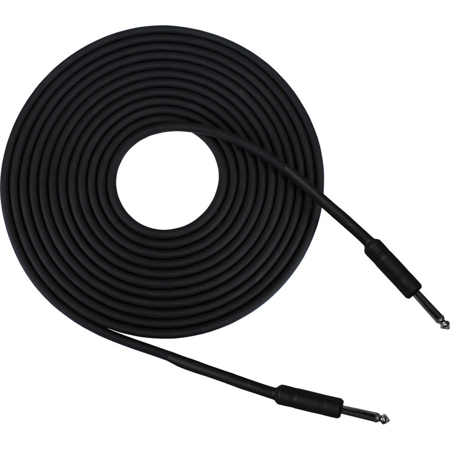

Pro Co Sound G1S-30 30' 24 AWG Guitar Instrument Cable with 2x 1/4" Shrink Over Barrel Connectors, Black

SKU: PRG1S30 MFR: G1S-30
$14.68
$38.66
Save: $23.98 (62%)
Earn VIP Reward Points

Key Features

  • Pro Co Sound 30' guitar cable ensures clear signal for pristine audio quality.
  • Durable instrument cable with quality connectors withstands frequent use and travel.
  • Low noise cable design minimizes interference, delivering a cleaner sound experience.
  • 24 AWG guitar instrument cable provides optimal signal transfer for reliable performance.
  • Enjoy a balanced connection with this Pro Co Sound cable, perfect for live performances.
  • This 30-foot audio cable gives you room to move on stage or in the studio.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Pro Co Sound G1S-30 Specifications

  • Cable Type

    INST1

  • Connectors

    2 x 1/4" connector with an added shrink strain over the barrel of each connector

  • Conductor Gauge

    24

  • Conductor

    AWG Size & Stranding: 24 AWG 19 strands 36 AWG
    Material: Bare annealed copper

  • Insulation

    Material: Polyethylene
    Wall Thickness: 0.05" (1.27 mm) nominal
    Diameter: 0.12 +/-0.002" (3.05 +/-0.050 mm)

  • Shield

    Composite conductive vinyl and copper serve
    Inner Layer:
    Material: Semi-conductive PVC
    Wall Thickness: 0.01" (0.25 mm) nominal
    Diameter: 0.14" (3.56 mm) nominal

    Outer Layer:
    Material: Bare annealed copper serve
    Coverage: 70% nominal

  • Jacket

    Material: Matte PVC
    Wall Thickness: 0.05" (1.27 mm) nominal
    Diameter: 0.24 +/-0.005" (6.10 +/- 0.127 mm)

  • Outer Diameter

    0.24" (6.09mm)

  • Capacitance

    25 pF/ft at 1 kHz

  • Impedance

    Characteristic: 60 Ohms (nominal) at 1 MHz

  • DC Resistance

    23 Ohms/1,000.0' (304.8m) at 68 deg. F (20 deg. C)

  • Length

    30' (9.14m)

About Pro Co Sound G1S-30

The Pro Co Sound RapcoHorizon G1S-30 30' Black Guitar Instrument Cable features two 1/4" connectors with an added shrink strain relief that utilizes a heat shrink process over the barrel of each connector. This cable utilizes an ultra flexible matte PVC jacket material for durability. This cable is terminated with high-quality, nickel-plated 1/4" connectors, which offer years of good performance and value. This cable is individually tested for performance and quality.

Pro Co Sound G1S-30 Features

  • Hi-Z unbalanced instrument cable for interfacing instrument level gear with amplifiers (guitars, bass guitars, keyboards, and other unbalanced hi-Z signal sources)
  • Utilizing a serve shield for quiet operation, yielding maximum flexibility
  • Low capacitance cable offers an expanded frequency response
  • Matte jacket PVC material is very flexible yet durable with very low memory
  • Pure copper conductor and shield
  • Features an added shrink strain relief utilizing a heat shrink process over the barrel of each connector

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Pro Co Sound 30' guitar cable ensures clear signal for pristine audio quality.
  • Durable instrument cable with quality connectors withstands frequent use and travel.
  • Low noise cable design minimizes interference, delivering a cleaner sound experience.
  • 24 AWG guitar instrument cable provides optimal signal transfer for reliable performance.
  • Enjoy a balanced connection with this Pro Co Sound cable, perfect for live performances.
  • This 30-foot audio cable gives you room to move on stage or in the studio.

What's in the box:

  • Pro Co Sound RapcoHorizon G1S-30 30' Guitar Instrument Cable
  • Pro Co Sound RapcoHorizon Lifetime Limited Warranty
