Pro Co Sound IT4A 4-Channel Isolation Transformer Unit, 20Hz to 20kHz Frequency Response, >680Ohms Input Impedance, <120Ohms Output Impedance

The Pro Co Sound TradeTools IT4A 4-Channel Isolation Transformer Unit provides four high-quality 1:1 line-level output transformers for applications requiring the high degree of electrical isolation only transformers can provide. The primary applications for the IT4A are in sound reinforcement systems where it may be necessary to break ground loops between pieces of equipment connected with unbalanced lines. For instance, it can be used to float the unbalanced outputs of an active crossover unit that must drive long cables connected to power amplifier inputs. Transformer isolation in such situations minimizes interference from SCR lighting dimmers, radio transmitters and 60 Hz AC power wiring. Furthermore, the common-mode voltage range of a transformer makes it far more forgiving of improper connections or fault conditions than any electronically balanced or differential" transformer less circuit. This makes transformer-floated outputs essential for safeguarding portable sound reinforcement systems and installations.

It is fitted with standard 3-pin XLR-type connectors and 3-conductor 1/4" / 6.3mm phone jacks for LINE IN and ISO OUT, so hookup typically requires only standard cables. The use of the Pro Co LOT-P transformer allows it to provide floating, low-impedance outputs with wide, flat frequency response, ultra-low distortion and no ringing or overshoot to degrade transient response. Individual GND/ LIFT switches provide isolation and buzz-free operation in virtually any environment. It's rugged 16 gauge steel and aluminum Uni box" construction enclosure is finished in a durable black texture powder coat finish with black anodized aluminum side channels. Easy to read control graphics are incorporated into the Lexan front and back panel overlays. Inside, the specially designed transformers combine superb audio quality with unsurpassed noise rejection.

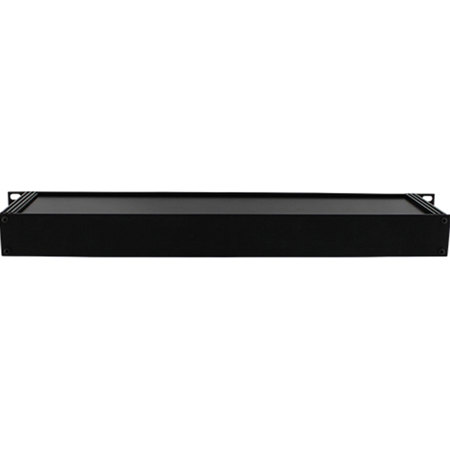

It can be mounted in any standard 19" / 482.6mm rack. Top quality connectors and switches provide trouble free service even in abusive situations such as remote broadcast and recording operations. The rack-mounting design allows the user to assemble a conveniently packaged expandable isolation system that combines top quality audio performance with an economical price.
