Promise Technology Pegasus J4 2.5" Thunderbolt Hard / Solid State Drive Enclosure (Empty)

SKU: PRJ4US

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2013-06-16T21:00:00

Rated 2 out of 5

Not Bootable, Poor Support

On my Windows system, the drive is not recognized and I have another Thunderbolt enabled Unix and the drive is not recognized. These were not listed on Promise's support page so I wasn't surprised. However, since most of my heavy lifting is on a Mac (OS X 10.8.4), which is listed as supported, I was disappointed one cannot boot from the J4. I contacted Promise and they recommended reformatting the drives, which I did: I still could not boot from the J4. Promise said they would have an answer Thursday, June 13th. It is now the 17th and they are not responding to my pings for help. I have wasted 6 hours on this issue. Promise acts like it is a new issue but I have found the same observation going back to the beginning of the year in their forums. I cannot recommend this drive. It seems well built, quiet and fast but it fails as a JBOD device. Also, Promise fails at support.

Sandifop

Promise Technology Pegasus J4 2.5" Thunderbolt Hard / SSD Enclosure (Empty) Specifications

  • Capacity

    0.0 TB

  • Array Type

    External RAID

  • Bays

    4

  • Drive Types Supported

    2.5" (6.35 cm) SATA hard disk drives and solid state drives

  • Channels

    4: 2x per Thunderbolt port

  • Sustained Data Transfer Rate

    Up to 480 MB/s with 7200 rpm HDDs
    Over 750 MB/s with SSDs

  • Video Stream Playback

    PCI Express (PCIe) expansion bus protocol integrated with DisplayPort protocol for simultaneous data transmission and video output

  • RAID

    RAID 0, 1 and JBOD
    Combinations possible via daisy chaining

  • Desktop/Rackmount

    Desktop

  • Status Indicator

    HDD LED and Thunderbolt connections LED

  • Input and Output Connectors

    2x Thunderbolt 10 Gb/s interfaces (cables sold separately)

  • Fan

    Yes, located on bottom of unit

  • Security

    No

  • System Requirements

    Mac computer with OS X 10.6.8, 10.7.4, 10.7.5, 10.8 or 10.8.2 and Thunderbolt port: MacBook Pro 13", MacBook Pro 15", MacBook Pro 17", iMac 21", iMac 27", MacBook Air, or Mac mini
    Display monitor: Apple LED Thunderbolt, Apple LED Cinema, Dell UltraSharp U3011, Philips 273P3LPHEB/96
    HDD or SSD (not included)
    Not Windows compatible

  • Supported Drives-1

    SATA hard drives:
    Hitachi 750GB Travelstar 7K750 (model #HTS727575A9E364) with 0D0 firmware
    Seagate 250GB Momentus Thin (model #ST9250LT003) with 0001SDM1 firmware, 500GB Momentus XT (model #ST95005620AS) with SD26 firmware and 750GB Momentus (model #ST9750420AS) with 0001SDM5 firmware

  • Supported Drives-2

    Toshiba 750GB MQ01ABD (model #MQ01ABD075) with 1U firmware and 500GB MQ01ABD (model #MQ01ABD050) with 01A firmware
    SSD drives:
    Toshiba 240GB THNSNS Series (model #THNSNS240GBSP) with TPCABBF0 firmware
    Intel 240GB 520 Series (model #SSDSC2CW2400A3) with 400i firmware, 120GB 510 Series (model #SSDSC2MH120A2) with PPG4 firmware and 300GB 320 Series (model #SSDSA2BW300G3) with 4PC10302 firmware
    Samsung 256GB 830 series (model #MZ-7PC256) with 2B1Q firmware

  • Electrical Requirements

    Power adapter (included)

  • Construction

    Aluminum

  • Weight

    3.53lbs (1.6kg)

  • UPC Code

    704118092239

About Promise Technology Pegasus J4 2.5" Thunderbolt Hard / SSD Enclosure (Empty)

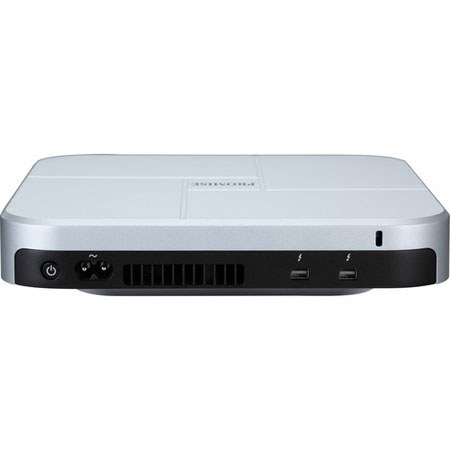

The Promise Technology J4 2.5" Thunderbolt Hard / Solid State Drive Enclosure (Empty) is a disk array with four empty 2.5" bays for SATA hard disk (HDD) or solid state (SSD) drives (sold separately).

The array is equipped with two Thunderbolt 10Gb/s interfaces (cables sold separately) and delivers data transfer speeds of up to 480MB/s with 7200rpm HDDs or over 750MB/s with SSDs. It can be set up in a variety of RAID backup configurations, including RAID 0, 1 and JBOD, giving you the flexibility to choose higher data storage capacity or greater data protection.

The system supports daisy chaining up to 6 Thunderbolt-compatible devices. It is compatible with Mac OS X 10.6.8, 10.7.4, 10.7.5, 10.8 and 10.8.2. It supports Time Machine in Mac OS X. The enclosure is constructed from durable, lightweight aluminum.

Promise Technology Pegasus J4 2.5" Thunderbolt Hard / SSD Enclosure (Empty) Features

  • Empty enclosure with four SATA hard disk / solid state drive bays
  • Connects to a computer via two Thunderbolt 10Gb/s interfaces (cables sold separately). Delivers up to 480MB/s with 7200rpm HDDs or over 750MB/s speeds with SSDs
  • Choose from a variety of RAID backup configurations, including RAID 0, 1 and JBOD, giving you the flexibility to choose higher data storage capacity or greater data protection
  • RAID 0 offers no redundancy, so it gives you the least amount of data protection, but offers improved performance and additional storage (100% capacity)
  • RAID 1 creates an exact copy (mirroring without parity or striping) of a set of data on 2 or more disks, for increased protection but reduced capacity and transfer speed
  • JBOD is Just a Bunch of Disks, offering no redundancy and therefore very little protection. Each disk is accessed directly as an independent drive
  • It differs from RAID 0 in that it does not truncate the other drives to the size of the smallest disk in the array
  • The hard drive array supports daisy chaining up to 6 Thunderbolt-compatible devices, meaning you can combine high levels of data protection with high capacity and transfer speeds by configuring 2 daisy chained J4 arrays in a RAID 10 (RAID 1 + RAID 0)
  • Combine with a Mac mini to create a cost-effective server-storage solution. Benefit from the freedom to add more devices when you require additional storage capacity
  • Compatible with Mac OS X 10.6.8, 10.7.4, 10.7.5, 10.8 and 10.8.2. Supports Time Machine
  • Constructed from durable, lightweight aluminum

What's in the box:

  • Promise Technology Pegasus J4 2.5" Thunderbolt Hard / SSD Enclosure (Empty)
  • Power Adapter
  • Promise Technology Warranty
