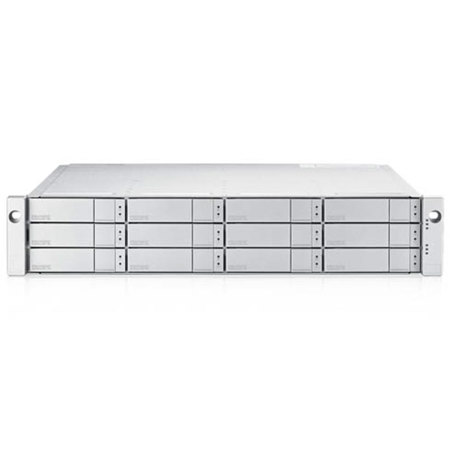

Promise Technology VTrak J5300s 2U 12x 3.5" LFF Bay JBOD 12G SAS Dual IOM Expansion Subsystem with 48TB (12x 4TB) HDD

SKU: PRJ5300SDQS4 MFR: J5300SDQS4
Earn VIP Reward Points

Key Features

  • This Promise Technology JBOD offers 48TB storage, perfect for large file storage and backup.
  • Ensure data security with this VTrak J5300s, featuring dual IOMs for reliable redundancy.
  • Experience fast performance with 12G SAS interface, optimizing data access and transfer rates.
  • Enjoy easy setup with the VTrak J5300s, designed for quick integration into existing systems.
  • Rely on Promise Technology's brand for a dependable storage solution, backed by a 3-year warranty.
  • Access your data remotely with this NAS and server solution, enhancing collaboration and efficiency.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Promise Technology VTrak J5300s Specifications

Drive
  • Form Factor

    2U/12 Bay

  • Drive Support

    Up to 12x 3.5" drives
    12GB SAS HDD
    Supports any mix of SAS and SATA drives simultaneously in the same enclosure

  • Total Installed Capacity

    48TB (12x 4TB 12Gb/s SAS) HDD

  • External I/O Ports

    Each SBB2.0 I/O Module has four SAS ports using industrial standard Mini SAS HD connectors (SFF-8644), one port supports Wake-on SAS feature for upstream and other ports can be either upstream or downstream for cascading additional JBODs

SAS Functions

Jump to...
  • Expander Management Functions

    Self-configuring expander supports full SAS domain topology management
    T-10 based zoning support
    End Device Frame Buffering
    Smart cable support to detect cable type and tune PHY automatically for maximum reliability
    SMP - SAS Management Protocol
    In-band access to Expander and PHY information
    Statistic counters and performance monitors
    SES EM - SES Enclosure Management
    SCSI SES command set over virtual SSP device
    Wake-on-SAS support, Wake-on-LAN support

System Management

Jump to...
  • Management Interfaces

    LED status indicator support for drives, FRU and enclosure environmentals
    In-band SES enclosure management alerts user to out of spec operation: thermal condition, voltage condition or component failures, protecting data and hardware
    Full subsystem management CLI through out-of-band RS232 serial port

  • Enclosure Protocol and Management

    ANSI T10 SES 2, SMP (SES over in-band SAS)
    Persistence Error Logging with NVRAM, Extensive Service Report File, VPD (Vital Product Data) on Chassis and FRUs

Mechanical

Jump to...
  • Voltage

    100-240 Vac Auto-Ranging

  • Current (Maximum)

    9A at 100 Vac; 4A at 240 Vac

  • Power Conversion Efficiency

    >80% at 110V (>20% load), >80% at 240V (>20% load) Temperature Range

  • Temperature Range

    Operational: 5 to 40 deg. C (41 to 104 deg. F), Non-OperaJonal: -40 to 60 deg. C (-40 to 140 deg. F)

  • Humidity

    Operational: 10% to 90% (Non-Condensing), Non-Operational: 5% to 95% (Non-Condensing)

  • Acoustic Noise Levels

    55 dB (Typical), 65 dB (Maximum)

  • Shock

    Operational: 5G, 11 ms duration, Non-Operational: 10G, 11ms duration

  • Vibration

    Operational: 0.3G, 5 to 500 Hz, Non-Operational: 1G, 5 to 500 Hz

  • Safety and Emission Certification

    EMC Class A: CE, FCC, VCCI, BSMI, RCM and KC
    Safety: IEEE CB, UL/cUL and TUV

  • Environmental Standards

    RoHS, GreenPC, WEEE

  • Power Supply

    Efficient 80PLUS GOLD Certified redundant PSU

  • Dimensions (HxWxD)

    3.5 x 17.6 x 19.96" (8.89 x 44.70 x 50.70cm)

  • Weight

    32.6 lbs (14.79kg) without drives
    54.7 lbs (24.81kg) with drives

  • UPC Code

    704118104895

About Promise Technology VTrak J5300s

Affordable Enterprise-Level Storage
The VTrak J5000 Series delivers an affordable high performance SAS solution with advanced enterprise level reliability and functionality. The four external 12 Gb/s SAS ports per I/O module provide the connectivity for large capacity solutions requiring multiple cascaded JBODs and high bandwidth solutions requiring speed. It features fully redundant I/O modules, power supplies and cooling units, combined with a cable-less system design, providing exceptional data availability even during component failures for the enterprise environment.

Supports Hybrid HDD/SSD Arrays
Fully backward compatible with 6 Gb/s SAS/SATA devices, users have the ability to deploy 3 Gb/s, 6 Gb/s and 12 Gb/s SAS/SATA HDDs and SSDs in the J5000 Series. Efficient power supplies provide up to 90% power efficiency, which improves TCO by conserving power, reducing heat output and improving cooling costs. The internal 12 Gb/s SAS expander-based architecture also allows for transparent access to each drive, enabling full utilization of the power management features built into modern hard drives.

Increased Performance to Optimize Datacenters
The VTrak J5000 Series moves data at incredible speeds, allowing you to optimize your datacenter. Administrators can deploy with the fastest SAS bus speed with 12 Gb/s HDDs or SSDs. These systems are fully backward compatible with 6 Gb/s SAS/SATA drives, yet are still able to optimize the full port bandwidth of 12 Gb/s to the host. Flash arrays allow you to optimize speed for key enterprise apps that require utmost performance. The internal 12 Gb/s SAS expander-based architecture allows for data to transfer faster with greater redundancy protection.

Promise Technology VTrak J5300s Features

  • VTrak J5000 Series 12 Gb/s SAS subsystems deliver a high performance SAS solution with advanced enterprise level reliability and functionality
  • 12 hot-swappable 3.5" (LFF) drive bays in a robust 2U chassis
  • Supports SAS and SATA drives simultaneously and is compatible with leading SAS & SATA drives, HBAs and RAID controllers
  • Dual active/active SAS JBOD I/O modules provide redundant data paths to ensure data availability and redundant hot-swappable Field Replaceable Units (FRUs)
  • Flexible wide-port configuration: Four x4 wide ports, two x8 wide ports or one x16 wide port per IOM and SES-2 compliant enclosure management

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • This Promise Technology JBOD offers 48TB storage, perfect for large file storage and backup.
  • Ensure data security with this VTrak J5300s, featuring dual IOMs for reliable redundancy.
  • Experience fast performance with 12G SAS interface, optimizing data access and transfer rates.
  • Enjoy easy setup with the VTrak J5300s, designed for quick integration into existing systems.
  • Rely on Promise Technology's brand for a dependable storage solution, backed by a 3-year warranty.
  • Access your data remotely with this NAS and server solution, enhancing collaboration and efficiency.

What's in the box:

  • Promise Technology VTrak J5300s 2U 12x 3.5 " LFF Bay JBOD 12G SAS Dual IOM Expansion Subsystem with 48TB (12x 4TB) HDD
  • Promise Technology 3 Year Limited Warranty
