2U/12 Bay
Up to 12x 3.5" drives
12GB SAS HDD
Supports any mix of SAS and SATA drives simultaneously in the same enclosure
96TB (12x 8TB 12Gb/s SAS) HDD
Each SBB2.0 I/O Module has four SAS ports using industrial standard Mini SAS HD connectors (SFF-8644), one port supports Wake-on SAS feature for upstream and other ports can be either upstream or downstream for cascading additional JBODs
Self-configuring expander supports full SAS domain topology management
T-10 based zoning support
End Device Frame Buffering
Smart cable support to detect cable type and tune PHY automatically for maximum reliability
SMP - SAS Management Protocol
In-band access to Expander and PHY information
Statistic counters and performance monitors
SES EM - SES Enclosure Management
SCSI SES command set over virtual SSP device
Wake-on-SAS support, Wake-on-LAN support
LED status indicator support for drives, FRU and enclosure environmentals
In-band SES enclosure management alerts user to out of spec operation: thermal condition, voltage condition or component failures, protecting data and hardware
Full subsystem management CLI through out-of-band RS232 serial port
ANSI T10 SES 2, SMP (SES over in-band SAS)
Persistence Error Logging with NVRAM, Extensive Service Report File, VPD (Vital Product Data) on Chassis and FRUs
100-240 Vac Auto-Ranging
9A at 100 Vac; 4A at 240 Vac
>80% at 110V (>20% load), >80% at 240V (>20% load) Temperature Range
Operational: 5 to 40 deg. C (41 to 104 deg. F), Non-OperaJonal: -40 to 60 deg. C (-40 to 140 deg. F)
Operational: 10% to 90% (Non-Condensing), Non-Operational: 5% to 95% (Non-Condensing)
55 dB (Typical), 65 dB (Maximum)
Operational: 5G, 11 ms duration, Non-Operational: 10G, 11ms duration
Operational: 0.3G, 5 to 500 Hz, Non-Operational: 1G, 5 to 500 Hz
EMC Class A: CE, FCC, VCCI, BSMI, RCM and KC
Safety: IEEE CB, UL/cUL and TUV
RoHS, GreenPC, WEEE
Efficient 80PLUS GOLD Certified redundant PSU
3.5 x 17.6 x 19.96" (8.89 x 44.70 x 50.70cm)
32.6 lbs (14.79kg) without drives
54.7 lbs (24.81kg) with drives
704118113217

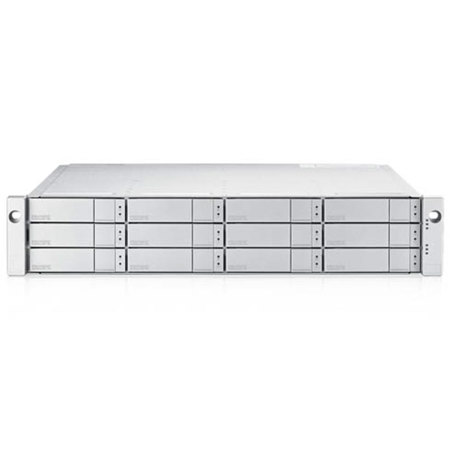

Become a leader in data management with the VTrak J5300s 2U 12x 3.5" LFF Bay JBOD 12G SAS Single IOM Expansion Subsystem with 96TB (12x 8TB) HDD. This high-performance, reliable, and advanced storage solution delivers enterprise-level functionality at an affordable price.
Designed by the reputable Promise Technology, this durable subsystem is equipped with four external 12 Gb/s SAS ports per I/O module, offering superior connectivity for large capacity solutions that require multiple cascaded JBODs and high bandwidth solutions that demand speed.
The VTrak J5300s features fully redundant I/O modules, power supplies, and cooling units, all housed within a cable-less system design. This ensures exceptional data availability, even during component failures, making it an ideal choice for enterprise environments that prioritize data security and accessibility.
The subsystem supports Hybrid HDD/SSD Arrays and is fully backward compatible with 6 Gb/s SAS/SATA devices. This allows users to deploy 3 Gb/s, 6 Gb/s, and 12 Gb/s SAS/SATA HDDs and SSDs, providing flexibility and scalability in storage management.
The efficient power supplies offer up to 90% power efficiency, reducing heat output and improving cooling costs, thereby enhancing your total cost of ownership (TCO). The internal 12 Gb/s SAS expander-based architecture allows for transparent access to each drive, enabling full utilization of the power management features built into modern hard drives.
Experience increased performance with the VTrak J5300s, designed to optimize datacenters by moving data at incredible speeds. Deploy with the fastest SAS bus speed with 12 Gb/s HDDs or SSDs. These systems are fully backward compatible with 6 Gb/s SAS/SATA drives, yet are still able to optimize the full port bandwidth of 12 Gb/s to the host.
Optimize speed for key enterprise apps that require utmost performance with flash arrays. The internal 12 Gb/s SAS expander-based architecture allows for faster data transfer with greater redundancy protection. With a spacious 96TB capacity, the VTrak J5300s is the perfect solution for data storage and network storage needs.
