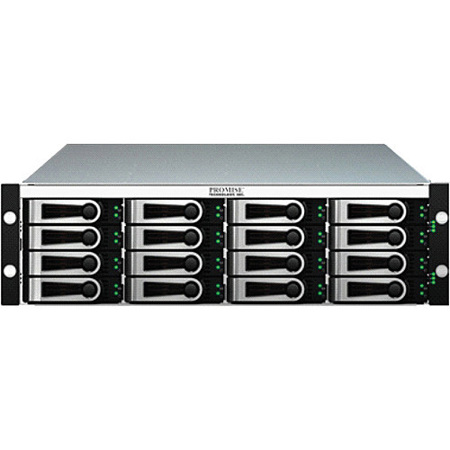

Promise Technology VTrak J5600s 3U 16x 3.5" LFF Bay JBOD 12G SAS Dual IOM Expansion Subsystem with 160TB (16x 10TB) HDD

SKU: PRJ5600SDQS1 MFR: J5600SDQS10
Earn VIP Reward Points

Key Features

  • Get robust data security with the Promise Technology VTrak J5600s JBOD system.
  • Enjoy fast performance with 12G SAS interface for quick data access and transfers.
  • Expand your storage easily; cascade additional JBODs for growing data needs.
  • Benefit from 160TB storage capacity, perfect for large-scale data archiving.
  • Ensure data integrity with real-time monitoring of thermal and voltage conditions.
  • Experience easy setup with a self-configuring expander that simplifies network builds.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Promise Technology VTrak J5600s Dual Specifications

Drive
  • Form Factor

    3U/16 Bay

  • Drive Support

    Up to 16x 3.5" drives
    12GB SAS HDD
    Supports any mix of SAS and SATA drives simultaneously in the same enclosure

  • Total Installed Capacity

    160TB (16x 10TB 12Gb/s SAS) HDD

  • External I/O Ports

    Each SBB2.0 I/O Module has four SAS ports using industrial standard Mini SAS HD connectors (SFF-8644), one port supports Wake-on SAS feature for upstream and other ports can be either upstream or downstream for cascading additional JBODs

SAS Functions

Jump to...
  • Expander Management Functions

    Self-configuring expander supports full SAS domain topology management
    T-10 based zoning support
    End Device Frame Buffering
    Smart cable support to detect cable type and tune PHY automatically for maximum reliability
    SMP - SAS Management Protocol
    In-band access to Expander and PHY information
    Statistic counters and performance monitors
    SES EM - SES Enclosure Management
    SCSI SES command set over virtual SSP device
    Wake-on-SAS support, Wake-on-LAN support

System Management

Jump to...
  • Management Interfaces

    LED status indicator support for drives, FRU and enclosure environmentals
    In-band SES enclosure management alerts user to out of spec operation: thermal condition, voltage condition or component failures, protecting data and hardware
    Full subsystem management CLI through out-of-band RS232 serial port

  • Enclosure Protocol and Management

    ANSI T10 SES 2, SMP (SES over in-band SAS)
    Persistence Error Logging with NVRAM, Extensive Service Report File, VPD (Vital Product Data) on Chassis and FRUs

Mechanical

Jump to...
  • Voltage

    100-240 Vac Auto-Ranging

  • Current (Maximum)

    9A at 100 Vac; 4A at 240 Vac

  • Power Conversion Efficiency

    >80% at 110V (>20% load), >80% at 240V (>20% load) Temperature Range

  • Temperature Range

    Operational: 5 to 40 deg. C (41 to 104 deg. F), Non-OperaJonal: -40 to 60 deg. C (-40 to 140 deg. F)

  • Humidity

    Operational: 10% to 90% (Non-Condensing), Non-Operational: 5% to 95% (Non-Condensing)

  • Acoustic Noise Levels

    55 dB (Typical), 65 dB (Maximum)

  • Shock

    Operational: 5G, 11 ms duration, Non-Operational: 10G, 11ms duration

  • Vibration

    Operational: 0.3G, 5 to 500 Hz, Non-Operational: 1G, 5 to 500 Hz

  • Safety and Emission Certification

    EMC Class A: CE, FCC, VCCI, BSMI, RCM and KC
    Safety: IEEE CB, UL/cUL and TUV

  • Environmental Standards

    RoHS, GreenPC, WEEE

  • Power Supply

    Efficient 80PLUS GOLD Certified redundant PSU

  • Dimensions (HxWxD)

    5.2 x 17.6 x 19.96" (13.21 x 44.70 x 50.70cm)

  • Weight

    56 lbs (25.40kg) without drives
    84 lbs (38.10kg) with drives

  • UPC Code

    704118120970

About Promise Technology VTrak J5600s Dual

How can you elevate your data storage capabilities to meet the demands of a high-performance enterprise environment The VTrak J5600s 3U 16x 3.5" LFF Bay JBOD 12G SAS Dual IOM Expansion Subsystem is the sophisticated solution you need. Boasting a high-capacity storage of 160TB across 16 robust 10TB HDDs, this advanced system is engineered to provide an exceptional level of reliability and functionality.

Designed for the data-intensive tasks of modern data centers, the VTrak J5600s features fully redundant I/O modules, power supplies, and cooling units. This redundancy, coupled with a cable-less system design, ensures continuous data availability and enterprise-grade durability, even in the event of component failures.

The system's dual IOMs offer high-speed data access, with four external 12 Gb/s SAS ports per module, facilitating the connectivity required for expansive solutions involving multiple cascaded JBODs, as well as high bandwidth applications demanding swift data transfer rates.

Supporting hybrid HDD/SSD arrays, the VTrak J5600s is fully backward compatible with 6 Gb/s SAS/SATA devices, allowing for a versatile deployment of 3 Gb/s, 6 Gb/s, and 12 Gb/s SAS/SATA HDDs and SSDs. This flexibility enables users to tailor the storage system to their specific needs, whether prioritizing capacity or speed.

Efficiency is also at the forefront of the VTrak J5600s design. The system's power supplies deliver up to 90% power efficiency, contributing to a lower total cost of ownership (TCO) by conserving energy, reducing heat output, and decreasing cooling expenses. Additionally, the internal 12 Gb/s SAS expander-based architecture provides transparent access to each drive, allowing for full utilization of the advanced power management features inherent in modern hard drives.

For data centers looking to maximize performance, the VTrak J5600s moves data at remarkable speeds, optimizing operations and enabling administrators to deploy the fastest SAS bus speed with 12 Gb/s HDDs or SSDs. Even when using 6 Gb/s SAS/SATA drives, the system can fully optimize the full port bandwidth of 12 Gb/s to the host. This capability is particularly beneficial for flash arrays, where speed is critical for key enterprise applications that demand peak performance.

In summary, the VTrak J5600s is a reliable, high-capacity, and robust storage solution that is ideal for enterprises seeking to enhance their data storage infrastructure with a sophisticated and advanced subsystem. With its impressive speed and redundancy features, it stands as a compelling choice for those who require a storage solution that can keep pace with the ever-growing data management needs of today's enterprise environments.

Promise Technology VTrak J5600s Dual Features

  • VTrak J5000 Series 12 Gb/s SAS subsystems deliver a high performance SAS solution with advanced enterprise level reliability and functionality
  • 16 hot-swappable 3.5" (LFF) drive bays in a robust 3U chassis
  • Supports SAS and SATA drives simultaneously and is compatible with leading SAS & SATA drives, HBAs and RAID controllers
  • Dual active/active SAS JBOD I/O modules provide redundant data paths to ensure data availability and redundant hot-swappable Field Replaceable Units (FRUs)
  • Flexible wide-port configuration: Four x4 wide ports, two x8 wide ports or one x16 wide port per IOM and SES-2 compliant enclosure management

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Get robust data security with the Promise Technology VTrak J5600s JBOD system.
  • Enjoy fast performance with 12G SAS interface for quick data access and transfers.
  • Expand your storage easily; cascade additional JBODs for growing data needs.
  • Benefit from 160TB storage capacity, perfect for large-scale data archiving.
  • Ensure data integrity with real-time monitoring of thermal and voltage conditions.
  • Experience easy setup with a self-configuring expander that simplifies network builds.

What's in the box:

  • Promise Technology VTrak J5600s 3U 16x 3.5 " LFF Bay JBOD 12G SAS Dual IOM Expansion Subsystem with 160TB (16x 10TB) HDD
  • Promise Technology 3 Year Limited Warranty
