Pro Co Sound MS82P 8 Channel 2 Way Rack Mount Mic Splitter, 20Hz-20kHz Frequency Response, < 1.0dB Voltage Loss

SKU: PRMS82P MFR: MS82P
Earn VIP Reward Points

Key Features

  • Pro Co MS82P: Pristine audio quality for studio and live sound microphone preamplifiers.
  • Achieve optimal gain range with this 8-channel mic splitter, perfect for complex setups.
  • Ensure low noise in recordings using isolated outputs to eliminate ground loop hum.
  • Versatile impedance control: Tailor your sound with selectable ground lift options.
  • Robust build quality: Rack mountable design endures rigorous studio and stage use.
  • Wide 20Hz-20kHz frequency response captures every nuance of your microphone signal.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Pro Co Sound MS82P Specifications

  • Frequency Response

    20 Hz - 20 kHz, +/- .5% at -15 dBv output
    -3 dB at approximately 65 kHz

  • Total Harmonic Distortion

    <.03% 20 Hz - 20 kHz at -30 dBv output
    <.1% 30 Hz - 20 kHz at -15 dBv output
    <.25% 20 Hz - 20 kHz at -15 dBv output

  • Phase Response

    <-20 degrees at 20 kHz (ref. 1.0 kHz)

  • Rise Time

    <4.5 microseconds (2.0 kHz square wave, 10%-90%)

  • Voltage Loss

    <1.0 dB at 1.0 kHz

  • Input Impedance

    >1050 Ohms at 1.0 kHz1080 Ohms at 10kHz
    Nominal source impedance is 150 Ohms

  • Output Impedance

    <270 Ohms at 1.0 KHz
    <300 Ohms at 10 kHz
    Nominal output impedance is 1.0 KOhms

  • Maximum Input Level for 1% THD

    0 dBv at 20 Hz
    4 dBv at 30 Hz
    8 dBv at 50 Hz

  • Controls 1

    MICROPHONE INPUT: Phoenix COMBICON plug-in screw connector accepts signals from low-impedance (150 Ohms nominal) microphones or similar sources. Input impedance (with 1.0 KOhms loads on DIRECT and ISO OUT) is approximately 333 Ohms
    DIRECT OUTPUT: Phoenix COMBICON plug-in screw connector wired in parallel with MIC IN provides signal to feed mixer input

  • Controls 2

    ISOLATED OUTPUT: Phoenix COMBICON plug-in screw connector provides floating transformer isolated low-impedance output to feed mixer inputs. Recommended load impedances: 1.0 KOhms

  • Controls 3

    GND/LIFTS: GND position connects pin 1 of MIC IN/DIRECT OUT to pin 1 of ISO OUT. LIFT position floats" ISO OUT. Used to reduce hum and buzz by eliminating ground loops and providing proper grounding for various conditions
    48V IN/OUT: 2-pole Phoenix COMBICON plug-in screw connectors provide input and loop-through output for external phantom power supply

  • Dimensions (D x W x H)

    4.75 x 19 x 1.75" / 12.06 x 48.26 x 4.44cm

  • Weight

    4.70lbs /2.13kg

About Pro Co Sound MS82P

Experience unparalleled audio management with the Pro Co Sound MS82P, an 8 Channel 2 Way Rack Mount Mic Splitter designed for professional sound reinforcement systems. This essential piece of audio equipment expertly splits signals from eight low-impedance microphones or similar sources into two distinct outputs, allowing for simultaneous connection to multiple preamplifiers from a single source.

Crafted for versatility, the MS82P boasts a dedicated phantom power buss, ensuring that condenser microphones receive consistent power from an external supply. This feature is crucial for maintaining signal integrity and avoiding the transients that can occur when relying on a console's power supply, safeguarding your audio quality during live performances and studio sessions.

Ideal for large-scale audio setups, the MS82P excels in environments where P.A. system microphones must be distributed to stage monitors, broadcast systems, or remote recording mixers. Its transformer isolation technology is the cornerstone of its design, effectively minimizing interference from electromagnetic and radio-frequency interference (EMI/RFI), as well as troublesome ground loops. This isolation ensures that the balanced lines' common-mode noise rejection capabilities are fully leveraged, delivering pristine audio transmission.

The MS82P is equipped with user-friendly Phoenix COMBICON plug-in screw connectors for MIC IN, DIRECT OUT, and ISO OUT, streamlining setup with simple bare-wire connections. The Pro Co MBT-1 transformer within the MS82P is a testament to audio fidelity, providing a floating, low-impedance output with a wide, flat frequency response range of 20Hz-20kHz, and less than 1.0dB voltage loss. This ensures ultra-low distortion and preserves the integrity of transient responses, avoiding any degradation in audio quality.

Encased in a rugged 16-gauge steel and aluminum "Uni-box" enclosure with a resilient black texture powder coat finish and anodized aluminum side channels, the MS82P is built to withstand the rigors of on-the-road wear and tear. The Lexan front and back panel overlays feature clearly legible control graphics, enhancing usability in any setting.

Internally, the MS82P's transformers are engineered for exceptional audio quality and unmatched noise rejection. The double electrostatic shield and GND/LIFT switch provide additional layers of isolation, ensuring buzz-free operation across various environments.

Designed for seamless integration into any standard 19" rack, the MS82P offers a compact and expandable solution for your audio splitting needs. Its top-quality connectors and switches are designed for longevity, ensuring reliable performance even in the most demanding remote broadcast and recording operations.

Elevate your audio setup with the Pro Co Sound MS82P 8 Channel 2 Way Rack Mount Mic Splitter, where superior audio performance and isolation meet professional-grade durability and ease of use.

Pro Co Sound MS82P Features

  • Provides 2-way Split for Low Impedance Microphone
  • 8 Splitter Channels in Single Rack Space
  • Allows Assembly of Economical Expandable Splitting System
  • Great for Musicians' Monitoring and Recording
  • Phantom Power Buss for Powering Condenser Mics from an External Power Source
  • Connects with Phoenix COMBICON Plug-in Screw Connectors
  • High Quality Transformer-Isolated Output
  • Rugged Pro Co Uni-Box Construction Provides Protection and EMI/RMI Shielding

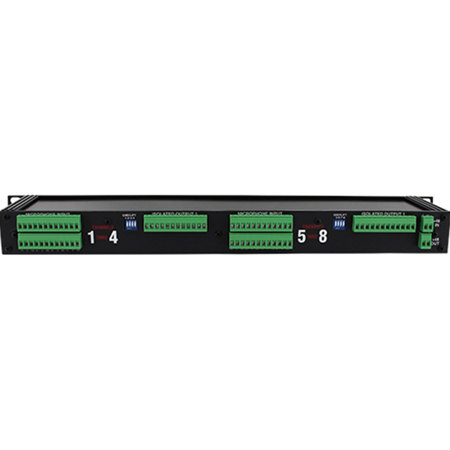

  • All Connectors Accessible from Rear Panel

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Pro Co MS82P: Pristine audio quality for studio and live sound microphone preamplifiers.
  • Achieve optimal gain range with this 8-channel mic splitter, perfect for complex setups.
  • Ensure low noise in recordings using isolated outputs to eliminate ground loop hum.
  • Versatile impedance control: Tailor your sound with selectable ground lift options.
  • Robust build quality: Rack mountable design endures rigorous studio and stage use.
  • Wide 20Hz-20kHz frequency response captures every nuance of your microphone signal.

What's in the box:

  • Pro Co Sound MS82P 8 Channel 2 Way Rack Mount Mic Splitter
  • Pro Co Sound 2 Year Limited Warranty
