Pro Co Sound MS83 8 Channel 3 Way Rack Mount Microphone Splitter, 20Hz-20kHz Frequency Response, < 2.5dB Voltage Loss

SKU: PRMS83 MFR: MS83
Earn VIP Reward Points

Key Features

  • Achieve pristine audio with this 8-channel microphone splitter for studio recording.
  • Ensure optimal signal flow with low noise & wide 20Hz-20kHz frequency response.
  • Pro Co Sound MS83 offers versatile connectivity for various audio input sources.
  • Rack-mount design integrates easily into your existing studio or live sound setup.
  • Eliminate ground loops with ground lift switches, reducing hum for clean recordings.
  • Rugged build quality ensures reliable performance for stage & studio microphone splitting.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Pro Co Sound MS83 Specifications

  • Frequency Response

    20 Hz - 20 kHz, +/- .25% at -15 dBv output
    -3 dB at approximately 140 kHz

  • Total Harmonic Distortion

    <.03% 20 Hz - 20 kHz at -30 dBv output
    <.1% 30 Hz - 20 kHz at -15 dBv output
    <.25% 20 Hz - 20 kHz at -15 dBv output

  • Phase Response

    <-13 degrees at 20 kHz (ref. 1.0 kHz)

  • Rise Time

    <2.4 microseconds (2.0 kHz square wave, 10%-90%)

  • Voltage Loss

    <2.5 dB at 1.0 kHz

  • Input Impedance

    >570 Ohms at 1.0 kHz
    >570 Ohms at 10kHz
    Nominal source impedance is 150 Ohms

  • Output Impedance

    <255 Ohms at 1.0 KHz
    <270 Ohms at 10 kHz
    Nominal output impedance is 1.0 KOhms

  • Maximum Input Level for 1% THD

    0 dBv at 20 Hz
    4 dBv at 30 Hz
    8 dBv at 50 Hz

  • Controls 1

    MICROPHONE INPUT : Phoenix COMBICON plug-in screw connector accepts signals from low-impedance (150 Ohms nominal) microphones or similar sources. Input impedance (with 1.0 KOhms loads on DIRECT and ISO OUTS) is approximately 333 Ohms .
    DIRECT OUTPUT : Phoenix COMBICON plug-in screw connector wired in parallel with MIC IN provides signal to feed mixer input

  • Controls 2

    ISOLATED OUTPUTS : Phoenix COMBICON plug-in screw connectors provide floating transformer isolated low-impedance outputs to feed mixer inputs. Recommended load impedances: 1.0 KOhms
    GND/LIFTS : GND position connects pin 1 of MIC IN/DIRECT OUT to pin 1 of ISO OUTS. LIFT position floats" ISO OUTS. Used to reduce hum and buzz by eliminating ground loops and providing proper grounding for various Conditions

  • Dimensions (D x W x H)

    4.75 x 19 x 1.75" / 12.06 x 48.26 x 4.44cm

  • Weight

    4.10lbs / 1.85kg

About Pro Co Sound MS83

What sets the Pro Co Sound MS83 8 Channel 3 Way Rack Mount Microphone Splitter apart is its ability to efficiently split signals from eight low-impedance microphones into three distinct outputs. This feature allows for simultaneous feeding of three microphone preamplifiers from a single source, making it an invaluable asset in large sound reinforcement systems.

Designed for professional use, this microphone splitter is ideal for complex audio setups where the P.A. system microphones need to be connected to a stage monitor system as well as a broadcast or remote recording mixer. Its transformer isolation minimizes interference from EMI/RFI and ground loops, ensuring clear, noise-free audio.

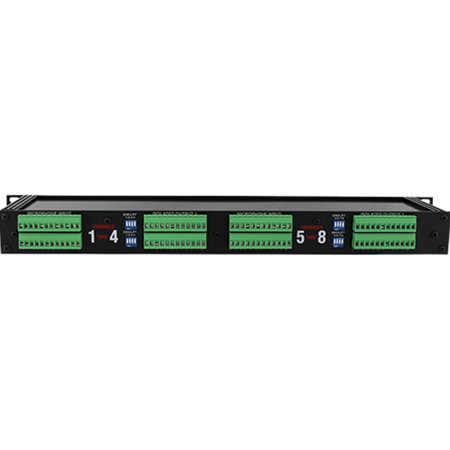

The MS83 is equipped with Phoenix COMBICON plug-in screw connectors for MIC IN, DIRECT OUT, and ISO OUT 1 and 2, simplifying the hookup process. The Pro Co MBT-2 transformer within the MS83 provides floating, low-impedance outputs with a wide, flat frequency response, ultra-low distortion, and minimal ringing or overshoot, enhancing the overall transient response.

Constructed with a rugged 16 gauge steel and aluminum "Uni box" enclosure, this microphone splitter is finished in a durable black texture powder coat with black anodized aluminum side channels. The Lexan front and back panel overlays feature easy-to-read control graphics, while the specially designed transformers inside offer superb audio quality and unsurpassed noise rejection.

The MS83 is designed to fit any standard 19" (482.6mm) rack, making it a versatile choice for various audio setups. Its top-quality connectors and switches are built to withstand even the most demanding environments, such as remote broadcast and recording operations. The rack-mounting design of this professional-grade microphone splitter allows for the assembly of a conveniently packaged, expandable splitting system that delivers top-quality audio performance and isolation.

Pro Co Sound MS83 Features

  • Provides 3-way Split for Low Impedance Microphone
  • 8 Splitter Channels in Single Rack Space
  • Allows Assembly of Economical Expandable Splitting System
  • Great for Musicians' Monitoring and Recording
  • Connects with Phoenix COMBICON Plug-In Screw Connectors
  • High Quality Transformer-Isolated Output
  • Rugged Pro Co Uni-Box Construction Provides Protection and EMI/RFI Shielding

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Achieve pristine audio with this 8-channel microphone splitter for studio recording.
  • Ensure optimal signal flow with low noise & wide 20Hz-20kHz frequency response.
  • Pro Co Sound MS83 offers versatile connectivity for various audio input sources.
  • Rack-mount design integrates easily into your existing studio or live sound setup.
  • Eliminate ground loops with ground lift switches, reducing hum for clean recordings.
  • Rugged build quality ensures reliable performance for stage & studio microphone splitting.

What's in the box:

  • Pro Co Sound MS83 8 Channel 3 Way Rack Mount Microphone Splitter
  • Pro Co Sound 2 Year Limited Warranty
