20 Hz - 20 kHz, +/- .25% at -15 dBv output
-3 dB at approximately 140 kHz
<.03% 20 Hz - 20 kHz at -30 dBv output
<.1% 30 Hz - 20 kHz at -15 dBv output
<.25% 20 Hz - 20 kHz at -15 dBv output
<-13 degrees at 20 kHz (ref. 1.0 kHz)
<2.4 microseconds (2.0 kHz square wave, 10%-90%)
<2.5 dB at 1.0 kHz
>570 Ohms at 1.0 kHz
>570 Ohms at 10kHz
Nominal source impedance is 150 Ohms
<255 Ohms at 1.0 KHz
<270 Ohms at 10 kHz
Nominal output impedance is 1.0 KOhms
0 dBv at 20 Hz
4 dBv at 30 Hz
8 dBv at 50 Hz
MICROPHONE INPUT : Phoenix COMBICON plug-in screw connector accepts signals from low-impedance (150 Ohms nominal) microphones or similar sources. Input impedance (with 1.0 KOhms loads on DIRECT and ISO OUTS) is approximately 333 Ohms .
DIRECT OUTPUT : Phoenix COMBICON plug-in screw connector wired in parallel with MIC IN provides signal to feed mixer input
ISOLATED OUTPUTS : Phoenix COMBICON plug-in screw connectors provide floating transformer isolated low-impedance outputs to feed mixer inputs. Recommended load impedances: 1.0 KOhms
GND/LIFTS : GND position connects pin 1 of MIC IN/DIRECT OUT to pin 1 of ISO OUTS. LIFT position floats" ISO OUTS. Used to reduce hum and buzz by eliminating ground loops and providing proper grounding for various Conditions
48 IN/OUT: 2-pole Phoenix COMBICON plug-in screw connectors provide input and loop-through output for external phantom power supply
4.75 x 19 x 1.75" / 12.06 x 48.26 x 4.44cm
3.60lbs / 1.63kg

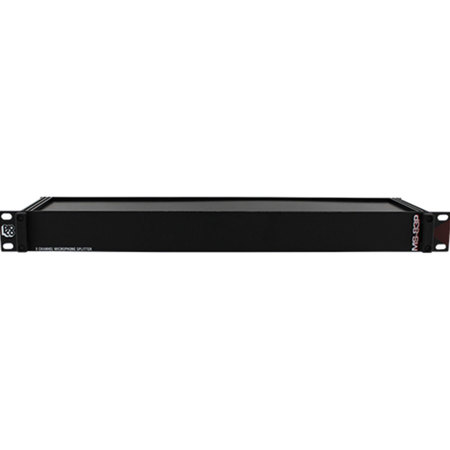

It's time to introduce the Pro Co Sound MS83P, an 8 Channel 3 Way Rack Mount Mic Splitter, designed to enhance your audio experience. This high-performance device splits signals from eight low-impedance microphones into three distinct outputs, allowing for simultaneous feeding of three microphone preamplifiers from a single source.
The MS83P stands out with its unique phantom power buss feature, which facilitates the powering of condenser microphones from an external power supply. This eliminates the fear of transients due to the interruption of phantom power, a common issue when using the console power supply.
Primarily used in large sound reinforcement systems, the MS83P ensures that your P.A. system microphones can also feed a stage monitor system and a broadcast or remote recording mixer. In such intricate systems, grounding issues can lead to noise and shock hazards. However, the MS83P's transformer isolation minimizes interference from EMI/RFI and ground loops, ensuring a clean, clear sound.
The MS83P is equipped with Phoenix COMBICON plug-in screw connectors for MIC IN, DIRECT OUT, and ISO OUT 1 and 2, simplifying the hookup process. The Pro Co MBT-2 transformer allows the MS83P to provide a floating, low-impedance output with a wide, flat frequency response, ultra-low distortion, and minimal ringing or overshoot.
Housed in a rugged 16 gauge steel and aluminum "Uni box" construction enclosure, the MS83P is finished in a durable black texture powder coat finish with black anodized aluminum side channels. The Lexan front and back panel overlays feature easy-to-read control graphics.
Inside, the specially designed transformers combine superb audio quality with unsurpassed noise rejection. The MS83P can be mounted in any standard 19" (482.6mm) rack, and its top-quality connectors and switches provide trouble-free service even in challenging environments such as remote broadcast and recording operations.
In summary, the Pro Co Sound MS83P 8 Channel 3 Way Rack Mount Mic Splitter is a versatile and reliable solution for your audio splitting needs, offering top-quality audio performance and isolation in a conveniently packaged, expandable system.
