Promise Technology Pegasus M4 4-Bay Thunderbolt 3/USB 3.1 Gen 2 Array, Diskless
See all Promise Technology items
New Arrival

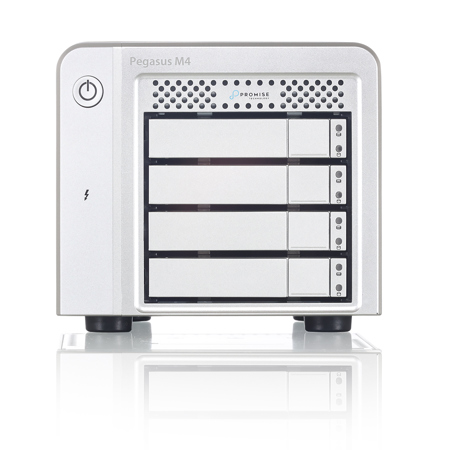

Promise Technology Pegasus M4 4-Bay Thunderbolt 3/USB 3.1 Gen 2 RAID Array, Diskless

SKU: PRPGM4XXXTB MFR: PGM4XXXTB3XXXU
Be the first to review this itemAsk a Question
$1,469.00
OR
$123/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience rapid data transfers with Thunderbolt 3, perfect for creative professionals.
  • Maximize your storage with a 4-bay RAID array, ensuring data safety and accessibility.
  • Enjoy versatile connectivity with both Thunderbolt 3 and USB 3.1 Gen 2 options.
  • Keep your workflow seamless with hot-swappable drives, minimizing downtime.
  • Achieve optimal performance and reliability for your critical projects with Promise Technology.
  • Manage your data effortlessly across macOS, Windows, and Linux operating systems.
See More Product Details
New Item?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Promise Technology Pegasus M4 Specifications

General

General

Jump to...

  • Form Factor

    4-Bay / Hardware RAID / Enclosure

  • Drive Support

    2.5" SATA3 SSD, 2TB/4TB

  • Processor

    Integrated SAS ROC (Raid-On-Chip)

  • Memory

    1GB DDR3 1866 ECC on board

  • Expansion

    Dual Thunderbolt ports use for daisy chain

  • Host Interface

    Thunderbolt 40Gbps (Port A and B) or USB 3.1 Gen 2 10Gbps (Port A only)

  • Thunderbolt Ports

    Dual Thunderbolt ports, one for host connection, one for downstream daisy chain

  • Port Type

    USB Type C

  • Country of Origin

    Taiwan

RAID & Features

Jump to...

  • RAID Level

    RAID 0, 1, 5, 6, 10, JBOD

  • Hot Spare

    Yes

  • Max LUNs

    128

  • Hot Swap

    Yes

Software

Jump to...

  • Supported OS

    macOS/Windows, Driver and Management Tool. Linux (driver only)

  • Management Tool

    PROMISE Utility Ro

  • Product Specific

    Intelligent Cooling/Acoustic control, Drive SMART health Polling

Power

Jump to...

  • AC Input

    100-240V auto-ranging, 50-60Hz AC

  • Power Supply

    120W

Environment

Jump to...

  • Temperature Range

    Operating: 41 Degree - 95 Degree F (5 Degree - 35 Degree C)
    Non-operating: -40 Degree - 158 Degree F (-40 Degree - 70 Degree C)

  • Humidity

    Operating: 10% - 95% non-condensing , Storage: 5% - 95% non-condensing

  • Regulatory/Safety

    EMC: FCC, CE , Safety: cTUVus, CB

  • Green Certificate

    Erp/Eup, ROHS, WEEE

Physical

Jump to...

  • Color

    White

  • Dimensions (H x W x D)

    4.21 x 5 x 6.57" (107 x 127 x 167mm)

  • Weight

    4.19 lbs (1.9kg)

Other

Jump to...

  • UPC Code

    704118188727

About Promise Technology Pegasus M4

Mobile High-performance
The Pegasus M4 combines the robust Promise RAID engine - renowned for stability and high performance, with the high throughput of Thunderbolt. Pegasus M4 is housed in a compact four-bay enclosure utilizing pre-installed enterprise-level high endurance SSD. The M4 is a perfect fit for on-the-go creative media professionals.

Perfect Match for Mac Studio
Pegasus M4 is perfectly matched with Mac Studio, M1/M2 CPU, MacOS 12 and MacOS 13 with DEXT driver and Intel x86.

4K/8K Editing
An all-SSD 2TB/4TB array means high-performance / low latency 4K/8K ingest/playback postproduction workflow - a must-have for rich media professionals. Pegasus M4 maximizes SSD speed with Enterprise-level RAID data protection; delivering over 2,000 MB/sec with low latency.

Enterprise SSD
Pre-installed enterprise-level high endurance, high performance and low latency SSD.

Promise Technology Pegasus M4 Features

  • Weight 4.19 lbs (1.9kg): Compact, portable, and lightweight
  • 4K/8K Editing: High performing external storage for 4k/8K video editing, playback, and transcoding
  • Compatible with Mac Studio: Compatible with the latest operating systems, including Mac Studio
  • Creative professionals: Perfect for creative professionals on-the-go

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience rapid data transfers with Thunderbolt 3, perfect for creative professionals.
  • Maximize your storage with a 4-bay RAID array, ensuring data safety and accessibility.
  • Enjoy versatile connectivity with both Thunderbolt 3 and USB 3.1 Gen 2 options.
  • Keep your workflow seamless with hot-swappable drives, minimizing downtime.
  • Achieve optimal performance and reliability for your critical projects with Promise Technology.
  • Manage your data effortlessly across macOS, Windows, and Linux operating systems.

What's in the box:

  • Promise Technology Pegasus M4 4-Bay Thunderbolt 3/USB 3.1 Gen 2 RAID Array (Diskless)
  • Thunderbolt 3/USB Cable
  • AC Power Cable
  • User Manual
  • Promise Technology 3 Year Limited Warranty
