18% Off

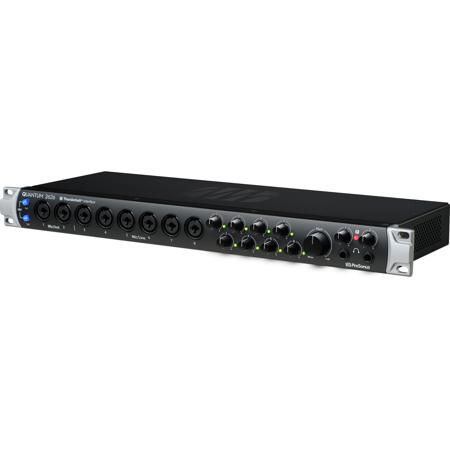

PreSonus Quantum 2626 26x26 Thunderbolt 3 Audio Interface

SKU: PRQUAN2626 MFR: 2777600102
Earn VIP Reward Points

Key Features

  • Experience pristine audio quality with this 26x26 Thunderbolt 3 audio interface.
  • Achieve ultra-low latency for seamless recording and monitoring in your studio setup.
  • Expand your studio with versatile connectivity options, including ADAT and S/PDIF I/O.
  • Enjoy high-resolution audio up to 192 kHz, capturing every nuance of your performance.
  • Create professional recordings with dynamic mic preamps and +48V phantom power.
  • Seamless software compatibility ensures smooth integration with your favorite DAW.
See More Product Details

Product Options

FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?JOHN C : The Quantum drivers. Also plenty of outputs for surround mixes.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

PreSonus Quantum 2626 Specifications

System Requirements

System Requirements

Jump to...
  • Mac

    Mac OS X 10.11.6 64-bit or later
    Intel Core i5 or better
    4 GB RAM (8 GB or more recommended)

  • Windows

    Windows 10 64-bit or later
    Intel Core i5 or better
    4 GB RAM (8 GB or more recommended)

  • Mac and Windows Systems

    Thunderbolt 1.0, 2.0, or 3.0 port
    Internet connection (required for Studio One Activation and Content download)
    Internal or external 7200 RPM storage drive highly recommended
    30 GB hard disk space
    Monitor with 1366x768 resolution

Microphone Preamp

Jump to...
  • Type

    XLR Female (via Combo), Balanced

  • Maximum Input Level

    +10 dBu (Balanced, min. gain)

  • Gain Control Range

    60 dB

  • Frequency Response

    20 Hz to 20 kHz ( +/-0.15 dB, unity gain, 48 kHz)

  • Dynamic Range

    > 110 dB (A-wtd, min. gain)

  • Total Harmonic Distortion

    < 0.005% (1 kHz, min. gain)

  • EIN

    < -131 dBu (max gain, 40 Ohm, 22 kHz BW, A-wtd)

  • Input Impedance

    1.6 k Ohm

  • Phantom Power

    +48V, > 8 mA per input

Instrument Inputs

Jump to...
  • Type

    1/4" TS Female (via Combo), Unbalanced

  • Maximum Input Level

    +15 dBu (Unbalanced, min. gain)

  • Gain Control Range

    60 dB

  • Frequency Response

    20 Hz to 20 kHz ( +/-0.2 dB, unity gain, 48 kHz)

  • Dynamic Range

    > 106 dB (A-wtd, min. gain)

  • Total Harmonic Distortion

    < 0.005% (1kHz, min. gain)

  • Input Impedance

    > 1 M Ohm

Line Inputs

Jump to...
  • Type

    1/4" TRS Female (via Combo), Balanced

  • Maximum Input Level

    + 18 dBu (Balanced, min. gain)

  • Frequency Response

    20 Hz to 20 kHz ( +/-0.05 dB, unity gain, 48 kHz)

  • Dynamic Range

    > 118 dB (A-wtd, min. gain)

  • Total Harmonic Distortion

    < 0.005% (1 kHz, min. gain)

  • Input Impedance

    10 k Ohm

Main and Line Outputs

Jump to...
  • Type

    1/4" TRS Female, impedance balanced, DC Coupled (Line Outputs only)

  • Maximum Output Level

    +18 dBu (Balanced)

  • Frequency Response

    20 Hz to 20 kHz ( +/-0.05 dB, unity gain, 48 kHz)

  • Dynamic Range

    > 118 dB (A-wtd)

  • Total Harmonic Distortion

    < 0.0035% (1 kHz, +4 dBu)

  • Output Impedance

    51 Ohm

Headphone Outputs

Jump to...
  • Type

    1/4" TRS Female, Stereo, Unbalanced, x2

  • Maximum Output Level

    175 mW/channel (56 Ohm load)

  • Frequency Response

    20 Hz to 20 kHz ( +/-0.5 dB, 48 kHz)

  • Dynamic Range

    > 110 dB (A-wtd)

  • Total Harmonic Distortion

    < 0.03% (1 kHz)

  • Headphone Impedance (working range)

    16 Ohm to 300 Ohm

Crosstalk

Jump to...
  • Input to Input

    < -110 dB

  • Output to Output

    < -115 dB

  • Input to Output

    < -120 dB

Signal Level LEDs

Jump to...
  • Clip

    -0.5 dBFS

  • Signal

    -50 dBFS

Digital Audio

Jump to...
  • Connection Type

    Thunderbolt 3 (Thunderbolt 1 and 2 compatible)

  • ADC Dynamic Range

    115 dB (A-wtd)

  • DAC Dynamic Range

    115 dB (A-wtd)

  • Bit Depth

    24 bits

  • Internally Supported Sample Rates

    44.1, 48, 88.2, 96, 176.4, 192 kHz

  • Jitter

    < 70 ps RMS (20 Hz - 20 kHz)

  • Jitter Attenuation

    > 60 dB (1 ns in => 1 ps out)

Physical

Jump to...
  • Power

    12 VDC, 5A, external power supply

  • Dimensions (H x D x W)

    1.75 x 7 x 19" (44.4 x 177.8 x 482.6mm)

  • Weight

    6 lb (2.72kg)

  • UPC Code

    673454006739

Related Articles & Videos

NAMM 2020: Presonus Unveils New ioStaion 24c & Quantum 2626 Audio Interfaces

NAMM 2020: Presonus Unveils New ioStaion 24c & Quantum 2626 Audio Interfaces

To kick off the new year the right way, Presonus has announced the release of two new incredible audio interfaces to the world at NAMM 2020: the ioStation 24c and Quantum 2626. Read more

9 Accessories for PreSonus Quantum 2626 26x26 Thunderbolt 3 Audio Interface

  • All Accessories (9)
  • Microphones & Audio (6)
  • Headphones (3)

About PreSonus Quantum 2626

PreSonus 26x26 Thunderbolt 3 Audio Interface.

Speed. Clarity. Quality.

PreSonus Quantum 2626 is the fastest and best-sounding interface around, thanks to the jaw-dropping speed of Thunderbolt™ 3, 8 premium PreSonus XMAX analog mic preamps, and pristine ADA converters.

Speed. Clarity. Quality.

The World's Fastest Interface.

With a round-trip latency of less than 1 ms, using the Thunderbolt™ 3 bus; record and monitor through your favorite plug-ins in real time at up to 24-bit/192 kHz.

The World's Fastest Interface.

For professional audio recording and production, the Quantum 2626 26x26 Thunderbolt 3 Audio Interface stands out with its high-quality, advanced features and versatile functionality. This high-resolution 192kHz interface delivers superior sound quality, making it a top choice for professionals in the music and sound industry.

Boasting an ultra-low latency of less than 1 ms, this audio interface is renowned for its speed, earning it the title of "fastest audio interface on the planet" by Sound on Sound magazine. Its high-definition digital conversion and ultra-transparent analog XMAX mic preamp design ensure your audio always sounds its best, whether you're recording with or without real-time plug-ins.

The Quantum 2626 audio interface was engineered with a singular goal: to deliver blazing-fast speed without compromising on sonic quality. Its proprietary Thunderbolt driver was developed from scratch to provide ultra-low-latency performance while maximizing efficiency. The cutting-edge 24-bit, 192 kHz converters with 115 dB of dynamic range and superior low-jitter clocking, coupled with our ultra-transparent, pure analog XMAX preamps, result in superb audio quality with the lowest round-trip latency of any audio interface available.

This audio interface operates at up to 192 kHz for ultra-high-definition mixing and recording. High-quality converters on every input and output provide 115 dB of dynamic range to capture complex musical harmonics smoothly and naturally with no audible distortion. The lauded XMAX Class A analog microphone preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound, capturing every breath, transient, and detail in your recordings.

The Quantum 2626 features a wide range of input and output options, including 1/4" phone, BNC word clock, fiber optic, MIDI, RCA, Thunderbolt 3, and XLR, making it versatile and suitable for a variety of applications. It also includes the Studio Magic Plug-in Suite, adding a wealth of fresh virtual instruments and effects to your recording environment.

With its impressive speed, stunning sound quality, and expandability, the Quantum 2626 26x26 Thunderbolt 3 Audio Interface is an ideal recording solution for any studio size. It streamlines your recording process, helping you create better music, faster.

PreSonus Quantum 2626 Features

  • General Features
  • 26x26 Thunderbolt 3 ultra-low-latency audio interface
  • <1 ms roundtrip latency; record direct to DAW with your favorite plug-ins engaged
  • 24-Bit/192kHz Operation with high-quality 115 dB A/D/A converters
  • Studio One Artist and Studio Magic plug-in bundle included
  • Flexible Connectivity Features
  • Simultaneous I/O up to 26 inputs / 26 outputs (at 44.1 or 48 kHz)
  • 8 pristine XMAX preamps
  • 2 Instrument Inputs
  • 8 balanced line inputs
  • Dual headphone outputs with independent level control
  • Balanced stereo main outputs with independent level control
  • 8 DC Coupled balanced line outputs
  • 2 preamp direct outputs with returns to insert outboard gear
  • Main Output Level Control
  • Balanced Stereo Main Output (TRS)
  • Eight Balanced Line Outputs (TRS (outs 1 & 2 share a DAC with the main output))
  • Two Preamp Outputs (channels 1 & 2)
  • Two Line Returns (channels 1 & 2)
  • ADAT Optical/Dual SMUX inputs/outputs: 16x16 channels at 44.1 or 48 kHz; 8x8 channels at 88.2 or 96 kHz
  • Stereo S/PDIF coaxial input and output
  • Digitalia Features
  • Thunderbolt 3 high-speed bus
  • 24-bit resolution and up to 192 kHz sampling rate
  • BNC word clock input and output with low-jitter clocking
  • MIDI I/O
  • Physical Features
  • Road-rugged construction with all-metal chassis and metal knobs
  • 1U rack-mountable
  • 12 VDC external power supply (included)

Product Documents

User Manual

Key Features

  • Experience pristine audio quality with this 26x26 Thunderbolt 3 audio interface.
  • Achieve ultra-low latency for seamless recording and monitoring in your studio setup.
  • Expand your studio with versatile connectivity options, including ADAT and S/PDIF I/O.
  • Enjoy high-resolution audio up to 192 kHz, capturing every nuance of your performance.
  • Create professional recordings with dynamic mic preamps and +48V phantom power.
  • Seamless software compatibility ensures smooth integration with your favorite DAW.

What's in the box:

  • Quantum 2626 26x26 Thunderbolt 3 Audio Interface
  • 12 VDC External Power Supply
  • PreSonus 1 Year Warranty
