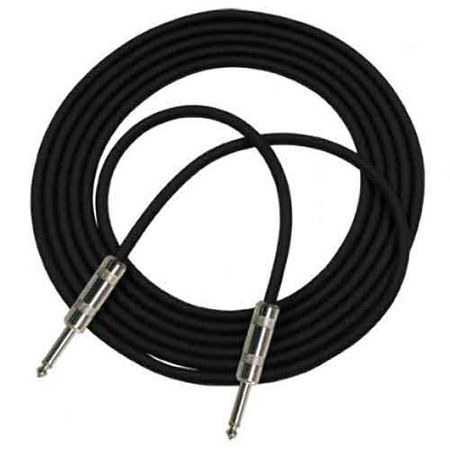

Pro Co Sound SEG-15 15' StageMASTER 24 AWG Instrument Cable, Straight 1/4" Phone Plugs

SKU: PRSEG15 MFR: SEG-15
$6.67
$17.04
Save: $10.37 (61%)
Earn VIP Reward Points

Key Features

  • Experience superior signal clarity with this Pro Co Sound instrument cable, 15 feet long.
  • Enjoy durable performance with a 24 AWG shielded cable, designed for low noise.
  • This StageMASTER cable's straight 1/4" phone plugs ensure secure connections every time.
  • Bare copper conductors provide excellent conductivity for pristine audio quality.
  • Use this instrument cable for guitars, keyboards, and other pro audio equipment.
  • Minimize interference and maximize signal integrity with our high-quality shielding.
See More Product Details
Calculate Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Pro Co Sound SEG-15 Specifications

  • Cable Length

    15' / 4.57m

  • Wire

    CS-INST.K 1-Conductor, Shielded

  • Conductor Gauge

    24 AWG / 20mm2

  • Stranding: No. Strands X AWG

    7x 32 / 7x .254mm2

  • Conductor Material

    Bare Annealed Copper

  • Connector

    Straight 1/4" phone plugs on each end

  • Insulation

    .030" / 0.762mm

  • Insulation Material

    Polypropylene

  • Insulation Diameter

    .084 +/-.002" / 2.13 +/-.051mm

  • Shield

    Composite Conductive Vinyl and Copper Serve
    Inner layer:
    Material: Semi-conductive PVC
    Wall Thickness: .010" (.254 mm)
    Diameter: .104" (2.64 mm)
    Outer Layer:
    Material: Bare Annealed Copper Serve

  • Shield Coverage

    0.5

  • Jacket Material

    Matte Polyvinyl Chloride

  • Jacket Wall Thickness

    0.060" / 1.62mm

  • Outer Diameter

    0.235"+/- .005 / 5.97 +/-.127mm

  • Capacitance @ 1kHz

    30pf/ft / 98 pf/m

  • Impedance @1 MHz

    70Ohms

  • Velocity Of Propagation

    0.66

  • Nominal Conductor Resistance @20 ½C

    24 Ohms/kft / 79 Ohms/km

  • UPC Code

    765811609599

About Pro Co Sound SEG-15

Over the years, the Pro Co Sound SEG-15 15' StageMASTER 24 AWG Instrument Cable, equipped with Straight 1/4" Phone Plugs, has become a trusted choice for musicians and sound engineers alike. This high-quality instrument cable is meticulously hand-soldered, ensuring a robust and reliable connection that stands up to the rigors of stage and studio use.

Constructed with top-tier metal 1/4" connectors, this cable guarantees a secure, noise-free connection between your musical instruments and audio equipment. The cable's 24 AWG (American Wire Gauge) specification indicates a thick, heavy-duty wire that resists breakage and signal loss, ensuring your sound stays clear and true.

The Pro Co Sound SEG-15 StageMASTER Instrument Cable is not just durable, but it's also designed to minimize noise interference. The low-noise cable technology incorporated into its design helps to eliminate any unwanted hums or buzzes, allowing your music to shine through with clarity and precision.

Whether you're a professional musician setting up for a concert or a sound engineer working in a recording studio, the Pro Co Sound SEG-15 15' StageMASTER 24 AWG Instrument Cable with Straight 1/4" Phone Plugs is an essential tool for delivering high-quality, dependable sound.

Pro Co Sound SEG-15 Features

  • Quiet, Durable and Dependable CS-INST1.K 1-conductor Shielded Audio Cable
  • Extremely Low-Noise Cable
  • Hand-Soldered with Top Quality Metal 1/4" Connectors

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience superior signal clarity with this Pro Co Sound instrument cable, 15 feet long.
  • Enjoy durable performance with a 24 AWG shielded cable, designed for low noise.
  • This StageMASTER cable's straight 1/4" phone plugs ensure secure connections every time.
  • Bare copper conductors provide excellent conductivity for pristine audio quality.
  • Use this instrument cable for guitars, keyboards, and other pro audio equipment.
  • Minimize interference and maximize signal integrity with our high-quality shielding.

What's in the box:

  • Pro Co Sound SEG-15 15' StageMASTER 24 AWG Instrument Cable
  • Pro Co Sound 1 Year Limited Warranty
