Review Summary
18' / 5.48m
CS-INST.K 1-Conductor, Shielded
24 AWG / 20mm2
7x 32 / 7x .254mm2
Bare Annealed Copper
Straight 1/4" phone plugs on each end
.030" / 0.762mm
Polypropylene
.084 +/-.002" / 2.13 +/-.051mm
Composite Conductive Vinyl and Copper Serve
Inner layer:
Material: Semi-conductive PVC
Wall Thickness: .010" (.254 mm)
Diameter: .104" (2.64 mm)
Outer Layer:
Material: Bare Annealed Copper Serve
0.5
Matte Polyvinyl Chloride
0.060" / 1.62mm
0.235"+/- .005 / 5.97 +/-.127mm
30pf/ft / 98 pf/m
70Ohms
0.66
24 Ohms/kft / 79 Ohms/km
00703272081905

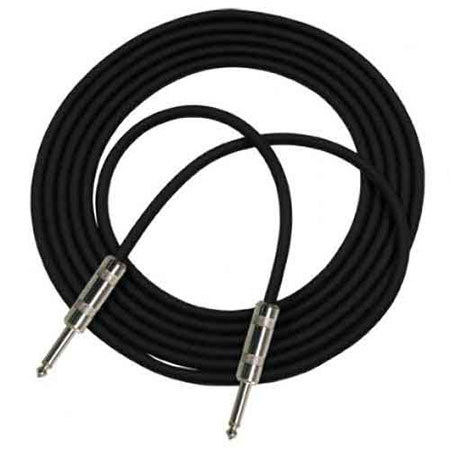

The Pro Co Sound SEG-18 18' StageMASTER 24 AWG Instrument Cable (Straight 1/4" Phone Plugs) is designed to be quiet, durable and dependable. It is hand-soldered to perfection using top quality metal 1/4" connectors and extremely low-noise cable.
