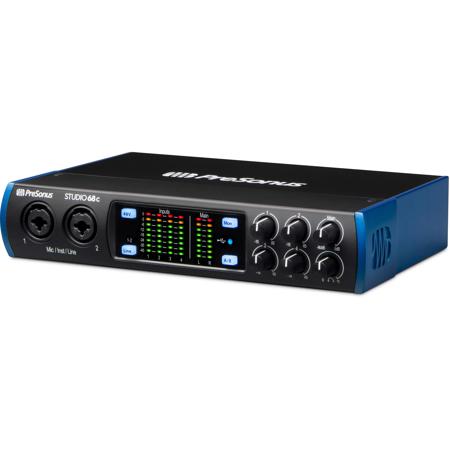

PreSonus Studio 68c 6x6 Portable Ultra-High Definition USB Type-C Audio/MIDI Interface with XMAX Preamps and Studio One Artist Recording/Production Software (Mac & Win)

SKU: PRSST68C

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

PreSonus Studio 68c Specifications

System Requirements

System Requirements

Jump to...
  • Computer System Requirements

    Mac:
    Mac OS X 10.8.5 64-bit or later
    Intel i-series 2 GHz multicore processor (or AMD equivalent) or faster
    4GB RAM (8GB or more recommended)

    Windows:
    Windows 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
    Intel i-series 2 GHz multicore processor (or AMD equivalent) or faster
    4GB RAM (8GB or more recommended)

  • Computer System Requirements (Cont.)

    Mac and Windows Systems:
    USB-C or USB-A 2.0 port
    32GB hard disk space
    PreSonus Universal Control 2.0 or higher
    Monitor with 1366x768 resolution (high-dpi monitor recommended)
    Multitouch-enabled monitor required for touch operation

General

Jump to...
  • Sample Rates

    44.1, 48, 88.2, 96, 176.4, or 192 kHz

  • Converter Resolution

    24 bit

  • Converter Dynamic Range

    114 dB

Microphone Inputs

Jump to...
  • Maximum Level

    +16 dBu (balanced, min gain)

  • Gain Range

    80 dB

  • Frequency Response

    20 Hz - 20 kHz (+/-0.15 dB, min gain, 48 kHz)

  • Dynamic Range

    114 dB (A-wtd, min gain)

  • THD + N

    0.007% (1 kHz, -1 dBFS, min gain)

  • EIN

    -130 dBu (max gain, 150Ohms, A-wtd)

  • Input Impedance

    1.6 kOhms

  • Phantom Power

    +48 VDC (10 mA per channel)

Line Inputs

Jump to...
  • Maximum Level

    +22 dBu (balanced, min gain)

  • Gain Range

    40 dB

  • Frequency Response

    20 Hz - 20 kHz (+/-0.15 dB, min gain, 48 kHz)

  • Dynamic Range

    113.9 dB (A-wtd, min gain)

  • THD + N

    0.007% (1 kHz, -1 dBFS, min gain)

  • Input Impedance

    10 kOhms

Instrument Inputs

Jump to...
  • Maximum Level

    +15 dBu (unbalanced, min gain)

  • Gain Range

    80 dB

  • Frequency Response

    20 Hz - 20 kHz (+/-0.1 dB, 48 kHz, min gain)

  • Dynamic Range

    114.7 dB (A-wtd, min gain)

  • THD + N

    0.012% (1 kHz, -1 dBFS, min gain)

  • Input Impedance

    1 MOhms

Line Outputs (Mains)

Jump to...
  • Type

    1/4" TRS Female, DC Coupled

  • Maximum Level

    +18 dBu (balanced)

  • Frequency Response

    20Hz - 20kHz (+/-0.2dB, unity gain, 48 kHz)

  • Dynamic Range

    109 dB (A-wtd)

  • THD + N

    0.001% (1 kHz, -1 dBFS)

Line Outputs (3/4)

Jump to...
  • Type

    1/4" TRS Female, DC coupled

  • Maximum Level

    +18 dBu (balanced)

  • Frequency Response

    20 Hz - 20 kHz (+/- 0.2 dB, unity gain, 48 kHz)

  • Dynamic Range

    109 dB (A-wtd)

  • THD + N

    0.0015% (1 kHz, -1 dBFS)

Headphone Outputs

Jump to...
  • Maximum Power

    150 mW/channel (56Ohms load)

  • Frequency Response

    20 Hz - 20 kHz (+/-0.2 dB, 56Ohms load, 48 kHz)

  • Dynamic Range

    107 dB (A-wtd, 56Ohms load)

  • THD + N

    0.002% (1 kHz, -1 dBFS, no load)

  • Impedance Working Range

    32Ohms to 300Ohms

Software

Jump to...
  • Included Software

    Studio One Artist music production software
    Studio Magic Plug-in Suite

Dimensions and Weight

Jump to...
  • Dimensions (HxWxD)

    1.75 x 9 x 5.5" (4.45 x 22.86 x 13.97cm)

  • Weight

    2.4 lbs (1.09kg)

  • UPC Code

    673454007972

9 Accessories for PreSonus Studio 68c 6x6 Portable Ultra-High Definition USB Type-C Audio/MIDI Interface with XMAX Preamps and Studio One Artist Recording/Production Software (Mac & Win)

  • All Accessories (9)
  • Microphones & Audio (6)
  • Headphones (3)

About PreSonus Studio 68c

Professional quality for small and mid-sized studios
An excellent choice for small bands, producers and small and mid-sized studios, the Studio 68c 6-in, 6-out, USB-C audio interface records at up to 192 kHz. You get two mic/line/instrument and two mic/line inputs, all with PreSonus XMAX mic preamps, plus DC-coupled line outputs and MIDI I/O. A complete, all-in-one recording studio, the Studio 68c comes with PreSonus' award-winning Studio One Artist music production software for macOS and Windows and is backward compatible with USB 2.0 and 3.0 connections.

Input/Output
• Simultaneous I/O up to 6 inputs/6 outputs (4x4 at 192 kHz)
• 2 mic/instrument/line inputs with XMAX Class A mic preamps
• 2 mic/line inputs with XMAX Class A mic preamps
• 2 balanced 1/4" TRS main outputs
• DC coupled for sending control voltages
• 2 balanced 1/4" TRS line outputs for monitor mixing
• DC coupled for sending control voltages
• 1 stereo headphone output
• MIDI In/Out
• Stereo S/PDIF digital I/O

Meters, Controls and Features
• Direct monitoring
• Cue mix A/B (for headphone output)
• Front-panel level controls for main outputs
• True +48V phantom power for condenser microphones (global)
• 6 ladder-style LED level meters (4 input, 2 main output)

Integrated Software
• Studio One Artist
• Studio Magic Plug-in Suite

Digital
• USB-C port (USB 2.0)
• 24-bit resolution
• 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates

Physical
• Road-rugged construction with all-metal chassis and metal knobs

World-class recording software included
Seamlessly integrated with the included PreSonus Studio One Artist music production software, the Studio 68c interface works with virtually all macOS and Windows recording software. Easy to learn, Studio One enables you to compose, record and produce without getting distracted by the tools. Need a new loop or sample for your latest production? Studio One lets you shop, audition and purchase new content right from your production environment.

Take the tour
The 6-in, 6-out Studio 68c audio interface features USB-C computer connectivity and includes 2 combo mic/instrument/line inputs and 2 combo mic/line inputs with +48V phantom power for condenser mics, plus S/PDIF digital I/O. All four 1/4-inch TRS, line-level outputs are DC coupled, enabling them to send control voltages. A Cue Mix A/B function lets you toggle between two mixes while monitoring through headphones-perfect for DJs and to listen in on a performer's monitor mix. The Studio 68c's built-in MIDI interface enables connection to a keyboard, sound module or control surface.

Superior sound
The Studio 68c operates at up to 192 kHz for ultra-high-definition recording and mixing. High-quality converters on every input and output and PreSonus' professional-grade XMAX mic preamps deliver incredibly high headroom, deep lows, smooth highs and a rich overall sound.

Designed for the studio. Built for the road
Whether you need a high-quality audio interface for DJing, are a veteran producer or both, the Studio 68c will give you the ultra-high-def sound and versatile connectivity you need to make state-of-the-art recordings and perform them live. While it's a perfect companion for any recording software, the Studio 68c and included Studio One Artist provide you with a complete, affordable, mobile recording studio.

Includes Studio Magic Plug-in Suite
This suite of plug-ins adds a wealth of fresh virtual instruments and effects to Studio One. Cherry-picked from the first names in virtual instruments and effects, each plug-in brings a different flavor of practical magic to your songs. These plug-ins aren't gimmicky one-trick ponies - these are real-deal workhorses that you'll rely on for countless mixes.

PreSonus Studio 68c Features

  • 6x6 USB-C audio interface with MIDI (4x4 at 192 kHz)
  • 24-bit resolution; 44.1, 48, 88.2, 96, 176.4, and 192 kHz sampling rates
  • 2 mic/instrument/line inputs with XMAX Class A mic preamps
  • 2 mic/line inputs with XMAX Class A mic preamps
  • +48V phantom power (global)
  • 2 DC coupled, balanced, 1/4" TRS line outputs for monitor mixing
  • 2 DC coupled, balanced, 1/4" TRS main outputs with front-panel level control
  • 6 ladder-style LED level meters (4 input, 2 main output)
  • Stereo headphone output with Cue Mix A/B
  • Direct monitoring
  • MIDI I/O
  • USB-C to USB-C and USB-C to USB-A cables included
  • Studio One Artist and Studio Magic Plug-in Suite included

Key Features

  • 6x6 USB-C audio interface with MIDI (4x4 at 192 kHz)
  • 24-bit resolution; 44.1, 48, 88.2, 96, 176.4, and 192 kHz sampling rates
  • 2 mic/instrument/line inputs with XMAX Class A mic preamps
  • 2 mic/line inputs with XMAX Class A mic preamps
  • +48V phantom power (global)
  • 2 DC coupled, balanced, 1/4" TRS line outputs for monitor mixing

What's in the box:

  • PreSonus Studio 68c 6x6 Portable Ultra-High Definition USB Type-C Audio/MIDI Interface
  • 3.3' USB Type-C Cable
  • 3.3' USB Type-A to USB Type-C Cable
  • Breakout Cable
  • PreSonus 1 Year Limited Warranty
