The All-in-one Storage Appliance For Rich Media
Ideal for multi-user collaboration to ingest, edit, stream and process rich media. This is a true "solution in a box" RAID storage subsystem, with an integrated metadata appliance and embedded file system for big data, along with a NAS Gateway.
Scale out high capacity and high performance

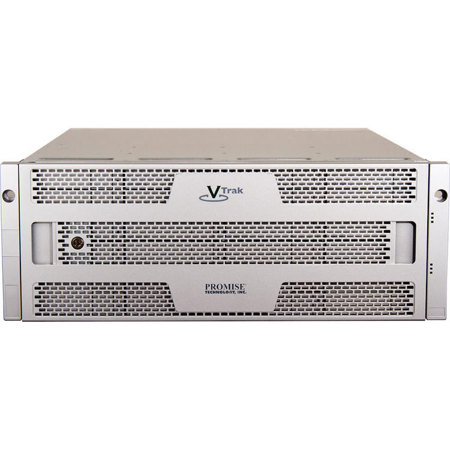

The VTrak A3800 shared SAN appliance is ideal for multi-user collaboration, especially when it comes to rich media. The VTrakFS file system is integrated with metadata controllers and VTrak primary storage in a single box, which enables higher performance and workload productivity, while offering easier workflow management.
NAS Gateway for massive client access
The NAS Gateway enables hundreds of clients in the LAN network to access the highly scalable Fibre Channel SAN appliance via 10Gb Ethernet. While the NAS Gateway contains a file sharing protocol and file system management, the key benefit is the VTrak A3800 SAN can scale to petabytes while still appearing as a single NAS folder interface! This eliminates the need to reconfigure clients, unlike traditional NAS environments where costly, additional storage is required.
Simple and fast: a great combination
VTrak A-Class is optimized for high performance, high bandwidth, rich media applications requiring large block sequential IOPs. And because it's an "all-in-one" metadata appliance, RAID storage subsystem and file system VTrakFS, it's much less complicated that competing solutions.
Scalable, reliable and cost-efficient
With A-Class you can "pay as you grow" from 32TB to over 7PB for long-term storage investment protection. Additionally, VTrak x30 is the only Apple-qualified enterprise SAN subsystem, with high-availability dual controllers, hot-swappable modular disk array and a 3 year warranty. The A-Class can save 30-40% on rack space and help lower energy costs compared to non-integrated multi-vendor solutions.
Optimized for video-centric environments
The Promise VTrakFS file system is optimized for leveraging a 8Gb FC interface for large file data ingesting, streaming or processing between a SAN and its clients - unlike traditional NAS file systems. Data is directly transferred between the SAN appliance and clients over the SAN FC network. This means higher bandwidth performance and lower latency data transfers, perfect for Media & Entertainment, HPC applications and other video-centric environments.
Video storage needs are massive. VTrak is the solution!
Store massive amounts of data required by media-centric and HPC environments. Scale across multiple RAID storage subsystems, thus increasing capacity without sacrificing performance.
• Supports 1024 RAID Logical Drives to make up the volumes
• JBODs can be added to increase the storage space
• RAID heads can be added as Storage Nodes to dynamically increase the storage space as well as increase the number of FC counts, thereby scaling performance
• All this can be done online, without interrupting the clients
Supersized file system for big data
VTrak A-Class virtualizes storage to create a single name space, shared storage volume
• Each VTrakFS consists of a Metadata LUN MDL and data LUNs DL
• MDL contains information about file location, size, access times, etc
• The VTrak A Class head unit manages directing each client the correct file info over 1Gb Ethernet, but each client has full speed access to actual data via 8Gb Fibre Channel
