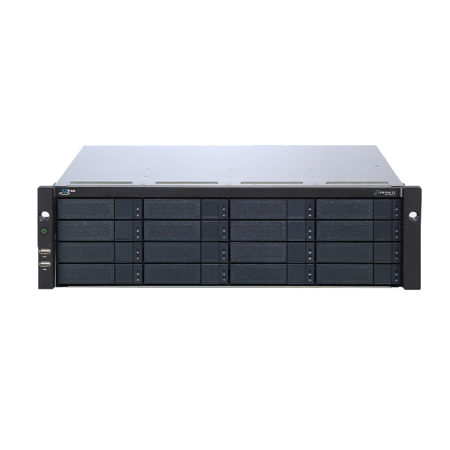

Promise Technology VTrak N1616 16-Bay Rackmount NAS Enclosure SSD + HDD 12TB SSD + 180TB HDD 10G SFP+

SKU: PRVTN11X1218 MFR: VTN16161X1218U
Earn VIP Reward Points

Key Features

  • Ensure data security with RAID 0, 1, 5, 6, 10, 50, 60, protecting your valuable files.
  • Experience fast performance with 6000 MB/s read speeds, enhancing productivity for your team.
  • Simplify setup with WebPAM Insight, making network attached storage management a breeze.
  • Access your files remotely via CIFS/NFS/FTP/WebDAV, ensuring seamless collaboration on projects.
  • Rely on the reliable backup capabilities for peace of mind knowing your data is always safe.
  • Maximize storage capacity with up to 16 bays, perfect for growing business data needs.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Promise Technology VTrak N1616 16-Bay Rackmount NAS Enclosure Specifications

General

General

Jump to...
  • Available Capacities

    128TB (16x8TB)
    224TB (16x14TB)
    288TB (16x18TB)
    12TB (6x2TB) + 80TB (10x8TB)
    12TB (6x2TB) + 140TB (10x14TB)
    12TB (6x2TB) + 180TB (10x18TB)

  • Available Drive Types

    HDD, SSD + HDD

  • Available Interface

    10G Base-T, 10G SFP+, 25G SFP28

  • Form Factor

    3U

  • Drive Support

    3.5" & 2.5" (88.9mm & 63.5mm) SATA 6Gb/s HDD, U.2 NVMe SSD

  • Processor

    Intel CPU i7-8700. 3.2GHz
    12MB Cache.65W 6 Cores

  • Memory

    Default 64GB (Maximum: 128GB)

  • Max HDDs

    16

  • Memory Slot

    4x Long-DIMM DDR4

  • Drive Bays

    16x 3.5" (88.9mm)

  • Boost

    PROMISE TierBoost
    (U.2 NVMe/SSD/HDD Tiering)

  • RAID Level

    RAID 0, 1, 5, 6, 10, 50, 60

  • Hot Swap

    Yes

Software

Jump to...
  • Supported OS

    Windows 10 and macOS 10.15 above

  • Management Tool

    WebPAM Insight

Shared Storage Features

Jump to...
  • Network Protocol

    CIFS / NFS / FTP / WebDAV

  • Max Storage Capacity

    18TB x 16

  • Concurrent CIFS Session

    256

  • Throughput

    With 10 SSD TierBoost
    10G Base-T
    Read: 6000 MB/s
    Write: 3000 MB/s

    10G SFP+
    Read: 6000 MB/s
    Write: 3000 MB/s

    25G SFP28
    Read: 6000 MB/s
    Write: 3000 MB/s

Environment

Jump to...
  • Temperature Range

    Operating: 41 Degree - 95 Degree F (5 Degree - 35 Degree C)
    Non-operating: -40 Degree - 140 Degree F (-40 Degree - 60 Degree C)

  • Acoustic Noise Levels

    Level 10: 39.7db (with cable cover)
    Level 10: 44db (w/o cable cover)

Physical

Jump to...
  • Gigabit (RJ45)

    2

  • LAN Port

    10G Base-T: 8-Port / 10G SFP+: 8-Port /
    25G SFP28: 4-Port

  • USB Port

    USB2.0 x 2 (Front) & USB3.2 x 4 (Back)

  • Graphic Port

    1x HDMI; 1x VGA

  • Serial Port

    Yes

  • AC Input

    100 - 240V AC (550Wx2), 47 - 63Hz

  • Power Consumption

    110V, Power Consumption: 306W
    230V, Power Consumption: 296W

  • Fan

    System fan: 4500RPM.12V

  • Dimensions

    5.1 x 17.5 x 19.8" (131 x 447 x 503mm)

  • Weight

    74.9 lbs (34kg) (with HDD)

  • UPC Code

    704118183111

About Promise Technology VTrak N1616 16-Bay Rackmount NAS Enclosure

High Performance, High Availability
The new eight 10G-port VTrak N1616 will improve your creative media work-flow efficiency with new performance enhancing features.

• Edit 4K/8K Video Post-Production
• Boost: TierBoost
• Up to 6000MB/s Performance

Performance
TierBoost available on the VTrak N1616, is a data tier management service that automatically classifies data by frequency of access. "Hot" data is migrated to the fastest tier (NVMe SSD), while the "Cold" data is placed in lower priority tier (SATA HDD), a middle tier contains "Warm" data with frequency access in between the other tiers.

Data Protection is Essential
Protection against data loss is ensured by the famous PromiseRAID engine featured in the entire VTrak line of network storage systems. Additional backup mechanisms to cloud or remote storage are easily managed using the web-based management interface.

Manageability
Simplified administration is another win for VTrak N-Series. The system is shipped ready to use with a Shared Storage pool that includes an administrator-controlled Team folder setup for immediate sharing. The software for both administrator and client is very easy to use, with an intuitive GUI. The default setup requires very little administration yet still gives complete access control to the administrator. More advanced system administration is available using the web-based management user interface.

Features

Shared Storage Optimized for Post-Production Workflow and Team Sharing
Perfect for collaborative workflow features on Adobe Premiere Pro, Final Cut Pro X, Autodesk Flame, etc.

Performance
VTrak N1616 with TierBoost: up to 6GB/3GB Read/Write throughput, options of 8 x 10G Base-T, 8 x 10G SFP+ or 4 x 25G SFP28.

TierBoost
Automatic or manual configuration options are used to classify digital assets for efficient use over the network. Most frequently used files remain in most rapid tier.

Easy to Use
Intuitive and simple user interface for data administration and rich media team access. Simplicity and low cost of Shared storage.

Data Protection
The robust PROMISE RAID engine is known for stability and high performance. Easy backup to Shared Storage and Cloud.

Promise Technology VTrak N1616 16-Bay Rackmount NAS Enclosure Features

  • Shared Storage Optimized for Post-Production Workflow and Team Sharing
  • TierBoost: up to 6GB/3GB Read/Write throughput
  • Automatic or manual options are used to classify digital assets for efficient use over network
  • Intuitive and simple user interface for data administration and rich media team access
  • Robust PROMISE RAID engine is known for stability and high performance

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Ensure data security with RAID 0, 1, 5, 6, 10, 50, 60, protecting your valuable files.
  • Experience fast performance with 6000 MB/s read speeds, enhancing productivity for your team.
  • Simplify setup with WebPAM Insight, making network attached storage management a breeze.
  • Access your files remotely via CIFS/NFS/FTP/WebDAV, ensuring seamless collaboration on projects.
  • Rely on the reliable backup capabilities for peace of mind knowing your data is always safe.
  • Maximize storage capacity with up to 16 bays, perfect for growing business data needs.

What's in the box:

  • Promise Technology VTrak N1616 16-Bay Rackmount NAS Enclosure
  • Power Cord
  • Promise Technology 3 Year Limited Warranty
