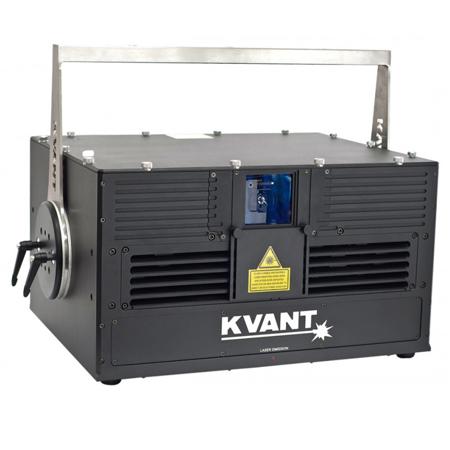

ProX KVANT ATOM 12 Pure Diode Laser System for Large Indoor Venues

SKU: PRXATMTOUR12 MFR: ATOM 12
Earn VIP Reward Points

Key Features

  • Unleash vibrant visuals with the ProX ATOM 12 laser system, perfect for large indoor venues.
  • Experience unparalleled laser graphics with 12W of pure diode power, ideal for any event.
  • Control your light show via Ethernet, ArtNet (DMX), or ILDA for ultimate DJ lighting control.
  • Enjoy peace of mind with built-in laser safety features, fully compliant with EN & FDA standards.
  • Create stunning displays with red, green & blue laser modules, offering up to 100kHz modulation.
  • Rugged IP54 rated design ensures the ProX ATOM 12 endures at both indoor and outdoor events.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

ProX KVANT ATOM 12 Specifications

  • Type

    Full colour, pure diode white-light laser system

  • Guaranteed Optical Output

    12W

  • Suitable For

    indoor and outdoor events, laser graphics

  • System Control

    Moncha.NET or Pangolin FB4

  • Control Signal I/O

    Ethernet, ArtNet (DMX), ILDA, SD card

  • Safety

    Fully complies with the latest EN 60825-1 and FDA regulations

  • Module(s)

    Red: 3W/637nm laser module KVANT
    Green: 3.8W/520nm laser module KVANT
    Blue: 6W/445nm laser module KVANT

  • Beam Diameter

    5mm

  • Beam Divergence

    <1mrad

  • Modulation

    Analog, up to 100kHz

  • Power Requirements

    100-230V/50Hz

  • Consumption

    Max. 390VA

  • Operation Temperature

    50-95 Degree F (10-35 Degree C)

  • Ingress Protection Rating

    IP54

  • Integrated Laser Safety Features

    Keyed interlock
    Emission delay
    Magnetic interlock
    Scan-fail safety
    V-RAD 506 mechanical shutter
    Reaction time <20ms
    Adjustable aperture masking plate.

  • Dimensions

    15 x 13 x 10" (38.1 x 33.02 x 25.4cm)

  • Weight

    62 lb (28kg)

About ProX KVANT ATOM 12

Overwhelm your audience with the advanced and powerful KVANT ATOM 12 Pure Diode Laser System, specifically engineered for large indoor venues and capable of accommodating smaller outdoor events for up to approximately 8,000 attendees. This durable and versatile laser system is constructed with robustness in mind, making it an ideal choice for touring events.

Enhance your laser display safety with the optional integration of the Professional Audience Scanning System (PASS), a feature that sets this system apart in the market. Each KVANT ATOM 12 system comes with a Quality Control Certificate, providing recorded power output values of the red, green, and blue laser modules, all of which are meticulously measured during the final quality control check to ensure the highest level of performance.

The KVANT ATOM 12 system boasts digital control settings, including X & Y sizes and scan-fail safety settings, all adjusted using the inbuilt interface for ease and convenience. This high-quality system also offers scanning system protection and a daisy chain of emergency STOP signals for multiple system "one-hit" operation, providing an extra layer of safety during use.

Please note, due to the Advanced Optical Correction technology utilized in our laser systems, the optical power of each color within the installed laser module(s) may slightly differ from the specification of the respective laser module(s). This is a testament to our commitment to providing a unique, high-quality lighting experience for every event.

ProX KVANT ATOM 12 Features

  • Advanced and powerful Pure Diode laser system, ideal for large indoor venues and smaller outdoor events
  • Robust and durable design, perfect for touring events
  • Optional integration of the Professional Audience Scanning System (PASS) for enhanced laser display safety
  • Comes with a Quality Control Certificate, documenting power output values of red, green, and blue laser modules
  • Features digital control settings, including X & Y sizes and scan-fail safety settings, adjusted using an inbuilt interface
  • Offers scanning system protection and a daisy chain of emergency STOP signals for multiple system "one-hit" operation

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Unleash vibrant visuals with the ProX ATOM 12 laser system, perfect for large indoor venues.
  • Experience unparalleled laser graphics with 12W of pure diode power, ideal for any event.
  • Control your light show via Ethernet, ArtNet (DMX), or ILDA for ultimate DJ lighting control.
  • Enjoy peace of mind with built-in laser safety features, fully compliant with EN & FDA standards.
  • Create stunning displays with red, green & blue laser modules, offering up to 100kHz modulation.
  • Rugged IP54 rated design ensures the ProX ATOM 12 endures at both indoor and outdoor events.

What's in the box:

  • KVANT ATOM 12
  • Heavy Duty Case
  • Power Lead
  • 25m ILDA Signal Cable
  • E-STOP Remote with 25m Cable
  • Set of 4 Safety Keys
  • Interlock Connector
  • CD with PDF Manual
  • CD with Moncha.NET or FB4 Laser Control Software
  • ProX 1 Year Limited Warranty
