Questions & Answers

FAQ

What is the output of the KVANT ClubMAX 800 Pro Laser Light?

The KVANT ClubMAX 800 Pro Laser Light guarantees an output of 800mw. It delivers a stunning white balance with RED at 170mW/637nm, GREEN at 100mW/520nm, and BLUE at 650mW/445nm.

What is included in the KVANT ClubMAX 800 Pro Laser Light package?

The KVANT ClubMAX 800 Pro Laser Light package comes with an ILDA cable, an E-Stop System, an interlock, a key-switch, and a mechanical shutter.

What is the protection rating of the KVANT ClubMAX 800 Pro Laser Light?

The KVANT ClubMAX 800 Pro Laser Light has a protection rating of IP54, which can be upgraded upon request.

What scanning system does the KVANT ClubMAX 800 Pro Laser Light use?

The KVANT ClubMAX 800 Pro Laser Light utilizes the advanced ScannerMAX Compact-506 optical scanning system. This feature allows for rapid scan speeds and a maximum scan angle on both the X and Y axis.

Is the KVANT ClubMAX 800 Pro Laser Light compliant with international safety regulations?

Yes, the KVANT ClubMAX 800 Pro Laser Light is fully compliant with all US CDRH/FDA regulations, as well as European and other international standards.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

ProX KVANT ClubMAX 800 Specifications

  • Output Power

    800mW

  • Color Balance

    Red: 170mW/637nm
    Green: 100mW/520nm
    Blue: 650mW/445nm
    Inside of a full color, pure diode, KVANT laser module

  • Beam Diameter

    3.5mm

  • Divergence

    <1mrad

  • Modulation

    Analog, up to 50kHz

  • System Control

    ILDA (in and out)
    Recommended: Pangolin QuickShow, BEYOND, or LD2000

  • Power Requirements

    100-230V/50Hz

  • Power Consumption

    max. 250VA

  • Compliance

    Compliant with all US CDRH/FDA requirements and EU, Asia and Inta'l Regulations

  • Certification

    PASS Certified can be configured with Pangolina's PASS Technology, for audience scanning safety

  • Dimensions

    8.14 x 10.0 x 6.61" (207 x 255 x 168mm)

  • Weight

    13.2 lb (6kg)

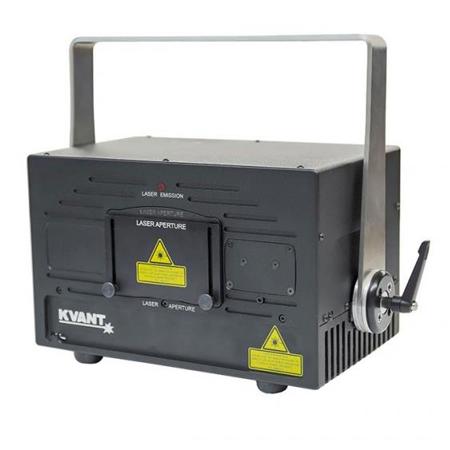

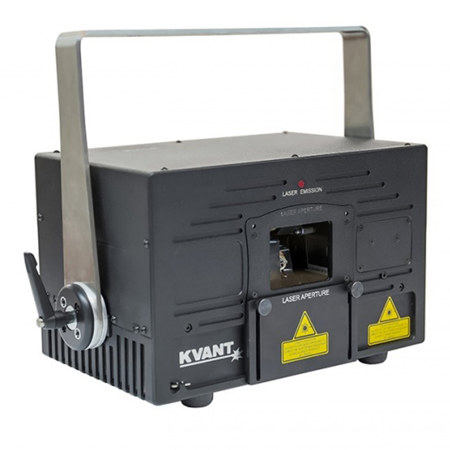

About ProX KVANT ClubMAX 800

Discover the KVANT ClubMAX 800 Pro Laser Light, a professional-grade laser light show system that combines cost-effectiveness with low maintenance. This compact projector is designed for easy transportation and mounting, making it an ideal choice for small to medium-sized indoor venues, touring events, and mobile entertainment applications.

The ClubMAX 800 Pro Laser Light guarantees an output of 800mw, delivering a visually stunning white balance with RED at 170mW/637nm, GREEN at 100mW/520nm, and BLUE at 650mW/445nm. It's equipped with pure diode modules safeguarded by LASORB, ensuring brighter, more vibrant colors and extended lifetimes.

This laser light system comes standard with the advanced ScannerMAX Compact-506 optical scanning system. This feature allows for rapid scan speeds of 35K @ 8 degrees optical, and a maximum scan angle of 60A degrees on both the X and Y axis. The result is impressive text, graphics, logos, and wide-angle beam effects.

The KVANT ClubMAX 800 Pro Laser Light package includes a complimentary ILDA cable, an E-Stop System, an interlock, a key-switch, and a mechanical shutter. It carries a protection rating of IP54, which can be upgraded upon request. This laser light system is fully compliant with all US CDRH/FDA regulations, as well as European and other international standards.

Additional features include power output adjustment for each color, X & Y axes invert, X & Y size and position, a scan-fail safety mode switch, scanning system protection, and a daisy chain of emergency STOP signal for multiple system one-hit operation. Experience the KVANT ClubMAX 800 Pro Laser Light, where professional quality meets exceptional value.

ProX KVANT ClubMAX 800 Features

  • Professional-grade laser light show system, perfect for small to medium venues and mobile entertainment
  • Guarantees an 800mw output with stunning white balance (RED: 170mW/637nm + GREEN: 100mW/520nm + BLUE: 650mW/445nm)
  • Equipped with pure diode modules protected by LASORB for vibrant colors and extended lifetimes
  • Features ScannerMAX Compact-506 optical scanning system for fast scan speeds and stunning visuals
  • Includes complimentary ILDA cable, E-Stop System, interlock, key-switch, and mechanical shutter
  • Fully compliant with US CDRH/FDA, European, and other international regulations for safety and quality

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Elevate your DJ set with the ProX ClubMAX 800 laser light's vibrant, full-color beams.
  • Experience superior laser show control with ILDA compatibility and fast analog modulation.
  • Enjoy peace of mind with PASS certification, ensuring audience scanning safety during events.
  • Create stunning visual effects with the ClubMAX 800's precise beam divergence under 1mrad.
  • This durable DJ lighting solution features robust construction and a ProX 1-year warranty.
  • Easily integrate this compact, powerful laser light into any DJ setup for dynamic shows.

What's in the box:

  • KVANT ClubMAX 800
  • Power Lead
  • 10m ILDA Signal Cable
  • E-STOP Remote with 10m Cable
  • Set of 4 Safety Keys
  • Interlock Connector
  • CD with PDF Manual
  • ProX 1 Year Limited Warranty
