ProX KVANT ClubMAX 2000 Specifications

  • Suitability

    indoor laser displays (atmospheric, abstract, text, animations)

  • System control

    ILDA (for Ethernet, ArtNet, DMX see Options below)

  • Compliant with

    EN 60825-1 (tested by T UV S UD), FDA

  • Guaranteed opt. output

    2000mW

  • Beam size

    5.2 x 4.5mm

  • Beam divergence

    0.58 (mrad) (full angle, averaged value)

  • Max. power consumption (VA)

    340

  • Operation temperature

    50 - 104 Degree F (10 - 40 Degree C)

  • HW features

    Power output adjustment for each color, X & Y axes invert, X & Y size and position, scan-fail safety mode selector, scanning system overload protection.

  • Laser safety features

    Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter (reaction time <20ms), adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button.

  • Dimensions (W x H x D)

    13.3 x 6.6 x 10.6" (339 x 168 x 270mm)

  • Weight

    18.7 lbs (8.5kg)

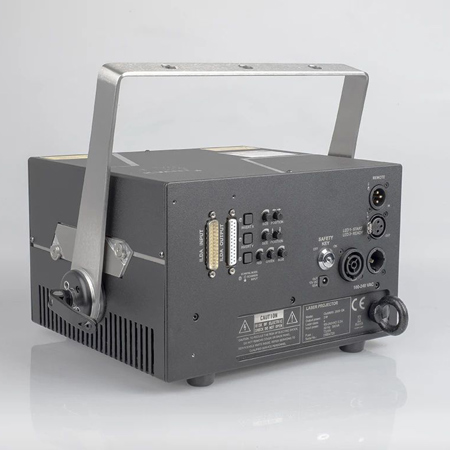

About ProX KVANT ClubMAX 2000

Over the years, thousands of Clubmax lasers found their customers all around the world. Clubmax systems have a great reputation and hold their price up well. What we offer today is the 3rd generation of our all-time bestseller that we crafted to perfection. Clubmax lasers are available in the range from 2 to 15W.

The Clubmax series lasers are a radically simple solution for anything from several thousand people raves to the smallest private clubs and cosy venues. Developed with regard to challenging clubbing environments, the design is optimised to allow for long maintenance intervals and to ensure a long life span of the system as a whole.

Clubmax 2000 is a cost-effective and low maintenance laser display system, with beam properties that make it very efficient for all small to mid-size indoor venues.

ProX KVANT ClubMAX 2000 Features

  • Battlefield tested chassis, housing and internal design are all robust and sturdy, making Clubmax an ideal laser system also for permanent installations, touring and hire
  • Ultra-low-divergence RGB laser source ensures high brightness at long projection distances. The premium quality laser source is manufactured by us and uses the latest semiconductor diode laser technology in conjunction with the most advanced beam shaping techniques
  • 40 Kpps scanning speed with default scannermax 506 scanner set; up to 60 Kpps with optional Saturn 1 scanners
  • A comprehensive range of adjustment controls at the rear panel
  • An easily accessible beam alignment mechanism - no need to take the lid off
  • Direct compatibility with discoscan 2.0 bracket, safetyscan lens bracket, 4-way masking plate and FB4-QS Quick Connect control interface
  • It can be factory fitted with a Single or Dual Optical Bench and PASS card
  • TUV certification

Key Features

  • A comprehensive range of adjustment controls at the rear panel
  • An easily accessible beam alignment mechanism - no need to take the lid off
  • It can be factory fitted with a Single or Dual Optical Bench and PASS card
  • TUV certification

What's in the box:

  • ProX KVANT ClubMAX 2000
  • 1.5m Power Lead
  • 10m ILDA Signal Cable
  • E-STOP Remote with 10m 3-Pin XLR Cable
  • Set of 4 Safety Keys
  • Interlock Connector
  • USB Memory Stick
  • User Manual
  • ProX 1 Year Limited Warranty
