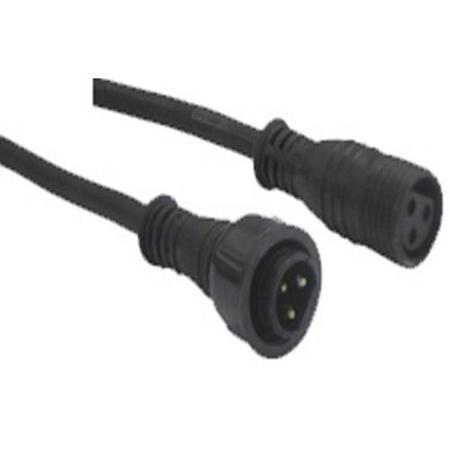

ProX XC-IPDMX-EX16 16' IP66 Outdoor DMX Extension Cable

SKU: PRXCPDMXEX16

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ProX XC-IPDMX-EX16 Specifications

  • Characteristic Impedance

    Nominal: 110 Ohms

  • Capacitance Conductor to Conductor

    Nominal: 12.8 pF/ft @ 1KHz

  • Cap Cond. To Other Cond. & Shield

    Nominal: 23 pF/ft @ 1KH z

  • Velocity of Propagation

    Nominal: 66%

  • Delay

    Nominal: 1.6 Nanoseconds per foot

  • Conductor DC Resistance

    Nominal: 24 Ohms/1000 ft @ 20 degrees C

  • Outer Shield DC Resistance

    Nominal: 3.4 Ohms/ 1000 ft @ 20 degrees C

  • Attenuation (dB/100 ft)

    Nominal: 0.6 (@ 1 MH z) dB/100 ft

  • Maximum Recommended Current

    2.1 Amps per conductor @ 25 Degrees C

  • Operating Temperature Range

    -22 to 167 Degree F (-30 to +75 Degrees C)

  • Fits

    Club, Wedding, Concert, Mobile DJ

About ProX XC-IPDMX-EX16

Enhance your outdoor lighting control with the ProX XC-IPDMX-EX16 16' IP66 Outdoor DMX Extension Cable. This high-quality, durable extension cable is designed to extend the reach of your DMX lighting system, offering you more versatility and convenience.

Crafted by ProX, a reputable brand known for its commitment to quality, this DMX extension cable delivers uncompromised signal power and precise data transmission, essential for optimal DMX control operations. The cable is constructed with DuoFoil and braided OFC Copper Compact shield, which effectively blocks noise and safeguards data transfer, ensuring reliable connections every time.

The ProX XC-IPDMX-EX16 is not just reliable but also flexible and designed for outdoor use. It boasts an IP66 rating, meaning it's protected against dust and water jets from any direction. This makes it an ideal choice for outdoor events or venues where weather conditions can be unpredictable.

This 16-foot extension cable is made of robust black PVC material and features a male XLR connector on one end and a female XLR connector on the other, making it compatible with a DMX controller or other lighting equipment that supports DMX control.

Please note that this DMX data transmission cable is not suitable for audio use, and conversely, audio cables are not suitable for DMX data use. Their specifications and characteristics differ substantially. Always choose the ProX XC-IPDMX-EX16 for reliable, high-quality DMX connections.

ProX XC-IPDMX-EX16 Features

  • Polyethylene insulation
  • Twisted Pair Data Cable
  • Polyethylene inner jacket
  • Duofoil (100% coverage)
  • Cotton plus a tinned copper braid shield (85% coverage)
  • PVC jacket for durability
  • Gold/Silver Plated Contacts
  • ProX IP66 Rated XLR Connectors
  • Excellent Durability and Superior Data Transfer
  • 20 AWG x 2 Oxygen-Free Copper (OFC) conductors
  • Extra Durable & Flexible Long Life Construction

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Get reliable DMX signal extension with this 16-foot IP66 outdoor DMX extension cable.
  • Ensure seamless lighting control at outdoor events using our durable DMX cable!
  • This ProX DMX cable provides a robust connection for clubs, weddings, and concerts.
  • Experience uninterrupted DMX signal transmission with superior shielding and build.
  • Extend your DMX lighting setup confidently; this cable is built for demanding use.
  • Enjoy peace of mind with a lifetime limited warranty on this ProX DMX extension cable.

What's in the box:

  • XC-IPDMX-EX16 16' IP66 Outdoor DMX Extension Cable
  • ProX Lifetime Limited Warranty
