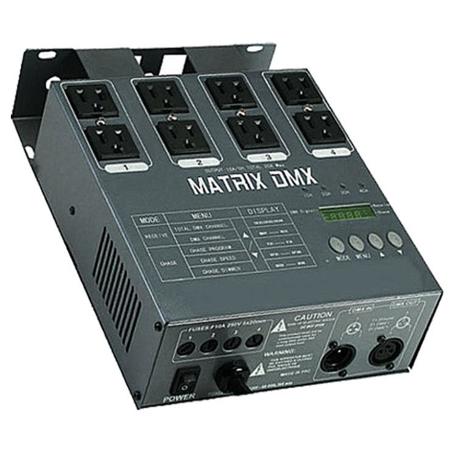

ProX X-860-DMX 4 Channel MATRIX PRO DMX Power Panel
See all ProX items

ProX X-860-DMX 4 Channel MATRIX PRO DMX Power Panel

SKU: PRXX860DMX

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ProX X-860-DMX Specifications

  • Number of channels

    4 channels

  • Protocol

    DMX 512

  • Voltage (V)

    120V 60Hz

  • Power

    Up to 600W per channel
    15Amp total load

About ProX X-860-DMX

The Dimmer pack supports the use of 1, 2, or 4-channels. This pack can serve as a stand-alone chaser or a DMX dimmer pack. It is designed for zero-crossing circuitry which protects against inductive loads. Each channel comes with two grounded 3-prong Edison sockets. The dimmer pack features 3 pin XLR female and male connectors for DMX compatibility. Each channel is Equipped with a 5A fuse and the maximum load per channel is 600W for a total load of 1800W at 120V. Please keep in mind that it is not recommended to operate this dimmer pack at maximum load continuously or for long periods of time.

ProX X-860-DMX Features

  • 3 pin XLR female and male connectors for DMX control
  • One, two or four channel configuration option
  • Dimming or switching setting of any channel in DMX or manual mode
  • Digital display for easy setting and control
  • Double output 110v grounded outlet per channel
  • 16 built in preset programs
  • Music mode with sound sensitivity knob
  • Full manual control over each channel in DMX or manual mode
  • AC 120V/230V 50-60Hz switch
  • Rope light connection output
  • On / off main power switch
  • External Fuse Holders

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 3 pin XLR female and male connectors for DMX control
  • One, two or four channel configuration option
  • Dimming or switching setting of any channel in DMX or manual mode
  • Digital display for easy setting and control
  • Double output 110v grounded outlet per channel
  • 16 built in preset programs

What's in the box:

  • X-860-DMX 4 Channel MATRIX PRO DMX Power Panel
  • ProX 1 Year Limited Warranty
