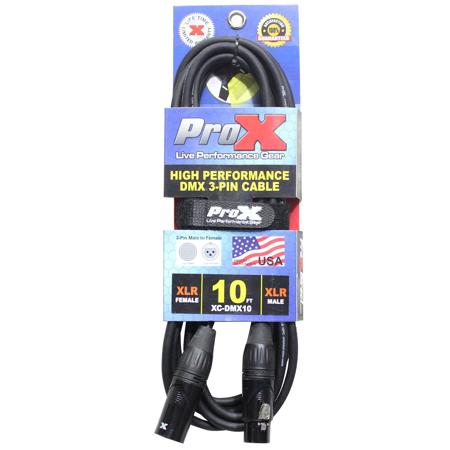

ProX XC-DMX10 10' 3-Pin DMX XLR3-M to XLR3-F High Performance Cable

SKU: PRXXCDMX10 MFR: XC-DMX10
$12.49
$24.99
Save: $12.5 (50%)
Earn VIP Reward Points

Key Features

  • ProX 10' DMX cable ensures reliable data transmission for your lighting setup.
  • Get superior sound quality with our high-performance 3-Pin XLR DMX signal cable.
  • This durable DMX lighting cable is built to withstand the rigors of live performances.
  • Easily connect your DMX lighting fixtures with this user-friendly, 10-foot cable.
  • Enjoy exceptional value with this ProX DMX cable, offering premium performance.
  • This portable and lightweight DMX cable is perfect for DJs and lighting professionals.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

ProX XC-DMX10 Specifications

  • Characteristic Impedance

    Nominal: 110 Ohms

  • Capacitance Conductor to Conductor

    Nominal: 12.8 pF/ft @ 1KHz

  • Cap Cond. to Other Cond. & Shield

    Nominal: 23 pF/ft @ 1KHz

  • Velocity of Propagation

    Nominal: 66%

  • Delay

    Nominal: 1.6 Nanoseconds per foot

  • Conductor DC Resistance

    Nominal: 24 Ohms/1000' @ 68 Degrees F (20 Degrees C)

  • Outer Shield DC Resistance

    Nominal: 3.4 Ohms/ 1000' @ 68 Degrees F (20 Degrees C)

  • Attenuation (dB/100')

    Nominal: 0.6 (@ 1 MH z) dB/100'

  • Maximum Recommended Current

    2.1 Amps per conductor @ 77 Degrees F (25 Degrees C)

  • Operating Temperature Range

    -86 Degrees F to + 167 F Degrees (-30 Degrees C to + 75 Degrees C)

  • Length

    10' (3m)

Models
ProX XC-DMX10 10' 3-Pin DMX XLR3-M to XLR3-F High Performance Cable
$12.49

$24.99

Save:$12.50 (50%)

Ships from Manufacturer

Usually ships within 1-2 Days

ProX XC-5PDMX03 3' 5-Pin DMX XLR5-M to XLR5-F High Performance Cable
$11.99

$23.99

Save:$12.00 (50%)

Ships from Manufacturer

Usually ships within 1-2 Days

ProX XCP-DMX25 25' 3-Pin DMX XLR3-M to XLR3-F Premium Data Cable
$12.99

$25.99

Save:$13.00 (50%)

Ships from Manufacturer

Usually ships within 1-2 Days

Accessory TypeCableCableCable

About ProX XC-DMX10

How can you ensure optimal signal transfer and precise data transmission for your DMX control operations The answer lies in the ProX XC-DMX10 High Performance Cable. This 10' 3-Pin DMX XLR3-M to XLR3-F cable is specifically designed for DMX connection applications, providing a reliable link between devices with male and female DMX outputs/inputs.

Constructed with 22AWG Oxygen-Free Copper (OFC) conductors, this cable guarantees maximum signal transfer, ensuring your signal remains unaltered. ProX cables, including this high-performance DMX cable, are crafted with an unwavering commitment to quality and performance. They are not just cables, but a shield that protects your signal integrity.

The ProX XC-DMX10 cable features DuoFoil and braided OFC Copper Compact shielding. This advanced technology effectively blocks noise and safeguards data transfer, ensuring uncompromised signal power.

Designed to withstand the rigors of professional use, this tour-grade DMX cable is resistant to bending and twisting. It's built to provide years of dependable service, outlasting other cables on the market.

The ProX XC-DMX10 cable also incorporates Complete Coil technology, which demands consistent weave tolerances to create precise and accurate data transmission. This critical design element significantly impacts performance, making this cable a must-have for reliable connections.

Please note, twisted pair DMX data transmission cables, like the ProX XC-DMX10, are not suitable for audio use. Similarly, audio cables are not suitable for DMX data use due to substantial differences in their specifications and characteristics. Always choose the correct cable for your needs to ensure reliable connections.

In summary, the ProX XC-DMX10 High Performance Cable is a professional-grade solution for your DMX connection applications, offering superior signal transfer, precise data transmission, and long-lasting durability.

ProX XC-DMX10 Features

  • Polyethylene insulation
  • Twisted Pair Data Cable
  • Polyethylene inner jacket
  • Duofoil (100% coverage)
  • Cotton plus a tinned copper braid shield (85% coverage)
  • PVC jacket for durability
  • Gold Plated Contacts
  • ProX Branded, All Metal XLR Connectors
  • Excellent Durability and Superior Data Transfer
  • 20 AWG x 2 Oxygen-Free Copper (OFC) conductors
  • Extra Durable & Flexible Long Life Construction

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • ProX 10' DMX cable ensures reliable data transmission for your lighting setup.
  • Get superior sound quality with our high-performance 3-Pin XLR DMX signal cable.
  • This durable DMX lighting cable is built to withstand the rigors of live performances.
  • Easily connect your DMX lighting fixtures with this user-friendly, 10-foot cable.
  • Enjoy exceptional value with this ProX DMX cable, offering premium performance.
  • This portable and lightweight DMX cable is perfect for DJs and lighting professionals.

What's in the box:

  • XC-DMX10 10' 3-Pin DMX XLR3-M to XLR3-F High Performance Cable
  • ProX Lifetime Limited Warranty
