ProX XT-AT04 16.4' Lift Line Array Frontal Loading Lifting Tower System, Max Load 440 lb, Black

FENIX Stage with 20 years of experience is the manufacturer of lifting towers in Valencia Spain, offers innovative high-end quality, reliable and efficient products to all customers worldwide. ProX Live Performance Gear is the exclusive distributor of Fenix Lifting Towers in the USA. The XT-AT04B meets the strict European standards. Certified to current standards [EC 89/392 EWG] [BGV C1, BGG 912]

XT-AT04B Rigging tower Frontal loading lifting tower allows to raise the load from the floor, avoiding any single effort and specially designed for a reliable lifting of Line Array Systems of up to 440 lbs to a maximum height of 16 Ft. This product is perfect to fly line array systems, trusses and LED screens. The compact design with castors gives the XT-AT04B Rigging tower easy handling and maneuverability, reducing storage space and it is the ideal solution for touring, rental and event production (concerts, events, trade fair stands, stage construction, fitting-out discos, theaters, broadcasting, TV, etc.).

These stacking trusses, manufactured with extruded aluminum (Alloy: EN-AW according to 6082 T6) and TIG welded (continuous cord for a maximum strength), are specially designed to be piled up, reducing storage space and making it easier to handle.

During lifting, the tower telescopic mechanism lift can stop safely at any of the PLS (Pin Locking System) positions. These pins take the load off the wire rope. The steel base provides great stability when the adjustable screw-jacks are well balanced and the bubble level on the base provides accurate leveling.

Features

Leg Base Safety Lock
The automatic leg locking system allows the outriggers to anchor easily in the correct place, doing away with old and uncomfortable safety pin rings.

Polyamide Plates
The plates are made of Polyamide. This raw material offers more resistance than metal and it is wear free. The Polyamide plates can rest against any surface without damaging it, carpet, tiles, etc.

Safety Pins
Safety pins stop the load from falling down. You can select different tower heights safely by raising the bars equally, this distributes the load evenly from the main bar to the last bar. Ultimately this prolongs the towers lifetime and increases its stability.

Circular Bubbel Leve
The location of the bubble level at the base helps you to stabilize the tower easily and accurately.

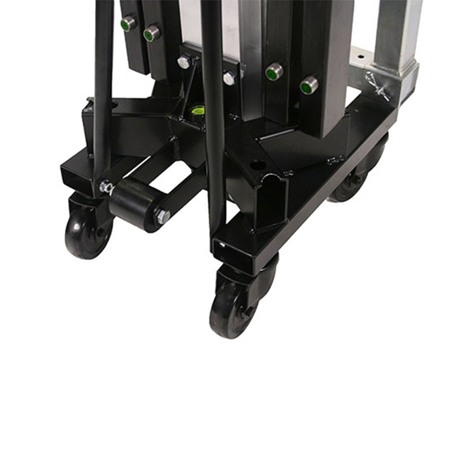

Reinforced Base
All our towers use a reinforced iron base that supports heavy loads and high heights.

Ring
A 'Ring' is included on each side of the AT Series towers to enable additional support cables or straps to be tied directly to the tower, increasing tower safety.

Transport Handle
Included on the AT Series towers to move the tower vertically and horizontally. This also protects the cable and the winch during transportation.

Roller System
Included on the AT Series towers to allow tranporting the tower horizontally.

Winch
Our winches are manufactured by industry leading companies. They are resistant and durable as well as oversized for additional safety and better cable pull.

Carriage Lock
Prevents the carriage from moving during transportation.

Safety Pendulum
All frontal loading lift towers include an internal safety system that automatically blocks the tower if a sudden drop is detected, e.g. if the cable broke or was cut.

Tower Safety Pins
Allow selecting different tower heights safely by raising the bars equally.
