ProX XTP-GS2023 20x23' Truss Ground Support System with Hoist for LED Screen Display Panel Video Fly Wall

SKU: PRXXTPGS2023 MFR: XTP-GS2023
Earn VIP Reward Points

Key Features

  • Achieve professional setups with this 20x23' ProX truss ground support system, great for displays.
  • Easily lift LED screens using the included manual chain stage hoist with a robust 30' chain.
  • Ensure stability with universal vertical tower truss bases featuring leveling jacks for safety.
  • Constructed from durable aluminum, each square truss segment offers reliable support for events.
  • Simplify setup with single tube hinge blocks, making your truss system versatile and adaptable.
  • Transport and position your display effortlessly using the ground support base on wheels design.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-11-04T13:11:56

Rated 1 out of 5

STILL HAVENT RECIEVED AFTER TWO MONTHS

Still haven?t received it !!! Going on two months !!!

Eddie O.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ProX XTP-GS2023 Specifications

General

General

Jump to...
  • Equipment Type

    Trussing Package

  • Segment Shape

    Square

  • Length

    23'

  • Color

    Silver

  • Material

    Aluminium

Physical Details

Jump to...
  • Dimensions

    9.84' Square Truss Segment: 11.42 x 11.42" (290.07 x 290.07mm)Ground Support Sleeve Block: 22.5 x 22.5 x 18.5" (571.5 x 571.5 x 469.9mm)Top Truss Section: 24 x 9.5 x 11.5" (609.6 x 241.3 x 292.1mm)3.28' Square Truss Segment: 11.42 x 11.42" (290.06 x 290.06mm)3' Outrigger Brace: 37.5 x 2 x 64" (952.5 x 50.8 x 1625.6mm)

  • Weight

    9.84' Square Truss Segment: 44 lbs (19.96kg) (Actual)Ground Support Sleeve Block: 77.3 lbs (35.06kg)Top Truss Section: 26.4 lbs (11.97kg)3.28' Square Truss Segment: 19 lbs (8.61kg)3' Outrigger Brace: 29 lbs (13.15kg)

  • UPC Code

    19372414322

Models
ProX XTP-GS2023 20x23' Truss Ground Support System with Hoist for LED Panel Wall
$8,999.99

$12,999.99

Save:$4,000.00 (31%)

Ships from Manufacturer

Usually ships within 1-2 Days

ProX XTP-GS3023 30x23' LED Panel Support System

SKU: PRXXTPGS3023

MFR: XTP-GS3023

$9,899.99

$13,999.99

Save:$4,100.00 (29%)

Ships from Manufacturer

Usually ships within 1-2 Days

ProX XTP-EX2323-11 Exhibition Module Stand Truss Package
$6,182.00

$9,273.00

Save:$3,091.00 (33%)

Ships from Manufacturer

Usually ships within 1-2 Days

Equipment TypeTrussing PackageTrussing PackageTrussing Package
Segment ShapeSquare--

About ProX XTP-GS2023

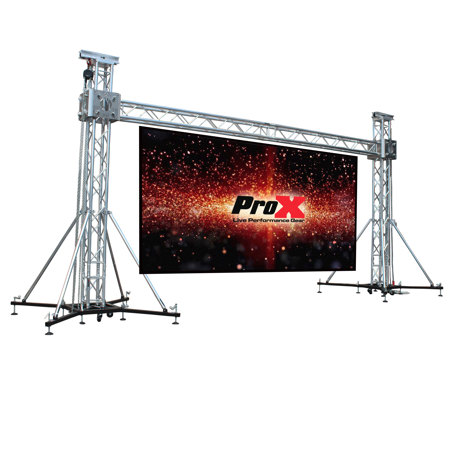

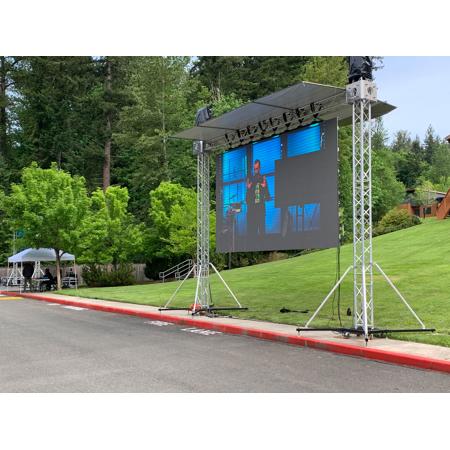

Experience the unparalleled support and versatility of the ProX XTP-GS2023 LED Panel Support System. This robust system, measuring 20'W x 23'H, is expertly crafted from heavy-duty Aluminum XT truss and modular ground support towers. It's designed to securely fly LED Screen Display Panel Video Walls, making it an ideal choice for both indoor and outdoor events.

The ProX XT-SQ Series Truss, a key component of this system, is a trusted name in the industry, renowned for its safety and performance. This rugged and durable trussing solution is perfect for live outdoor productions, nightclubs, and permanent installations. It's constructed with EN-AWT6 6082 Aluminum for maximum safety and strength.

This system also includes the GSBPACK3 Lift System, a 9.84' Square Truss Segment (XT-SQ984), and a 1T Manual Chain Stage Hoist with 30' Chain (XT-MCH1TX2-30FT). These components ensure high-frequency usage and higher loading, making it an ideal choice for rental, touring, and exhibition companies.

The ProX XTP-GS2023 also features a Ground Support Sleeve Block (XT-BLOCK-MK2) and a Top Truss Section (XT-TOPCM), both designed for F34 Series 12" Trussing. These elements add stability while expanding on limitless design configurations.

The system is completed with a Single Tube Hinge Block (XT-HINGE) and a Universal Vertical Tower Truss Ground Support Base on Wheels with Leveling Jacks (XT-GSB MK3). These components ensure easy assembly and disassembly, quick setups, and excellent fitment at every connection.

The ProX XTP-GS2023 LED Panel Support System is not just a trussing solution; it's a comprehensive package designed to make your live stages, theaters, nightclubs, church installations, mobile applications, trade shows, and retail applications stand out. Always remember to consult an engineer for complex designs. Experience the ProX difference today.

ProX XTP-GS2023 Features

  • 9.84' Square Truss Segment (XT-SQ984) Features
  • Manufactured to Exacting Specifications in our Own Factory!
  • Includes One Connecting Hardware Set of Four
  • Material: EN-AWT6 6082 Aluminum
  • TUV Certified Aluminum Welding
  • Always Consult an Engineer for Complex Designs!
  • 1T Manual Chain Stage Hoist with 30' Chain (XT-MCH1TX2-30FT) Features
  • Portable, lightweight hoist is durable and easy to operate
  • Full-forged drop steel swivel hooks with safety latch for a secure lift
  • Compact design and low headroom
  • Mechanical load brake for positive load control when lifting or spotting
  • Rugged hardened steel construction
  • Galvanized Grade 80 chain
  • Forged steel hooks swivel 360 Degree and have safety latches
  • Designed with a safety factor 4 times rated capacity
  • Meets ANSI/ASME standards
  • Ground Support Sleeve Block (XT-BLOCK-MK2) Features
  • Built to exacting specifications
  • Includes tapered shear pins with clips
  • Top Truss Section (XT-TOPCM) Features
  • Material: 10mm EN-AWT6 6082 Aluminum
  • Includes padded fabric storage and carrying bag
  • TUV Certified Manufacturing
  • Fits most manufacturers with F34 Conical Couplers
  • Single Tube Hinge Block (XT-HINGE) Features
  • In-house ProX Manufactured Truss
  • Built to exacting specifications
  • Compatible with most Conical Coupled trussing
  • Includes tapered shear pins with clips and 2 conical coupling

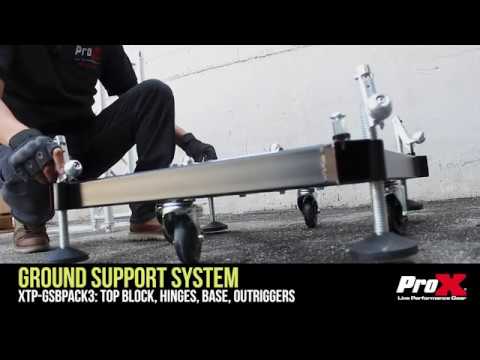

  • Universal Vertical Tower Truss Ground Support Base on Wheels with Leveling Jacks (XT-GSB MK3) Features
  • Tolerance Free Standard Conical F34 and F44 Connectors included
  • 12" Box truss Bolts not included
  • Black Painted Finish
  • Leveling Screws in Captive Nuts
  • 4x Heavy Duty Casters
  • Heavy-Duty Welded Steel Construction
  • Assembly Required
  • 3.28' Square Truss Segment (XT-SQ328) Features
  • Includes One Connecting Hardware Set
  • 3' Outrigger Brace (XT-GSOUTS3) Features
  • 2" Diameter Tube with Clamp and Bolted hinge
  • 64" Aluminum Assist Tube with Clamp
  • 36" Black Painted Steel Outrigger & Adjustable Foot

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve professional setups with this 20x23' ProX truss ground support system, great for displays.
  • Easily lift LED screens using the included manual chain stage hoist with a robust 30' chain.
  • Ensure stability with universal vertical tower truss bases featuring leveling jacks for safety.
  • Constructed from durable aluminum, each square truss segment offers reliable support for events.
  • Simplify setup with single tube hinge blocks, making your truss system versatile and adaptable.
  • Transport and position your display effortlessly using the ground support base on wheels design.

What's in the box:

  • 6x 9.84' Square Truss Segment (XT-SQ984)
  • 2x 1T Manual Chain Stage Hoist with 30' Chain (XT-MCH1TX2-30FT)
  • 2x Ground Support Sleeve Block (XT-BLOCK-MK2)
  • 2x Top Truss Section (XT-TOPCM)
  • 8x Single Tube Hinge Block (XT-HINGE)
  • 2x Universal Vertical Tower Truss Ground Support Base on Wheels with Leveling Jacks (XT-GSB MK3)
  • 2x 3.28' Square Truss Segment (XT-SQ328)
  • 8x 3' Outrigger Brace (XT-GSOUTS3)
  • (LED Wall Not Included)
  • ProX 1 Year Limited Warranty
