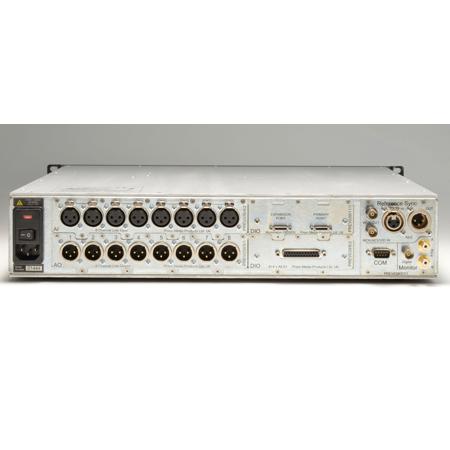

Prism Sound ADA-8XR Audio Interface with 8-Channel 8C-AD Input Module, 8C-DA Output Module, 8C-AES and 8C-PTHDX Pro Tools HDX I/O Module

SKU: PSAD8XRASPDX MFR: ADA-8XR-AES-PTHDX
Be the first to review this itemAsk a Question
$11,549.00
OR
$963/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience pristine audio quality with this Prism Sound digital audio interface.
  • Achieve ultra-low latency for seamless recording and mixing sessions using Pro Tools HDX.
  • Expand your studio's connectivity with versatile AES3 digital I/O module options.
  • Enjoy exceptional driver support for macOS and Windows, ensuring stable performance.
  • Built for reliability, this audio interface offers robust build quality for years of use.
  • Capture every nuance with 8-channel analog I/O, perfect for detailed sound design.
See More Product Details
Special Order?Estimated to Ship: 08/13/2025
Free Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Prism Sound ADA-8XR Specifications

ADA-8XR Audio Interface

ADA-8XR Audio Interface

Jump to...

  • Form Factor

    Rackmount

  • Channels of I/O

    None

  • Max Sample Rate/Resolution

    192 kHz / 24-Bit

  • Number of Mic Preamps

    None

  • Expansion Slots

    2x Analog I/O Slot
    2x Digital I/O Slot
    1x Utility Slot
    1x Internal DSP Slot

  • Analog Audio I/O

    1x Stereo RCA Balanced Output
    1x 1/4" TRS Headphone Output

  • Digital Audio I/O

    1x BNC Coaxial AES-3id / S/PDIF Output

  • Sync I/O

    1x BNC Video Sync/Word Clock Input
    1x BNC Word Clock Output
    1x XLR 3-Pin AES11 Input
    1x XLR 3-Pin AES11 Output

  • MIDI I/O

    None

  • Other I/O

    1x DE-9/DB-9 RS-232/RS-485 In/Out

  • Impedance

    RCA Outputs: 50 Ohms
    1/4" Outputs: 115 Ohms
    XLR Outputs: 110 Ohms
    BNC Sync Outputs: 75 Ohms
    XLR Mic Inputs: 110 Ohms
    BNC Sync Inputs: 75 Ohms

  • Dynamic Range

    RCA Outputs: 105 dB (-60 dBFS, 1 kHz)

  • THD+N

    RCA Outputs: -101 dB / 0.0009% (1 kHz, at -1 dBFS)

  • Channel Separation

    RCA Outputs: > 120 dB (1 kHz)

  • dBFS Reference Level

    +15 / +18 / +21 / +24 dBu = 0 dBFS (Selectable)

  • Sample Rates

    Up to 192 kHz

  • Bit Depths

    Up to 24-Bit

  • Clocking

    Accuracy: +/-25 ppm
    Jitter Suppression: > 60 dB (above 700 Hz)

  • OS Compatibility

    macOS
    Windows

  • AC Input Power

    90 to 125 VAC, 50 / 60 Hz
    180 to 250 VAC, 50 / 60 Hz

  • Power Consumption

    60W

  • Rackmount Size

    2 RU

  • Dimensions

    19 x 15.4 x 3.5" (483 x 390 x 88mm)

  • Weight

    16.5 lbs (7.5kg)

8C-AD 8-Channel Input Module

Jump to...

  • Inputs

    8x XLR 3-pin female (balanced)

  • Input Impedance

    21.005 kOhms

  • Input Range

    +5 to +24 dBu

  • Gain Accuracy

    +/-0.05 dB

  • CMRR

    60 Hz: < -100 dB
    1 kHz: < -90 dB
    20 Hz to 20 kHz: < -65 dB

  • Limiter

    Software selectable on/off

  • THD + N

    -105 dB (0.0006%) at 997 Hz, -1 dBFS

  • Dynamic Range

    112 dB at 997 Hz, -60 dBFS

  • Intermodulation Distortion (SMPTE)

    < -100 dB (60 Hz at -3 dBFS, 7 kHz at -12 dBFS)

  • Spurious

    Maximum Aharmonic Spurium: < -130 dBFS (997 Hz at -1 dBFS)

  • Frequency Response

    44.1 kHz: 5 Hz to 20.1 kHz (-0.05 dB), <1 Hz to 22 kHz (-3 dB)
    48 kHz: 5.5 Hz to 22.8 kHz (-0.05 dB), <1 Hz to 24 kHz (-3 dB)
    96 kHz: 6.1 Hz to 43.3 kHz (-0.05 dB), <1 Hz to 48 kHz (-3 dB)
    192 kHz: 6.2 Hz to 50.2 kHz (-0.05 dB), <1 Hz to 77.7 kHz (-3 dB)

  • Passband Ripple

    48/96 kHz: <0.015 dB

  • Inter-Channel Differential Phase

    <0.03 Degree

  • Channel Separation

    1 kHz: >125 dB
    20 Hz to 20 kHz: >117 dB

  • Latency

    44.1 kHz: 20 samples / 0.45 ms
    48 kHz: 20 samples / 0.42 ms
    96 kHz: 20 samples / 0.21 ms
    192 kHz: 20 samples / 0.10 ms

  • Dimensions

    7.9 x 7.1 x 1.2" (20 x 18 x 3cm)

  • Weight

    11.2 oz (317.5g)

8C-DA 8-Channel Output Module

Jump to...

  • Outputs

    8x XLR 3-pin male (balanced)

  • Output Impedance

    50 Ohms

  • Input Range

    +5 to +24 dBu in 1 dBu steps, trims in 0.05 dBu steps

  • Gain Accuracy

    +/-0.05 dB

  • Balance

    Output Balance: 54 dB

  • THD + N

    -102 dB (0.0007%) at 997 Hz, -1 dBFS

  • Dynamic Range

    108 dB at 997 Hz, -60 dBFS

  • Intermodulation Distortion (SMPTE)

    < -94 dB (60 Hz at -3 dBFS, 7 kHz at -12 dBFS)

  • Spurious

    Maximum Aharmonic Spurium: < -130 dBFS (997 Hz at -1 dBFS)

  • Frequency Response

    44.1 kHz: 5 Hz to 20.8 kHz (-0.05 dB), 1.4 Hz to 22 kHz (-3 dB)
    48 kHz: 5.1 Hz to 22.6 kHz (-0.05 dB), 1.4 Hz to 23.9 kHz (-3 dB)
    96 kHz: 5.1 Hz to 38.9 kHz (-0.05 dB), 1.4 Hz to 47.4 kHz (-3 dB)
    192 kHz: 5.2 Hz to 37.2 kHz (-0.05 dB), 1.4 Hz to 74.4 kHz (-3 dB)

  • Passband Ripple

    <0.005 dB

  • Inter-Channel Differential Phase

    <0.02 Degree

  • Channel Separation

    1 kHz: >115 dB
    20 Hz to 20 kHz: >110 dB

  • Latency

    44.1 kHz: 49.5 samples / 1.12 ms
    48 kHz: 49.5 samples / 1.03 ms
    96 kHz: 49.5 samples / 0.52 ms
    192 kHz: 49.5 samples / 0.26 ms

  • Dimensions

    7.9 x 7.1 x 1.2" (20 x 18 x 3cm)

  • Weight

    11.2 oz (317.5g)

8C-AES 8-Channel AES3 Digital I/O Module

Jump to...

  • I/O Connections

    1x DB25 female (transformer coupled)

  • Impedance

    AES3 Mode: 110 Ohms
    S/PDIF Mode: 75 Ohms

  • Output Signal Amplitude

    AES Mode: 3.2 V p-p (loaded)
    S/PDIF Mode: 0.5 V p-p (loaded)

  • Sample Rates

    Up to 192 kHz
    One-wire or two-wire (Split96) input and output modes are supported at 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz

  • Bit Depth

    16-bit, 20-bit, 24-bit

  • Channel Support

    Consumer (S/PDIF) or professional (AES3)

  • Jitter Tolerance

    Below 200 Hz: 15 UI p-p
    Above 8 kHz: 0.5 UI p-p x1 (UI = 163 ns at 48 kHz)

  • Latency

    44.1 kHz: 34 samples / 0.77 ms
    48 kHz: 34 samples / 0.71 ms
    96 kHz: 34 samples / 0.35 ms
    192 kHz: 34 samples / 0.18 ms

  • Dimensions

    4.3 x 6.7 x 1.6" (11 x 17 x 4cm)

  • Weight

    3.2 oz (90.7kg)

8C-PTHDX 8-Channel Pro Tools HDX I/O Mod

Jump to...

  • I/O Connections

    2 x DigiLink Mini

  • Sample Rates

    Up to 192 kHz

  • Dimensions

    4.3 x 6.7 x 1.6" (11 x 17 x 4cm)

  • Weight

    3.2 oz (90.7kg)

Other

Jump to...

  • UPC Code

    669014270832

About Prism Sound ADA-8XR

For professionals seeking an advanced and sophisticated audio interface, the ADA-8XR Audio Interface is a high-quality, innovative solution. This product is designed and engineered by the reputable Prism Sound, a brand synonymous with superior audio equipment. The ADA-8XR Audio Interface is a versatile tool, boasting a variety of input and output options, including an 8-Channel 8C-AD Input Module, 8C-DA Output Module, 8C-AES, and 8C-PTHDX Pro Tools HDX I/O Module.

The ADA-8XR Audio Interface is renowned for its ultra-detailed A/D and D/A conversion, providing a focused, uncolored sound that allows every nuance of a performance to be heard. Its modular design offers flexibility, accommodating either an 8 input/8 output, 16 input, or 16 output converter, with digital I/O cards for AES and Pro Tools HDX.

The ADA-8XR Audio Interface is not just an audio converter; it also serves as a master clock for your entire system, providing rock-solid stability and jitter rejection for crystal clear imaging. It supports different sample rates being sent and received simultaneously, making it a versatile choice for any audio setup.

This audio interface is perfect for a range of applications, from music and sound recording to mastering, broadcast, and post-production. Its clean and transparent conversion has made it a favorite in some of the world's most iconic recording facilities. Whether you're recording vocals, single instruments, drums, or an orchestra, or providing multiple outputs for external analogue summing, the ADA-8XR Audio Interface delivers superior results.

The ADA-8XR Audio Interface includes the 8C-AD 8-Channel Analogue Line Input Module, 8C-DA 8-Channel Analogue Line Output Module, 8C-AES 8-Channel AES3 Digital I/O Module with AES Breakout Loom, and 8C-PTHDX 8-Channel Pro Tools HDX I/O Module. Each module offers unique features and capabilities, providing you with a comprehensive audio solution that perfectly matches your requirements.

In conclusion, the ADA-8XR Audio Interface is a professional, high-quality, and innovative audio solution that offers versatility and superior performance. Its advanced features and capabilities make it a must-have for any professional audio or music production setting.

Prism Sound ADA-8XR Features

  • Modular Design for Flexible I/O Setups
  • Up to 24-Bit / 192 kHz Resolution
  • Versatile Clocking and Routing Options
  • Selectable Input Limiters

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience pristine audio quality with this Prism Sound digital audio interface.
  • Achieve ultra-low latency for seamless recording and mixing sessions using Pro Tools HDX.
  • Expand your studio's connectivity with versatile AES3 digital I/O module options.
  • Enjoy exceptional driver support for macOS and Windows, ensuring stable performance.
  • Built for reliability, this audio interface offers robust build quality for years of use.
  • Capture every nuance with 8-channel analog I/O, perfect for detailed sound design.

What's in the box:

  • Prism Sound ADA-8XR Audio Interface
  • 8C-AD 8-Channel Analogue to Digital Line Input Module
  • 8C-DA 8-Channel Digital to Analogue Line Output Module
  • 8C-AES 8-Channel AES3 Digital I/O Module with AES Breakout Loom
  • 8C-PTHDX 8-Channel Pro Tools HDX I/O Module
  • Power Cable
  • BNC to RCA Connector
  • 4.9' DB25 to XLR AES3 Breakout Cable
  • (Digilink Cable Not Included)
  • Prism Sound 3 Year Limited Warranty
