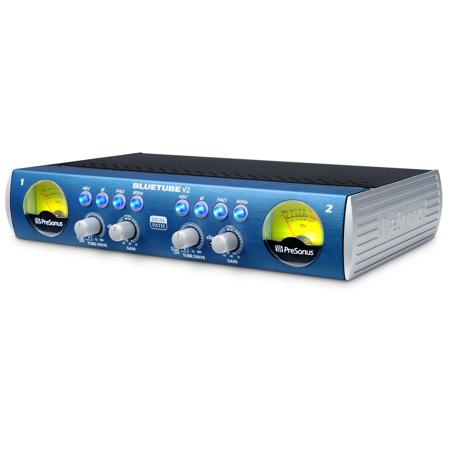

PreSonus BlueTube DP 2-Channel Dual Path Microphone Preamplifier

SKU: PSBTDP

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

PreSonus BlueTube DP 2-Channel Microphone Preamplifier Specifications

  • Input Connector Type

    Neutrik Combo

  • XLR Impedance

    1.3K Ohms

  • Hi-Z, 1/4"

    1 Meg Ohms

  • Output Connector Type

    XLR and 1/4" TS

  • Output Impedance

    51 Ohms

  • Panel Controls Gain

    0dB to +54dB

  • Tube Drive

    0% to 100%

  • Analog VU

    -2odBu to +6dBu

  • Clip Indicator

    +22dBu

  • THD Noise (Unweighted) Solid State

    < 0.005%

  • THD Noise (Unweighted) Tube stage

    0.01% to 30%

  • Signal To Noise

    > 95dB

  • Power Supply Rejection

    > 98dB

  • Mounting

    Universal rack tray insert

  • Power Supply Type

    Linear

  • Power Supply Input

    16VAC / 1000mA

  • Power

    16 Watts

  • Transformer

    External

  • Dimensions

    8" x 5" x 1.75" / 20.32 x 13 x 4.44 cm

  • Weight

    4lbs / 2kg

  • UPC Code

    673454000546

About PreSonus BlueTube DP 2-Channel Microphone Preamplifier

The PreSonus BLUETUBE DP is a two channel microphone/instrument preamplifier with Dual Path technology that delivers the best of both worlds. It offers a solid state preamplifier stage and a tube preamplifier stage in each channel, delivering either fat, warm tube tone or invisible solid state transparency.

Each channel of the BLUETUBE DP includes a -20dB pad, polarity reverse, 80Hz filter, and +48v phantom power. Front panel controls include a solid state GAIN control and switchable on/off Tube Drive. When the Tube Drive is clicked off, the tube preamplifier stage is bypassed delivering ultra-quiet and transparent preamplification. The front panel also includes illuminated analog VU meters for each channel for easy visual monitoring.

The BLUETUBE DP is great for enhancing all types of microphones including condensers, dynamics and ribbons, as well as instruments including keyboards, acoustic and electric guitars and bass. The unit is the perfect front-end preamplifier for any project studio, delivering a wide range of sounds and tonality.

PreSonus BlueTube DP 2-Channel Microphone Preamplifier Features

  • Stereo Dual Path microphone/instrument preamp using 12AX7 tubes
  • High headroom with Class A gain stage
  • 20dB pad, polarity reversal and 80Hz filter on each channel
  • Two illuminated analog VU meters
  • Functions as a DI for bass and guitar

Key Features

  • Stereo Dual Path microphone/instrument preamp using 12AX7 tubes
  • High headroom with Class A gain stage
  • 20dB pad, polarity reversal and 80Hz filter on each channel
  • Two illuminated analog VU meters
  • Functions as a DI for bass and guitar

What's in the box:

  • PreSonus BlueTube DP 2-Channel Dual Path Microphone Preamplifier
  • External Power Supply
  • PreSonus Warranty
