PSC RF Six Pack with Aaton Digital Interface, Single Band 470-700MHz

SKU: PSC6PSBAI MFR: RF6PSBAI
Earn VIP Reward Points

Key Features

  • Enhance your audio with the PSC RF Six Pack, ensuring top-notch sound quality!
  • Achieve optimal performance with this single band 470-700MHz antenna accessory.
  • Durable aircraft aluminum chassis provides long-lasting reliability for your audio setup.
  • Enjoy low noise with a 2.0dB RF amp noise figure, perfect for clear recordings.
  • Boost your signal with +39 IP3, ideal for professional audio environments.
  • This PSC RF Six Pack offers broad compatibility, easily integrating into your system.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

PSC RF Six Pack Specifications

  • RF Bandwidth

    Single Band 470-700MHz

  • RF Amp Noise Figure

    2.0dB

  • IP3

    +39

  • Output Isolation

    24dB

  • Power

    12V DC at 75mA

  • RF Inputs

    BNC, 50 Ohms

  • RF Outputs

    R.A. SMA, 50 Ohms

  • Chassis

    Aircraft Aluminum

  • Finish

    Anodize and powder coat

  • Dimensions (WxDxH)

    12.25 x 5.25 x 1.63" (31.12 x 13.34 x 4.14cm)

  • Weight

    2 lbs (0.91kg)

About PSC RF Six Pack

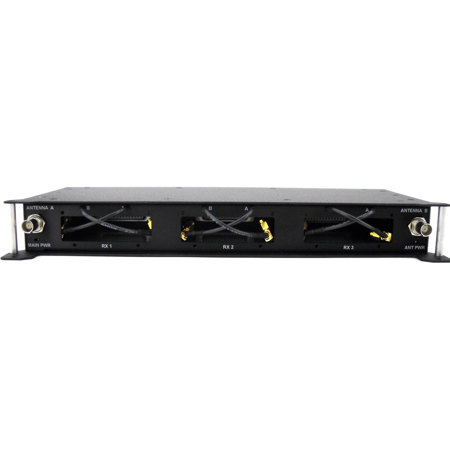

Bring your wireless communication system to the next level with the PSC RF Six Pack with Aaton Digital Interface, Single Band 470-700MHz. This advanced and innovative device is expertly designed to provide a compact and convenient solution for utilizing three slot receivers from various manufacturers.

Ideal for both stand-alone use with other ENG-style mixers and for cart-based sound recordists, the RF Six Pack ensures bandwidth-limited, super low noise RF distribution. It boasts two BNC antenna inputs and offers switchable antenna powering, making it compatible with powered antennas and remote amplifiers.

The RF Six Pack is equipped with an input level-limited RF signal that is amplified to prevent signal loss through the unit. It's further enhanced with band-pass filtering and splitting to the three receivers. RF outputs are seamlessly delivered to the receivers via six right-angle, cable-mounted SMA connectors.

At the heart of this high-quality device is a state-of-the-art RF amplifier with an impressively low noise figure, ensuring exceptional performance in the field. Powering is made easy via the standard 4-pin Hirose power connection, and it offers six individual mini XLR audio output connectors for your convenience.

Housed in a robust, aircraft aluminum housing that has been anodized and texture powder-coated, this durable RF Six Pack is designed to withstand the rigors of professional use. It's available in a single-band version, designed for use outside of the USA, and boasts a wide frequency range of 470 to 700 MHz, making it compatible with the Lectrosonics 941 Block.

The Aaton Digital Interface option enhances the functionality of the RF Six Pack by allowing Cantar users to directly view information about their wireless on the Cantar screen. This includes RF Frequency Scanning, RF Receiver Frequency Selection, RF Signal Strength, Transmitter battery levels, and more. The interface also adds a USB connector to the right-hand side panel of the PSC RF Six Pack for easy connection to the Cantar and Cantar Mini recorders.

Choose the PSC RF Six Pack with Aaton Digital Interface, Single Band 470-700MHz for a reliable, high-quality solution for your wireless communication needs.

PSC RF Six Pack Features

  • Advanced RF Six Pack with Aaton Digital Interface, designed for robust wireless communication
  • Wide frequency range of 470-700MHz, compatible with various applications and environments
  • Features state-of-the-art RF amplifier with low noise figure for exceptional performance
  • Equipped with two BNC antenna inputs and switchable antenna powering
  • Durable, aircraft aluminum housing, anodized and texture powder-coated for added longevity
  • Aaton Digital Interface allows direct viewing of wireless information on Cantar screen

Key Features

  • Enhance your audio with the PSC RF Six Pack, ensuring top-notch sound quality!
  • Achieve optimal performance with this single band 470-700MHz antenna accessory.
  • Durable aircraft aluminum chassis provides long-lasting reliability for your audio setup.
  • Enjoy low noise with a 2.0dB RF amp noise figure, perfect for clear recordings.
  • Boost your signal with +39 IP3, ideal for professional audio environments.
  • This PSC RF Six Pack offers broad compatibility, easily integrating into your system.

What's in the box:

  • PSC RF Six Pack with Aaton Digital Interface
  • PSC 1 Year Limited Warranty
