Get the PSC RF Multi SMA Dual Band for superior audio. Durable aircraft aluminum, low noise. Compatible with UHF. Shop now for enhanced sound quality!

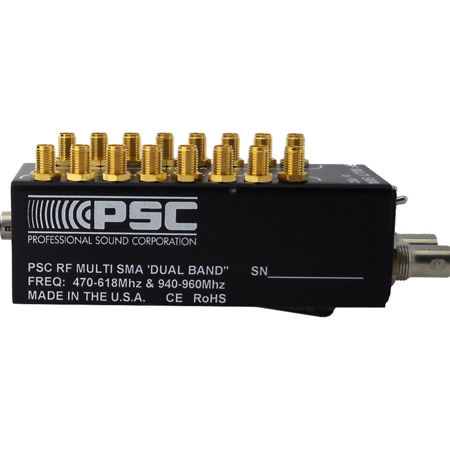

The new version of the RF Multi SMA is available in two models. The first model(RFSMADB) which is designed primarily for the US market will feature the new "Dual Band" technology. This unit will incorporate a new custom made "Dual Band" band pass filters allowing it to operate from 470Mhz to 618Mhz and also covering the new 941 band frequencies sold by Lectrosonics in the U.S.A.The PSC RF Multi SMA contains two, separate, active 1 x 8 RF splitters for use with up to eight diversity receivers. This compact, rugged device was developed using the latest super low noise RF amplifiers and will operate over an extended frequency range of 470Mhz to 870Mhz. Its two inputs are traditional BNC connectors for ease of use in interfacing with your external antennas.Each of the SMA outputs offers a typical isolation factor of 24 to28dB between radio receivers. The PSC RFMulti SMA also has the ability to power external powered antennas or remote line amplifiers. There are two top panel mounted switcheson the unit. One is marked "POWER" and this controls the overall power to theunit.The second switch is marked "ANTENNA" and this switch controls the power being sent to an external powered antenna or remote line amplifier. Both switcheslight up when in use. The entire unit is powered from any source of external DC power of 10 to 15Vdc @ approximately 90 mA.

PSC RF Multi SMA Dual Band, 470-618 Mhz & 940-960 Mhz
