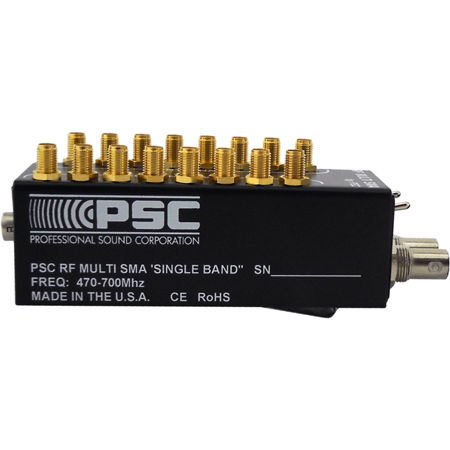

PSC RF Multi SMA Single Band, 470-700 Mhz

SKU: PSCMASB MFR: RFSMASB
Earn VIP Reward Points

Key Features

  • Enhance your audio with this PSC RF Multi SMA, ensuring top sound quality for your receivers.
  • Durable aircraft aluminum build with black epoxy coat offers lasting antenna distribution.
  • Optimize signal strength; this antenna distribution system supports a maximum input of +13 dB.
  • Achieve low noise with a 0.8 dB noise figure, perfect for clear audio in any environment.
  • Wide compatibility: Use with UHF distribution & receivers for seamless audio integration.
  • Compact & lightweight (6.5 oz); this antenna accessory is ideal for portable audio setups.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

PSC RF Multi SMA Specifications

  • Power

    External DC, 10-15Vdc @ 70mA

  • Input Impedance

    50 Ohms

  • Output Impedance

    50 Ohms

  • Input Signal

    Maximum: +13 dB

  • Noise Figure

    0.8 dB

  • Chassis Material

    Aircraft Aluminum

  • Finish

    Black Epoxy Power Coat

  • Dimensions (L x W x D)

    4.3 x 1.4 x 1.6" (10.8 x 3.5 x 4.1cm)

  • Weight

    6.5 oz (184.3g)

  • UPC Code

    00810048700103

Designed For Use With:

  • UHF Distribution & Receivers

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About PSC RF Multi SMA

A second version (RFSMASB) is designed primarily for the European market. It will operate from 470Mhz up to 700Mhz. This model will not pass the 941Mhz band.

The PSC RF Multi SMA contains two, separate, active 1 x 8 RF splitters for use with up to eight diversity receivers. This compact, rugged device was developed using the latest super low noise RF amplifiers and will operate over an extended frequency range of 470Mhz to 870Mhz. Its two inputs are traditional BNC connectors for ease of use in interfacing with your external antennas.

Each of the SMA outputs offers a typical isolation factor of 24 to28dB between radio receivers. The PSC RFMulti SMA also has the ability to power external powered antennas or remote line amplifiers. There are two top panel mounted switcheson the unit. One is marked "POWER" and this controls the overall power to theunit.

The second switch is marked "ANTENNA" and this switch controls the power being sent to an external powered antenna or remote line amplifier. Both switcheslight up when in use. The entire unit is powered from any source of external DC power of 10 to 15Vdc @ approximately 90 mA.

Key Features

  • Enhance your audio with this PSC RF Multi SMA, ensuring top sound quality for your receivers.
  • Durable aircraft aluminum build with black epoxy coat offers lasting antenna distribution.
  • Optimize signal strength; this antenna distribution system supports a maximum input of +13 dB.
  • Achieve low noise with a 0.8 dB noise figure, perfect for clear audio in any environment.
  • Wide compatibility: Use with UHF distribution & receivers for seamless audio integration.
  • Compact & lightweight (6.5 oz); this antenna accessory is ideal for portable audio setups.

What's in the box:

  • RF Multi SMA Single Band
  • PSC 1 Year Limited Warranty
