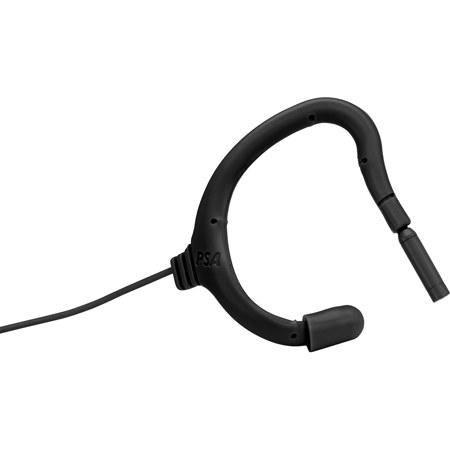

Point Source Audio SERIES9 EO-9WL Omnidirectional Earmount Microphone Black TA4F Connector

SKU: PSEO9WLSHBL MFR: EO-9WL-SH-BL
Earn VIP Reward Points

Key Features

  • Wide frequency response of 20Hz to 20kHz for capturing full-spectrum sound
  • High sensitivity of -39dB 1V/Pa (+/-3dB at 1kHz) for precise audio capture
  • IP 57 waterproof rating protects against water, sweat, and makeup
  • Patented ENDURE connectors provide enhanced durability and longevity
  • Lightweight design at 0.6 oz with compact element size of 4 mm x 15 mm
See More Product Details
Special Order?Estimated to Ship: 01/01/2026
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the frequency response range of the Point Source Audio SERIES9 EO-9WL microphone?

The frequency response range of the EO-9WL microphone is 20Hz to 20kHz, allowing it to capture a wide range of audio frequencies with precision.

Is the EO-9WL microphone suitable for high sound pressure levels?

Yes, the EO-9WL microphone can handle a maximum sound pressure level (SPL) of 142 dB, making it ideal for both loud and quiet sound environments.

How is the EO-9WL microphone protected against environmental factors?

The EO-9WL microphone features an IP 57 waterproof rating, providing protection against water, sweat, and makeup for reliable performance in various conditions.

What type of connector does the EO-9WL microphone use?

The EO-9WL microphone is equipped with patented ENDURE connectors, which enhance its durability and lifespan.

What is the nominal impedance of the EO-9WL microphone?

The nominal impedance of the EO-9WL microphone is 1.3k Ohm, making it compatible with a wide range of audio equipment.

Reviews about this item

Review Summary

Point Source Audio SERIES9 EO-9WL Omnidirectional Earmount Microphone Specifications

  • Available Colors

    Beige, Brown, Black

  • Available Connectors

    3.5mm Locking, TA4F/Mini-XLR 4-Pin Female for Shure Transmitters, LEMO 3-Pin

  • Compatibility

    3.5mm Locking: Sennheiser EW Series Transmitters
    TA4F: Shure Transmitters
    Lemo-style: Select Transmitters

  • Element

    Back Electret Condenser

  • Pattern

    Omnidirectional

  • Frequency

    20Hz - 20kHz

  • Sensitivity

    -39dB 1V/Pa ( +/- 3dB at 1kHz)

  • Maximum SPL

    142 dB SPL

  • Output Impedance

    1300 Ohm (at 1kHz)

  • Operating Voltage

    1 - 10 V

  • Element Diameter

    4 x 15mm

  • IP Waterproof Rating

    IP57

  • Cleaning Agent

    70% Isopropyl Alcohol

  • Connector Type

    Hardwired

  • Mic Placement

    Left or Right

  • Certifications

    RoHS compliant

  • CE Labeled

    Labeled CE compliant per directive 2014/30/EU

  • Cable Length

    5.57' (1.7m) + connector

  • Weight

    0.6 oz (17g)

  • UPC Code

    850051593408

About Point Source Audio SERIES9 EO-9WL Omnidirectional Earmount Microphone

Experience unparalleled audio performance with the Point Source Audio SERIES9 EO-9WL Omnidirectional Earmount Microphone. This subminiature electret condenser microphone is expertly designed for professionals who demand exceptional sound quality and durability. Featuring trimmable EMBRACE earmounts, the EO-9WL ensures a secure and comfortable fit for any user.

With an impressive frequency response range of 20Hz to 20kHz, this microphone captures the full spectrum of sound, from deep bass to crisp highs. Its sensitivity of -39dB 1V/Pa (+/-3dB at 1kHz) allows for precise audio capture, making it ideal for both live performances and studio recordings. The EO-9WL boasts a dynamic range of no less than 104 dB and can handle a maximum sound pressure level (SPL) of 142 dB at one inch on axis, ensuring clarity even in the loudest environments.

Engineered with an IP 57 waterproof rating, the EO-9WL is protected against water, sweat, and makeup, making it a reliable choice for demanding conditions. The microphone's element measures a compact 4 mm x 15 mm and weighs only 0.6 oz, offering a lightweight solution without compromising on performance. Its nominal impedance of 1.3k Ohm ensures compatibility with a wide range of audio equipment.

The EO-9WL's patented ENDURE connectors further enhance its longevity, providing a robust connection that withstands the rigors of frequent use. Whether capturing the powerful vocals of a live event or the subtle nuances of a studio conversation, the Point Source Audio EO-9WL Omnidirectional Earmount Microphone is your go-to choice for superior audio fidelity and durability.

Point Source Audio SERIES9 EO-9WL Omnidirectional Earmount Microphone Features

  • 142 dB max SPL
  • -39 dB sensitivity
  • Patented ENDURE connectors in 3-pin Lemo-style, TA4F and 3.5mm locking ring
  • IP 57 waterproof rating
  • Cleanable with 70% isopropyl alcohol

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Wide frequency response of 20Hz to 20kHz for capturing full-spectrum sound
  • High sensitivity of -39dB 1V/Pa (+/-3dB at 1kHz) for precise audio capture
  • IP 57 waterproof rating protects against water, sweat, and makeup
  • Patented ENDURE connectors provide enhanced durability and longevity
  • Lightweight design at 0.6 oz with compact element size of 4 mm x 15 mm

What's in the box:

  • Point Source Audio SERIES9 EO-9WL Omnidirectional Earmount Microphone
  • 2x Color Matched EMBRACE Earmounts
  • Windscreen
  • Cable Clip
  • Storage Box
  • Point Source Audio 2 Year Limited Warranty
