PSC RF Multi SMA Two 1x8 Active Splitters, 50Ohms Impedance, 470 to 870mHz Frequency Range, BNC Input and SMA Output

SKU: PSFPSC0006C

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

PSC RF Multi SMA Two 1x8 Active Splitters Specifications

  • Power

    External DC, 10-15V DC, 120mA/td>

  • Frequency Range

    470 to 870mHz

  • Input Impedance

    50Ohms

  • Output Impedance

    50Ohms

  • Maximum Input Level

    +13dB

  • Noise Figure

    0.8dB

  • Chassis

    Aircraft Aluminum

  • Finish

    Black Epoxy Powder Coat

  • Dimensions

    4.25 x 1.38 x 1.61" / 108 x 35 x 41mm

  • Weight

    6.5oz / 184.27g

About PSC RF Multi SMA Two 1x8 Active Splitters

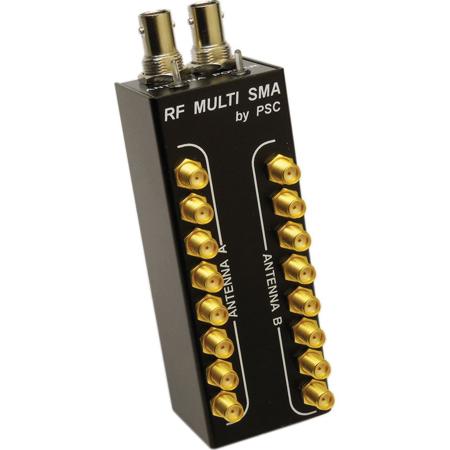

The PSC RF Multi SMA contains two, separate, active 1 x 8 RF splitters for use with up to eight diversity receivers. This compact, rugged device was designed using the latest super low noise amplifiers and will operate over an extended frequency range of 470 to 870mHz. Its two inputs are traditional BNC connectors for ease of use in interfacing with external antennas. Each of the outputs offers a typical isolation factor of 24 to 28dB between radio receivers.

It also has the ability to power external powered antennas or remote line amplifiers. There are two top panel mounted switches. One controls overall power and the second switch provides remote antenna power when needed. Both switches light up when in use. This unit is powered from any external DC source of 10 to 15VDC via the bottom panel mounted 4 pin Hirose connector. A sturdy belt clip is included for ENG bag use.

What's in the box:

  • PSC RF Multi SMA Two 1x8 Active Splitters
  • Belt Clip
  • PSC 1 Year Limited Warranty
