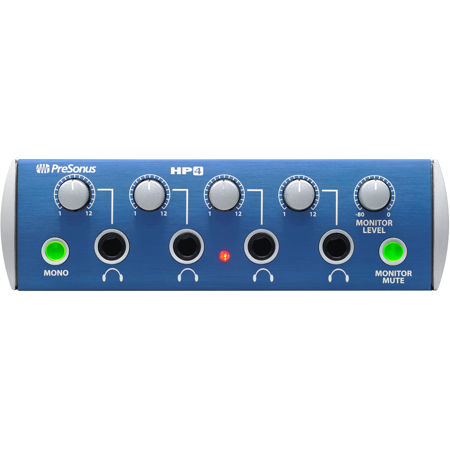

PreSonus HP4 4-Channel Headphone Distribution Amplifier with 4x HD9 Professional Over-Ear Closed Back Monitoring Headphones

SKU: PSHDHP4P

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

PreSonus HP4 + HD9 Specifications

HP4: Inputs

HP4: Inputs

Jump to...
  • Connector Type

    1/4" TRS, balanced

  • THD+N

    0.0025%, 1 kHz, unity gain

  • Max Input Level

    +18 dBu, <0.5% THD+N, unity gain

  • Input Impedance

    10 kOhms

  • Frequency Response

    20 Hz - 20 kHz, +/-0.5dB

HP4: Monitor Outputs

Jump to...
  • Connector Type

    1/4" TRS, asymmetrical, impedance-balanced

  • THD+N

    0.0025%, 1 kHz, unity gain

  • Max Output Level

    +18 dBu, <0.5% THD+N

  • Output Impedance

    51Ohms

  • Frequency Response

    20 Hz - 20 kHz, +/-0.5dB

HP4: Headphone Outputs

Jump to...
  • Connector Type

    1/4" TRS, stereo

  • Max Output Power

    130 mW/Ch., <0.5% THD+N, 60Ohms load

  • Frequency Response

    20 Hz - 20 kHz, +/-0.5 dB, 60Ohms load

  • Headphone Impedance Working Range

    32Ohms - 600Ohms

HP4: Power

Jump to...
  • External Adapter Type

    +12 VDC, 1000 mA, center pin positive

  • Driver Size

    1.77" (44.96mm)

  • Magnet Type

    Neodymium

  • Design

    Over-Ear (Circumaural)

  • Earcup Style

    Closed-Back

  • Frequency Response

    10 Hz to 26 kHz

  • Impedance

    40Ohms (Passive)

  • Maximum Power Handling

    1800 mW

  • Driver Type

    Dynamic

  • Foldable

    Yes

HD9: Connectivity

Jump to...
  • Audio Connector

    1/8" (3.5mm) TRS

  • Connector Plating

    Gold

  • Adapter (Included)

    1/4" (6.3mm) TRS

HD9: Cable

Jump to...
  • Design

    Single-Sided

  • Detachable

    No

  • In-Line Remote/Microphone

    No

  • Cable Length

    9.84' (3m)

General

Jump to...
  • Dimensions (HxDxW)

    HP4: 1.75 x 5.5 x 5.5" (4.45 x 13.97 x 13.97cm), 1/3U rack-mount (with standard rack tray, not included)

  • Weight

    HP4: 5 lbs (2.27kg)

  • UPC Code

    673454006975

About PreSonus HP4 + HD9

--HP4 --
Tired of straining to hear the headphones? The HP4's four 130 mW headphone outputs are clear, clean and screaming loud, all packed in a compact, 1/3U chassis. Features include balanced L/R line inputs and outputs, global mute, overall level control and sum to mono. The line outputs can feed another HP4 or an HP60.

Now hear this!
Are you and your session players and bandmates tired of straining to hear underpowered headphones? We were too, so we created the HP4 headphone-distribution system. These headphone amps are louder than you're ever likely to need for session and stage use, so be careful with that level control! Yet the sound is clear and clean, with a wide dynamic range. At last, everybody will be able to hear!

Simple and versatile
Simplicity is the HP4's hallmark. You get left and right line inputs, left and right line outputs with level control and the four headphone outs. You can sum the stereo signals to mono, adjust the individual headphone levels and mute the rear-panel Monitor outputs while leaving the headphone outputs active. So while the HP4 is simple to set up and use, it has all the features you need to create a versatile headphone system.

Compact and expandable
The compact HP4 can sit on a tabletop or can be screw-mounted to a standard rack tray (not included), where it requires just 1/3 rackspace. And if your needs grow, you can use the line outputs to feed the inputs of a second HP4 or the larger HP60 headphone amplifier. So quit struggling with mediocre headphone amps. Get the HP4 and hear everything loud and clear. You owe it to your music.

Input/Output
• 4 screaming-loud (150 mW per channel) stereo 1/4" headphone outputs (front panel)
• 2 balanced 1/4" line outputs (monitor outputs)
• 2 balanced 1/4" line inputs

Meters, Controls and Features
• Headphone level control for each channel
• Mono summing switch for each channel
• Monitor level control
• Monitor mute switch
• Daisy-chain multiple units via monitor outputs

Physical
• Compact 1/3U rack-mount chassis
• Sealed, detented, metal rotary controls
• External 16 VAC power supply

-- HD9 --

Hear for yourself. Mix for everyone
When you need to do serious work without bothering anyone in your living space and without being distracted by outside sound, choose PreSonus HD9 headphones. They're clean-sounding, extra-comfortable and offer a broad, transparent frequency response that ensures accurate mixing.

Nothing but clear, accurate sound
The HD9's closed-back acoustic design provides superior listening isolation and reduces headphone bleed, so you hear nothing but music-and your housemates hear nothing at all.

Peerless construction, surgical accuracy
The HD9's 45 mm dynamic, neodymium drivers and high power handling (900 mW per channel into 40 ohms) deliver loud, clear, clean audio, minimizing listening fatigue. Best of all, its tailored frequency response extends all the way from 10 Hz to 26 kHz, with accurate bass response, enabling precise mixes.

Comfort matters
The lightweight HD9 features an adjustable headband, cups that rotate 180 deg. on two axes and comfortable, durable ear pads. The straight, ten-foot cable drops down one side so it doesn't get in your way. The result is a comfortable listening experience that you'll continue to enjoy during long sessions. And the HD9 is built tough so you can rely on it wherever your travels take you.

You listen thoughtfully-so why not think like a listener?
The PreSonus HD9s are an invaluable addition to your sonic toolbox. While there will always be a place in the studio for powerful and articulate studio monitors, fact is that more people are choosing portable, personal listening solutions nowadays. As trends in listening shift, it's wise for you to check your mixes on high-quality headphones as well as on your finely calibrated studio monitors. With the HD9s, you can rest assured that your mixes are translating well across myriad listening environments. And with the HD9's combination of comfort, adjustability, sturdy construction and acoustic isolation, you can mix better for longer.

Fit and Comfort
• Two-axis, 180 deg. cup rotation
• Lightweight
• Comfortable, long-lasting ear pads
• Adjustable headband

Sound
• Precision-tuned, closed back, circumaural acoustic design
• Tailored frequency response (10 Hz - 26 kHz; +/-3 dB)
• Accurate low-frequency response
• High-power handling (1,800 mW at 40Ohms, 900 mW per channel)
• 45 mm dynamic, neodymium drivers

Connection and Storage
• 10 foot (3m), straight, single-sided cable with 1/8 inch connector
• Gold-plated 1/8 inch-to-1/4 inch adapter
• Storage bag

PreSonus HP4 + HD9 Features

  • HP4:
  • 4 screaming-loud (130 mW per channel) stereo headphone amps
  • 2 balanced 1/4" line inputs
  • Headphone level control
  • Mono summing switch
  • Monitor level control
  • Monitor mute switch
  • Daisy-chain multiple units via 2 balanced 1/4" monitor outputs
  • Compact 1/3U rack-mount chassis

What's in the box:

  • PreSonus HP4 4-Channel Headphone Distribution Amplifier
  • 4x HD9 Professional Over-Ear Closed Back Monitoring Headphones
  • Gold-Plated 1/8 " to 1/4 " Connector
  • Storage Bag
  • PreSonus 1 Year Limited Warranty
