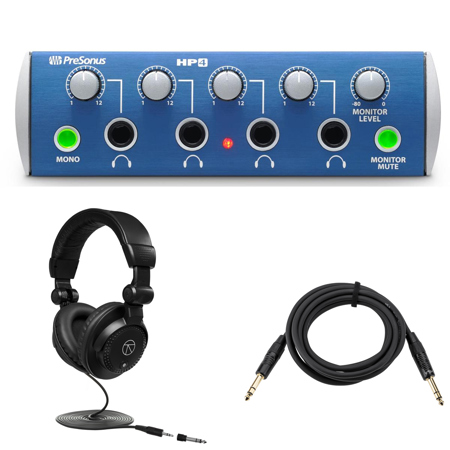

PreSonus HP4 4-Channel Headphone Distribution Amplifier, Blue, Bundle with TAPH100 Headphones and Platinum Pro 10' TRS Cable

SKU: PSHP4B MFR: 2777400203 B
Earn VIP Reward Points

PACKAGE INCLUDES:

  • PreSonus HP4 4-Ch Headphone Distribution Amplifier
    PreSonus HP4 4-Ch Headphone Distribution Amplifier
  • +
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
    Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • +
  • H&A PlatPro 10' TRS 1/4" Male - 1/4" Male Interconnect Cable W Rean Connectors
    H&A PlatPro 10' TRS 1/4" Male - 1/4" Male Interconnect Cable W Rean Connectors
  • +
  • Show more

Key Features

  • Experience crystal-clear audio with our 4-channel headphone amplifier, perfect for studio monitoring.
  • Distribute high-quality sound to multiple headphones simultaneously for collaborative listening sessions.
  • Enjoy robust and reliable performance with a durable steel chassis and brushed aluminum panel construction.
  • Connect effortlessly with versatile 1/4" TRS inputs and outputs for seamless integration into your setup.
  • Achieve precise audio control with individual headphone level adjustments on each of the four channels.
  • Ideal for home studios or live sound, this headphone distribution amplifier enhances your audio experience.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

PreSonus HP4 Specifications

General

General

Jump to...
  • Color

    Blue

Electronics

Jump to...
  • Voltage Requirements

    100-240 VAC, 50-60 Hz

  • Headphone Amplifier Input

    Connection Type: 1/4" TRS, Balanced
    Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB
    Impedance: 10 k Ohm
    Maximum Input Level: +18 dBu, <0.5% THD+N, Unity Gain
    Total Harmonic Distortion: 0.0025%, 1 kHz, Unity Gain

Outputs

Jump to...
  • Headphone Outputs

    Frequency Response: 20 Hz - 20 kHz, +/-0.5 dB, 60 Ohm Load
    Impedance Working Range: 32 Ohm to 600 Ohm
    Maximum Output: 130 mW/Ch., <0.5% THD+N, 60 Ohm load

  • Monitor Output

    Connection Type: 1/4" TRS, Balanced
    Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB
    Impedance: 51 Ohm
    Maximum Output Level: +18 dBu, <0.5% THD+N
    Total Harmonic Distortion: 0.0025%, 1 kHz, Unity Gain

Physical

Jump to...
  • Dimensions (D x H)

    5.5 x 1.75" (139.7 x 44.45mm)

  • UPC Codes

    192223288355, 192223075955, 673454000423, 192223227576

About PreSonus HP4

Tired of straining to hear underpowered headphones? The PreSonus HP4 headphone-distribution system is louder than you're ever likely to need for session and stage use. (Be careful with that level control!) Yet the sound is clear and clean, with a wide dynamic range. At last, everybody will be able to hear!

Simplicity is the HP4's hallmark. It offers left and right line inputs, left and right line outputs with level control, and four headphone outs. You can sum the stereo signals to mono, adjust the individual headphone levels, and mute the rear-panel Monitor outputs while leaving the headphone outputs active. So while the HP4 is simple to set up and use, it has all the features you need to create a versatile headphone system.

The compact HP4 can sit on a tabletop or can be screw-mounted to a standard rack tray (not included), where it requires just one-third of a rackspace. If your needs grow, you can use the line outputs to feed the inputs of a second HP4 or the larger HP60 headphone amplifier.

So quit struggling with mediocre headphone amps. Get the PreSonus HP4 and hear everything loud and clear. You owe it to your music.

PreSonus HP4 Features

  • 4 screaming-loud (130 mW per channel) stereo 1/4" (6.3mm) headphone outputs (front panel)
  • 2 balanced 1/4" (6.3mm) line outputs (monitor outputs)
  • 2 balanced 1/4" (6.3mm)line inputs
  • Headphone level control for each channel
  • Mono summing switch for each channel
  • Monitor level control and mute switch
  • Daisy-chain multiple units via monitor outputs
  • Compact 1/3U rack-mount chassis
  • Sealed, detented, metal rotary controls
  • External 16 VAC power supply

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience crystal-clear audio with our 4-channel headphone amplifier, perfect for studio monitoring.
  • Distribute high-quality sound to multiple headphones simultaneously for collaborative listening sessions.
  • Enjoy robust and reliable performance with a durable steel chassis and brushed aluminum panel construction.
  • Connect effortlessly with versatile 1/4" TRS inputs and outputs for seamless integration into your setup.
  • Achieve precise audio control with individual headphone level adjustments on each of the four channels.
  • Ideal for home studios or live sound, this headphone distribution amplifier enhances your audio experience.

What's in the box:

  • PreSonus HP4 4-Channel Headphone Distribution Amplifier (Blue)
  • Power Cable
  • PreSonus 1 Year Limited Warranty
  • Bundle Includes:
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • H&A Platinum Pro 10' TRS 1/4" Interconnect Cable
