Bodelin Technologies ProScope HR2 CSI Science Level 2 Kit with ProScope HR2 Base Unit, ProScope 200x Lens

SKU: PSHR2LVL2

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Bodelin Technologies HR2 Specifications

  • Magnification

    0-10x, 50x, 200x

  • Imager

    2 MP 1/3" color sensor, 1,920,000 effective pixels

  • Interface

    USB 2.0

  • Cable Length

    6.0' / 1.8 m

  • Still Capture

    QVGA/320x240, VGA/640x480, SXGA/1280x1024

  • Video Capture

    QVGA - 30 fps @ 320x240, VGA - 15 fps @ 640x480, SXGA - 3.75 fps @ 1280x1024, UXGA - 2.5 fps @ 1600x1200

  • Power Source

    Powered via USB Interface

  • Operating Temperature

    41 to 104°F / 5 to 40°C

  • Storage Temperature

    14 to 140°F -10 to 60°C

  • Apple System Requirements

    G4, G5 or Intel Mac
    Mac OSX 10.4.8 and later
    QuickTime 7 or later
    Factory installed USB 2.0 high speed port

  • Windows System Requirements

    Pentium 4 equivalent or faster
    Windows XP/Vista and later
    QuickTime 7 or later
    DirectX 9 or later
    Factory installed USB 2.0 high speed port

  • Dimensions

    6.0 x 1.8" / 15.2 x 4.5 cm

  • Weight

    6.5 oz / 185 g

  • UPC Code

    856776000559

About Bodelin Technologies HR2

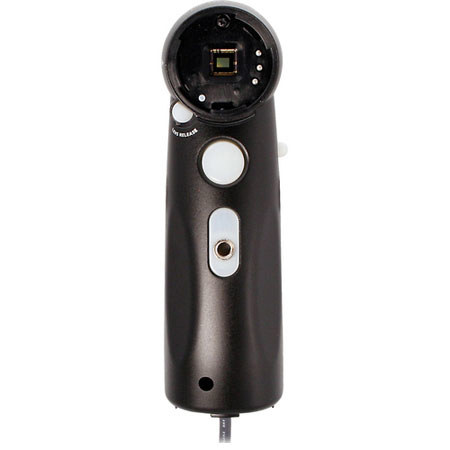

The ProScope HR2 is a hand-held digital microscope from Bodelin Technologies for PC and Macintosh platforms. Utilizing a single USB 2.0 port, the HR2's state-of-the-art 2 MP Aptina CCD puts high-resolution imaging in the palm of your hand. The HR2 produces remarkable live-view presentations by streaming pixels at full resolution - this technological advancement not only produces stunning high-magnification imagery, it also allows intensive image-adjustment. Because the ProScope HR2 allows you to take the microscope to the subject in its native environment, it's an invaluable tool for science education, law enforcement and industrial quality-control applications.

This is the ProScope HR2 CSI Science Level 2 Kit which includes the following items; 0-10x lens, 50x lens, 200x lens, ProScope precision stand, HR software and a standard carry case. Optional lenses for specialized applications (30N, 100x, 400x) are available separately. Other optional accessories include adapters for borescopes and analog microscopes, a measurement software-package that is accurate to 10 microns and an image analyzer software-package. The ProScope HR2 is manufactured in Oregon USA and it is RoHS compliant. It's a UVC plug-and-play device that's bundled with Windows and Mac software for capturing stills, video and time-lapse images. The HR2 can also be used live over the Internet with programs like Skype and Apple's iChat.

Bodelin Technologies HR2 Features

  • 2 MP Imaging: Capture stills, video and time-lapse imagery at 1600 x 1200
  • System Capability: Accepts interchangeable lenses, C-mount adapters, analog microscope adapter
  • High Speed USB2: Utilizes USB2 connection for high-resolution live-view clarity
  • UVC Plug and Play: USB Video Class: plug and play operation without software. This allows use of the ProScope HR live over the Internet with programs like SKYPE and Apple iChat
  • Video Controls: Brightness, contrast, saturation, sharpness, manual, auto exposure, image orientation (flip/mirror), manual/auto white balance w/presets, RGB white balance components
  • Light source/white-balance presets: ProScope HR2 LED, incandescent, fluorescent, daylight, auto
  • RoHS Compliant: Free from lead and made with a lead free process
  • Dual Tripod Mounts: Front and rear standard 1/4-20" threaded mounts
  • Operating System Requirements: Windows XP SP2 and up, Mac OS 10.4.8 and up

Key Features

  • 2 MP Imaging: Capture stills, video & time-lapse imagery at 1600 x 1200
  • System Capability
  • High Speed USB2
  • UVC Plug & Play
  • Light source/white-balance presets
  • RoHS Compliant: Free from lead & made with a lead free process

What's in the box:

  • Bodelin Technologies ProScope HR2 Base Unit
  • ProScope 200x Lens
  • ProScope 50x Lens
  • ProScope 0-10x Lens-Illuminated
  • ProScope Carrying Case
  • ProScope Precision Stand
  • HR Software
  • Bodelin Technologies Warranty
