Bodelin Technologies ProScope HR CSI Advanced Lab Kit Specifications

  • Microscope Type

    Digital Handheld Microscope

  • Body Type

    One Piece

  • Eyepiece

    No

  • Nosepiece

    Single objective interchangeable lens mount

  • Objective(s)

    Compatible with all ProScope lenses
    Compatible with c-mount lenses with optional adapter

  • Head

    No

  • Focuser

    Autofocus

  • Light Source

    LED light incorporated into select lenses

  • Light Control

    High, Low, Off (when available)

  • Specimen Stage

    No

  • Image Sensor

    1/4" 1.31 Megapixel color CCD

  • Power Source

    Powered via USB Interface

  • Preview

    Yes (3 resolution/frame rate options)

  • Image Resolution

    QVGA (320x240)
    VGA (640x480)
    SXGA (1280x1024) requires USB 2.0 interface

  • Video Capture

    With USB 2.0 High Speed Interface: QVGA (320x240 @ 30 fps)
    VGA (640x480 @ 15 fps)
    SXGA (1280x1024 @ 3.75 fps)
    With USB 1.1 Full Speed Interface: QVGA (320x240 @ 4 fps)
    VGA (640x480 @ 1 fps)

  • Video Output

    No

  • Computer Interface

    USB 2.0 (High Speed)

  • System & Software Requirements

    Windows System:
    Pentium 4 Processor
    Windows XP (SP2) or later
    Factory Installed USB Interface (USB 2.0 High Speed recommended)
    CD-ROM Drive (for software install)
    DirectX 9 or later
    Quicktime 7 or later
    Macintosh System:
    G4, G5, or Intel Processor
    Macintosh OS X (10.4.8 or later)
    Factory Installed USB Interface (USB 2.0 High Speed recommended)
    CD-ROM Drive (for software install)
    Quicktime 7 or later

  • Dimensions

    6.0 x 1.8 x 1.8" (152 x 45 x 45mm) without lens

  • Weight

    5.3 oz. (150g) without lens

  • UPC Code

    856776000856

About Bodelin Technologies ProScope HR CSI Advanced Lab Kit

The ProScope HR Handheld Digital Microscope from Bodelin Technologies is a USB-interfacing digital microscope which you operate like a hand tool. With a high-quality 1.3 Megapixel CCD and universal lens mount, the ProScope can become a powerful asset to any classroom or lab. The ProScope's rugged construction and high-quality components are sturdy enough for a crime scene or a K-12 classroom.

Interchangeable lenses provide The ProScope HR with tremendous versatility. The Advanced Lab Kit includes a built-in light source and is ideal for field applications in biology, ecology and forensics. It also includes the 1-10x lens, with which, the ProScope HR becomes a high-quality video camera, the 30N lens which utilizes white and polarized LED's for a non-reflective view - ideal for skin, teeth, gems and metal surfaces, the 100x lens that is perfect for fingerprints, agricultural inspection, general biological studies.

You'll even get the incredibly powerful 400x lens that is great for microorganism imaging. Also, a lens mount adapter is included to provide an industry-standard C-Mount that will accept third-party lenses and a Lens Tube Adapter for using the ProScope with a traditional Microscope.

With the press of a button, the camera captures the image and stores it as a file in the location of your choosing. The powerful software included with The ProScope HR provides sophisticated video capture as well. With these options, the possible uses of The ProScope HR are endless.

Bodelin Technologies ProScope HR CSI Advanced Lab Kit Features

  • Capture and save images, video or interval shots with just a press of a button
  • Extremely rugged construction made from high impact plastics can survive the crime scene and the classroom
  • Front and back tripod mount for use with optional stand or any standard tripod
  • A selection of lenses are available specifically for the ProScope HR (the same lenses used by the original ProScope) and the included industry-standard C-Mount adapter allows third-party lenses to be used
  • USB interface is compatible with Windows, Macintosh and Unix/Linux Systems
  • Extensive Video/Image Controls are available including white balance, exposure, gamma control, 50/60Hz flicker control, saturation, contrast, sharpness and brightness adjust

Key Features

  • Capture & save images, video or interval shots
  • Extremely rugged construction made from high impact plastics can survive the crime scene & the classroom
  • Front & back tripod mount for use
  • USB interface is compatible with Windows, Macintosh & Unix/Linux Systems
  • Extensive Video & Image Controls

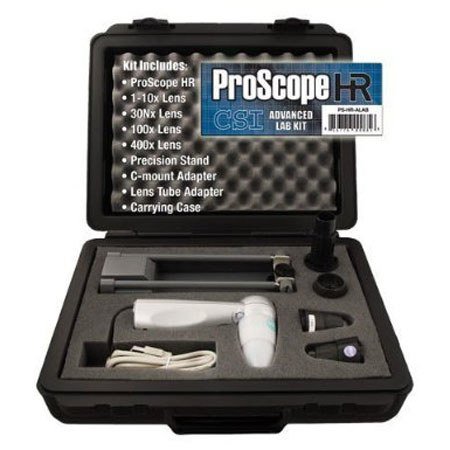

What's in the box:

  • Bodelin Technologies ProScope HR Handheld Digital Microscope
  • Integrated USB Cable (1.8m)
  • ProScope 0-10x Lens
  • 30Nx Lens
  • ProScope 100x Lens
  • 400x Lens
  • ProScope C-Mount Adapter
  • ProScope Lens Tube Adapter
  • ProScope Precision Stand
  • ProScope Carrying Case
  • Software CD-ROM
  • Bodelin Technologies Warranty
