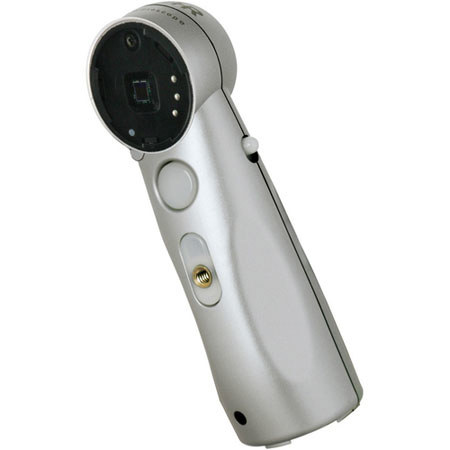

Bodelin Technologies ProScope HR Handheld Digital Microscope Base Unit without Lens

SKU: PSHRBASE

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Bodelin Technologies ProScope HR Base Unit without Lens Specifications

  • Microscope Type

    Digital Handheld Microscope

  • Body Type

    One Piece

  • Eyepiece

    No

  • Nosepiece

    Single objective interchangeable lens mount

  • Objective(s)

    Compatible with all ProScope lenses
    Compatible with c-mount lenses with optional adapter

  • Head

    No

  • Focuser

    Autofocus

  • Light Source

    LED light incorporated into select lenses

  • Light Control

    High, Low, Off (when available)

  • Specimen Stage

    No

  • Image Sensor

    1/4" 1.31 Megapixel color CCD

  • Power Source

    Powered via USB Interface

  • Preview

    Yes (3 resolution/frame rate options)

  • Image Resolution

    QVGA (320x240)
    VGA (640x480)
    SXGA (1280x1024) requires USB 2.0 interface

  • Video Capture

    With USB 2.0 High Speed Interface
    QVGA (320x240 @ 30 fps)
    VGA (640x480 @ 15 fps)
    SXGA (1280x1024 @ 3.75 fps)
    With USB 1.1 Full Speed Interface
    QVGA (320x240 @ 4 fps)
    VGA (640x480 @ 1 fps)

  • Video Output

    No

  • Computer Interface

    USB 2.0 (High Speed)

  • System Requirements: Windows

    Pentium4 Processor
    Windows XP (SP2) or later
    Factory Installed USB Interface (USB 2.0 High Speed recommended)
    CD-ROM Drive (for software install)
    DirectX 9 or later
    Quicktime 7 or later

  • System Requirements: Mac

    G4, G5, or Intel Processor
    Macintosh OS X (10.4.8 or later)
    Factory Installed USB Interface (USB 2.0 High Speed recommended)
    CD-ROM Drive (for software install)
    Quicktime 7 or later

  • Dimensions

    6.0 x 1.8 x 1.8" (152 x 45 x 45mm) without lens

  • Weight

    5.3 oz. (150g) without lens

  • UPC Code

    856776000801

About Bodelin Technologies ProScope HR Base Unit without Lens

The ProScope HR, Handheld Digital Microscope is a USB interface, hand held digital microscope. With a high-quality 1.3 Megapixel CCD and universal lens mount, The ProScope can become a powerful asset to any classroom or lab. The ProScope's rugged construction and high-quality components are sturdy enough for a crime scene or a K-12 classroom.

Interchangeable lenses provide The ProScope HR with tremendous versatility. A range of Proscope lenses are available from a 1x - 10x zoom lens, to an incredibly powerful magnification of 400x. Also, a lens mount adapter is available to provide an industry-standard C-Mount that will accept third-party lenses. With the press of a button, the camera captures the image and stores it as a file in the location of your choosing. The powerful software included with The ProScope HR provides sophisticated video capture as well. With these options, the possible uses of The ProScope HR are endless.

Bodelin Technologies ProScope HR Base Unit without Lens Features

  • Capture and save images, video or interval shots with just a press of a button
  • Extremely rugged construction made from high impact plastics can survive the crime scene and the classroom
  • Front and back tripod mount for use with optional stand or any standard tripod
  • A selection of lenses are available specifically for the ProScope HR (the same lenses used by the original ProScope) and the included industry-standard C-Mount adapter allows third-party lenses to be used
  • USB interface is compatible with Windows, Macintosh and Unix/Linux Systems
  • Extensive Video/Image Controls are available including white balance, exposure, gamma control, 50/60Hz flicker control, saturation, contrast, sharpness and brightness adjust

Key Features

  • Capture & save images, video or interval shots
  • Extremely rugged construction made from high impact plastics can survive the crime scene & the classroom
  • Front & back tripod mount for use
  • USB interface is compatible with Windows, Macintosh & Unix/Linux Systems
  • Extensive Video & Image Controls

What's in the box:

  • Bodelin Technologies ProScope HR Base Unit
  • ProScope Handheld Digital Microscope
  • Integrated USB Cable (1.8m)
  • Software CD-ROM
  • User Guide
  • Bodelin Technologies Warranty
