PreSonus StudioLive 16 Series III 16-Channel Digital Mixer
See all PreSonus items

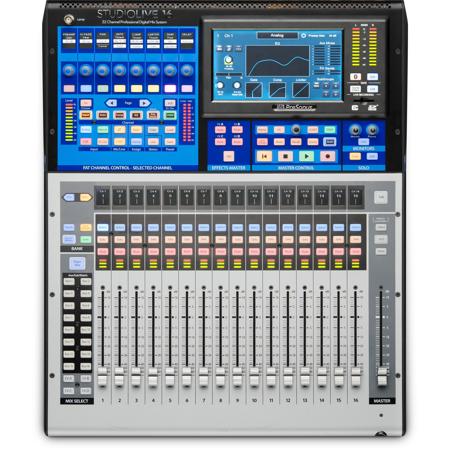

PreSonus StudioLive 16 Series III 16-Channel Digital Mixer

SKU: PSSLMAD16

This item is no longer available.

Recommended Alternatives

PreSonus StudioLive 16.0.2: Picture 1 regular
PreSonus StudioLive 16.0.2 USB 16x2 Performance and Recording Digital Mixer
$1,406.99$1,159.99
PreSonus StudioLive AR16c: Picture 1 regular
PreSonus StudioLive AR16c 16-Channel USB-C Compatible Hybrid Audio Interface
$839.99$629.99
See More Recommendations
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

PreSonus StudioLive 16 Series III Specifications

  • Channels

    16 input channels, 32 mixing channels

  • Inputs: Mic Preamps

    8x XLR (mic), 8x XLR-1/4" combo (mic/line)

  • Phantom Power

    16 channels + talkback

  • Inputs: Other

    2x stereo RCA (tape in), 4x 1/4" (stereo aux 1,2)

  • Outputs: Digital

    1x XLR (AES/EBU)

  • Outputs: Main

    2x XLR (left, right), 1x XLR (mono sum)

  • Outputs: Other

    6x XLR (mix outs), 2x 1/4" (monitor out), 4x 1/4" (mix outs), 2x stereo RCA (tape out)

  • Busses/Groups

    16 Flex mixes (aux, subgroups, matrix) plus 4 subgroups

  • Data I/O

    Ethernet AVB (55x55 network), SD card reader, 1x Ethernet (network control)

  • USB

    1x Type B (40x40 interface)

  • Computer Connectivity

    USB

  • Headphones

    1x 1/4"

  • EQ Bands

    4-band parametric EQ (inputs), 6-band parametric EQ (outputs), 8x 31-band graphic EQ

  • Effects

    4 effects buses (reverbs, delays, vintage modeling)

  • Signal Processing

    Full Dynamics processing (tube, FET modeling)

  • Functions

    Bluetooth input, 100 scenes

  • Talkback

    1x XLR (phantom power)

  • Transport Controls

    Yes

  • DAW Control

    Yes

  • Software

    UC Surface 2 (Mac, Windows, iPad), Capture and Studio One Artist DAW (Mac, Windows), Qmix Monitor Control compatible

  • UPC Code

    673454004865

About PreSonus StudioLive 16 Series III

PreSonus third-generation StudioLive 16 digital console is by far the most powerful mixer in its class and is fully recallable, with touch-sensitive, motorized faders and recallable XMAX preamps. Yet it retains PreSonus legendary ease of use, with a fader for each input channel and 1-to-1 workflow and adds new customizable Fat Channel controls.

Its studio-grade sound is enhanced with all new Fat Channel processing, including a plug-in-style workflow that features vintage-style EQ and compression options on every channel. You get 16 FlexMixes that can be Aux, Subgroup or Matrix mixes; 6-band fully parametric EQ on all mix outputs; 24 DCA groups; and built-in AVB networking. In addition to 40x40 USB and 55x55 AVB recording interfaces, the StudioLive 16 features an onboard multitrack SD recorder with Capture one-touch recording, true virtual soundcheck and mix scene transfers to Studio One-without a computer.

PreSonus StudioLive 16 Series III Features

  • Fully recallable, 16 channel digital mixing console (32 internal channels)
  • 16 input channels (8 mic, 8 mic/line) with recallable XMAX preamps
  • 17 touch sensitive, motorized faders
  • Full color touchscreen and Channel scribble strips
  • All new scene management with level fading and channel safe
  • 16 Flex mixes (Aux mixes, Subgroups, or Matrix mixes) plus 4 dedicated subgroups
  • Tape input: Bluetooth wireless or analog
  • 4 internal effects buses (combination of reverbs and delays with modern and vintage options)
  • Insert effects on up to 4 channels
  • New Fat Channel processing with vintage EQ and Compressor modes available on every channel
  • Three types of multitrack recording: to onboard SD Card recorder (using Capture), 40x40 USB interface, and 55x55 AVB interface
  • Complete solution: Includes UC Surface 2 touch control software for Mac, Windows and iPad; Capture live recording software and Studio One Artist DAW for Mac and Windows; compatible with free QMix personal monitoring control for iPhone /iPod touch, and Android

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • PreSonus StudioLive 16 Series III 16-Channel Digital Mixer
  • PreSonus 1 Year Warranty
