16% Off

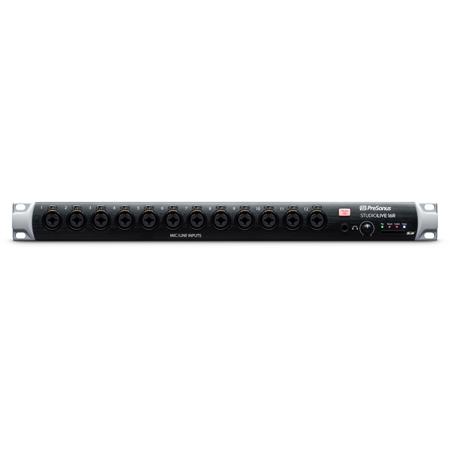

PreSonus StudioLive 16R 18-Input 16-Channel Series III Stage Box and Rack Mixer, Recallable XMAX Preamps

SKU: PSTU0LIV16R MFR: 2779200201
Earn VIP Reward Points

Key Features

  • Achieve pristine audio quality with recallable XMAX preamps for studio recording.
  • Seamlessly integrate into your digital audio workstation (DAW) via USB 2.0.
  • Control your mix remotely using UC Surface software on your tablet or computer.
  • Expand your I/O with AVB networking for flexible audio routing options.
  • Perfect for live sound, offering a robust stage box and rack mixer solution.
  • Enjoy ultra-low latency performance for real-time monitoring and mixing.
See More Product Details
Special Order?Estimated to Ship: 09/10/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

PreSonus StudioLive 16R Specifications

  • System requirements

    Mac:
    Mac OS X 10.8.5 64-bit or later
    Intel Core 2 Duo processor (Intel Core i3 or faster recommended)
    4GB RAM (8GB or more recommended)

    Windows:
    Windows 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
    Intel Core 2 Duo (Intel Core i3 or faster recommended)
    4GB RAM (8GB or more recommended)

    Mac and Windows Systems:
    USB 2.0 port
    Internet connection
    Internal or external 7200 RPM storage drive highly recommended

  • System requirements (Cont.)

    30GB hard disk space
    Monitor with 1366x768 resolution
    iOS: iOS 9.3 or later
    iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation), iPad mini, iPad (3rd generation), iPad 2

    Android:
    Android 5.0 (Lollipop) or later
    Android smartphone (QMix-UC)
    Android tablet (8-inch) with 1024x768 resolution (UC Surface)

  • Mic Preamp: Input Type

    Combo locking XLR mic-1/4" TRS line

  • Mic Preamp: Freq. Response to Direct O/P

    20 Hz-20 kHz, 0 / -0.5 dBu (at unity gain)

  • Mic Preamp: Input Impedance

    1 kOhms

  • Mic Preamp: THD to Main Output

    <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd

  • Mic Preamp: S/N Ratio to Main Output

    94 dB (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd)

  • Mic Preamp: Common Mode Rejection Ratio

    65 dB (1 kHz at unity gain)

  • Mic Preamp: Gain Control Range (+/-1 dB)

    0 dB to +60 dB

  • Mic Preamp: Maximum Input Level

    +12 dBu (unity gain)

  • Mic Preamp: Phantom Power (+/-2 VDC)

    48 VDC, switchable per channel

  • Unbalanced I/P (Ch. 15-16): Type

    RCA Female, unbalanced (stereo pair)

  • Unbalanced I/P (Ch. 15-16):Max I/P Level

    +12 dBu, +/-0.5 dBu

  • Main O/P: Type

    XLR Male, balanced

  • Main O/P: Maximum Output Level

    +24 dBu, +/-0.5 dBu

  • Main O/P: Output Impedance

    100Ohms

  • Mix O/P: Type

    1/4" TRS Female, balanced

  • Mix O/P: Maximum Output Level

    +18 dBu, +/-0.5 dBu

  • Mix O/P: Output Impedance

    100Ohms

  • Headphone O/P: Type

    1/4" TRS Female, active stereo

  • Headphone O/P: Maximum Output

    100 mW/ch. at 60Ohms load

  • Headphone O/P: Frequency Response

    20 Hz-20 kHz (+/- 0.5 dB)

  • Headphone O/P: THD+N

    0.01%, 1 kHz, max gain, 20 Hz BW, unwtd

  • Headphone O/P: S/N Ratio

    96 dB, 1 kHz, max gain, 20 Hz BW, unwtd

  • System Crosstalk: Input to Output

    -90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)

  • System Crosstalk: Adjacent Channels

    -87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)

  • Digital Audio&Control: ADC Dynamic Range

    115 dB (A-wtd, 48 kHz)

  • Digital Audio&Control: DAC Dynamic Range

    115 dB (A-wtd, 48 kHz)

  • Digital Audio&Control:USB Recording Port

    USB 2.0, Type-B

  • Digital Audio & Control: AES/EBU Output

    XLR Male

  • Digital Audio&Control: N/W Control Port

    RJ-45

  • Digital Audio&Control:AVB Audio N/W Port

    Ethercon

  • Digital Audio & Control:Internal Process

    32-bit, floating point

  • Digital Audio & Control: Sampling Rate

    48 kHz (44.1 kHz coming soon)

  • Digital Audio & Control: A/D/A Bit Depth

    24

  • Digital Audio & Control: Reference Level

    For 0 dBFS: +18 dBu

  • Digital Audio&Control: System Latency

    1.9 ms (local routing, analog in-analog out, all processing active)

  • Clock: Jitter

    <20 ps RMS (20 Hz - 20 kHz)

  • Clock: Jitter Attenuation

    >60 dB (1 ns in, 1 ps out)

  • Connector

    IEC

  • Input-Voltage Range

    90 to 230 VAC (+/-10%)

  • Power Requirements (continuous)

    85W

  • Ambient Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Dimensions (HxWxD)

    1.75 x 19 x 12" (4.45 x 48.26 x 30.48cm)

  • Weight

    8.6 lbs (3.90kg)

  • UPC Code

    673454005961

About PreSonus StudioLive 16R

For professionals seeking a durable, high-quality, and versatile audio solution, the StudioLive 16R 18-Input 16-Channel Series III Stage Box and Rack Mixer is the ideal choice. This reliable piece of equipment is designed to serve as a comprehensive stage box and rack mixer for live performances, offering an impressive 18 input channels and 16 output channels for the seamless mixing and routing of multiple audio sources.

The StudioLive 16R Series III is more than just a stage box; it's a powerful networked monitor mixer that provides extensive processing and mixing capabilities. With the ability to connect to a StudioLive Series III console/recorder via a lightweight CAT5e or CAT6 Ethernet cable, it eliminates the need for heavy, expensive copper snakes and the signal degradation associated with long analog cable runs.

One of the standout features of this rack mixer is its recallable XMAX preamps. These preamps deliver high-quality sound and allow for easy adjustments to the audio signal, ensuring optimal audio performance at all times. The StudioLive 16R also boasts third-generation Fat Channel processing, vintage-style EQs, and compressors, offering the coveted StudioLive sound that professionals around the world have come to trust.

This rack mixer is also designed for convenience and ease of use. It features an integrated software package with a professional DAW, remote-control apps, and one-touch recording. It also offers a choice of recording methods, including multitrack recording via USB 2.0 and AVB, onboard stereo recording to an SD Card, and networked recording via an AVB Ethernet connection.

With its robust set of features, the StudioLive 16R 18-Input 16-Channel Series III Stage Box and Rack Mixer is more than capable of meeting the demands of any live performance or recording session. Whether you're a seasoned professional or an aspiring audio engineer, this rack mixer is a valuable addition to any audio setup.

PreSonus StudioLive 16R Features

  • High-performance 18-Input 16-Channel Series III Stage Box and Rack Mixer for professional audio mixing
  • Features recallable XMAX preamps for superior sound quality and easy audio adjustments
  • Connects via lightweight CAT5e or CAT6 Ethernet cable for easy networking and reduced signal degradation
  • Includes third-generation Fat Channel processing, vintage-style EQs, and compressors for enhanced audio control
  • Offers multiple recording methods including USB 2.0, AVB, and onboard stereo recording to SD Card
  • Comes with integrated software package with professional DAW, remote-control apps, and one-touch recording capabilities

Product Documents

User Manual

Key Features

  • Achieve pristine audio quality with recallable XMAX preamps for studio recording.
  • Seamlessly integrate into your digital audio workstation (DAW) via USB 2.0.
  • Control your mix remotely using UC Surface software on your tablet or computer.
  • Expand your I/O with AVB networking for flexible audio routing options.
  • Perfect for live sound, offering a robust stage box and rack mixer solution.
  • Enjoy ultra-low latency performance for real-time monitoring and mixing.

What's in the box:

  • PreSonus StudioLive 16R 18-Input 16-Channel Series III Stage Box and Rack Mixer
  • USB Cable
  • IEC Power Cord
  • Product Registration and Software Authorization Card
  • StudioLive Series III Rackmount Mixer Quick Start Guide
  • PreSonus 1 Year Warranty
