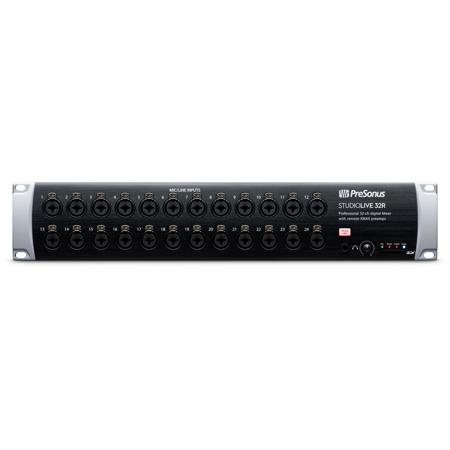

PreSonus StudioLive 32R - 34-Input, 32-Channel Series III Stage Box & Rack Mixer
SKU: PSTU0LIV32R MFR: 2779200203
$1,379.99
$1,679.99
Save: $300 (18%)OR
Key Features
- Capture pristine audio with low latency for seamless recording sessions.
- Use as a versatile stage box, rack mixer, and powerful digital audio interface.
- Achieve studio-quality sound with 32 channels and flexible input/output options.
- Integrate effortlessly with your DAW via USB for streamlined music production.
- Remotely control your mix using UC Surface on your tablet or smartphone.
- Enjoy superior sound with high-headroom preamps for clear, detailed recordings.
FREE 2-Day Shipping
See Options
1
Add Adorama Protect:
Available to U.S. customers only.
Need help? Ask our experts.
Specs
Protection
Q&A
PreSonus StudioLive 32R Specifications
System requirements
Mac:
Mac OS X 10.8.5 64-bit or later
Intel Core 2 Duo processor (Intel Core i3 or faster recommended)
4GB RAM (8GB or more recommended)
Windows:
Windows 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
Intel Core 2 Duo (Intel Core i3 or faster recommended)
4GB RAM (8GB or more recommended)
Mac and Windows Systems:
USB 2.0 port
Internet connection
Internal or external 7200 RPM storage drive highly recommendedSystem requirements (Cont.)
30GB hard disk space
Monitor with 1366x768 resolution
iOS: iOS 9.3 or later
iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation), iPad mini, iPad (3rd generation), iPad 2
Android:
Android 5.0 (Lollipop) or later
Android smartphone (QMix-UC)
Android tablet (8-inch) with 1024x768 resolution (UC Surface)Mic Preamp: Input Type
Combo locking XLR mic-1/4" TRS line
Mic Preamp: Freq. Response to Direct O/P
20 Hz-20 kHz, 0 / -0.5 dBu (at unity gain)
Mic Preamp: Input Impedance
1 kOhms
Mic Preamp: THD to Main Output
<0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
Mic Preamp: S/N Ratio to Main Output
94 dB (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd)
Mic Preamp: Common Mode Rejection Ratio
65 dB (1 kHz at unity gain)
Mic Preamp: Gain Control Range (+/-1 dB)
0 dB to +60 dB
Mic Preamp: Maximum Input Level
+12 dBu (unity gain)
Mic Preamp: Phantom Power (+/-2 VDC)
48 VDC, switchable per channel
Unbalanced I/P (Ch. 31-32): Type
RCA Female, unbalanced (stereo pair)
Unbalanced I/P (Ch. 31-32):Max I/P Level
+12 dBu, +/-0.5 dBu
Main O/P: Type
XLR Male, balanced
Main O/P: Maximum Output Level
+24 dBu, +/-0.5 dBu
Main O/P: Output Impedance
100Ohms
Mix O/P: Type
1/4" TRS Female, balanced
Mix O/P: Maximum Output Level
+18 dBu, +/-0.5 dBu
Mix O/P: Output Impedance
100Ohms
Headphone O/P: Type
1/4" TRS Female, active stereo
Headphone O/P: Maximum Output
100 mW/ch. at 60Ohms load
Headphone O/P: Frequency Response
20 Hz-20 kHz (+/- 0.5 dB)
Headphone O/P: THD+N
0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
Headphone O/P: S/N Ratio
96 dB, 1 kHz, max gain, 20 Hz BW, unwtd
System Crosstalk: Input to Output
-90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
System Crosstalk: Adjacent Channels
-87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
Digital Audio&Control: ADC Dynamic Range
115 dB (A-wtd, 48 kHz)
Digital Audio&Control: DAC Dynamic Range
115 dB (A-wtd, 48 kHz)
Digital Audio&Control:USB Recording Port
USB 2.0, Type-B
Digital Audio & Control: AES/EBU Output
XLR Male
Digital Audio & Control:N/W Control Port
RJ-45
Digital Audio&Control:AVB Audio N/W Port
Ethercon
Digital Audio&Control:Internal Process
32-bit, floating point
Digital Audio & Control: Sampling Rate
48 kHz (44.1 kHz coming soon)
Digital Audio & Control: A/D/A Bit Depth
24
Digital Audio & Control: Reference Level
For 0 dBFS: +18 dBu
Digital Audio&Control: System Latency
1.9 ms (local routing, analog in-analog out, all processing active)
Clock: Jitter
<20 ps RMS (20 Hz - 20 kHz)
Clock: Jitter Attenuation
>60 dB (1 ns in, 1 ps out)
Connector
IEC
Input-Voltage Range
90 to 230 VAC (+/-10%)
Power Requirements (continuous)
85W
Ambient Operating Temperature
0 to 40 deg. C (32 to 104 deg. F)
Dimensions (HxWxD)
3.5 x 19 x 12" (8.89 x 48.26 x 30.48cm)
Weight
11.2 lbs (5.08kg)
UPC Code
673454006067
