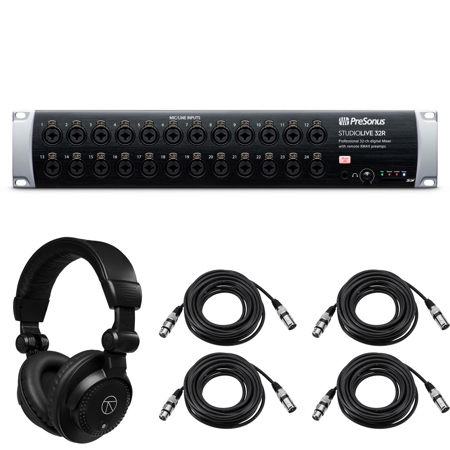

PreSonus StudioLive 32R - 34-Input, 32-Channel Series III Stage Box & Rack Mixer, Bundle with TAPH100 Headphones and 4x 25' XLR M to F Microphone Cable

SKU: PSTU0LIV32RA MFR: 2779200203 A
Earn VIP Reward Points

PACKAGE INCLUDES:

  • PreSonus StudioLive 32R 34-Input 32-Channel Series III Stage Box and Rack Mixer
    PreSonus StudioLive 32R 34-Input 32-Channel Series III Stage Box and Rack Mixer
  • +
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
    Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • +
  • H&A Value Series XLR M to F Professional Microphone Cable - 25'
    H&A Value Series XLR M to F Professional Microphone Cable - 25'

    Qty: 4

  • +
  • Show more

Key Features

  • Achieve pristine audio quality with this 32-channel digital audio interface.
  • Seamlessly integrate into your studio with low latency USB audio streaming.
  • Expand your recording setup using the flexible input/output options available.
  • Enjoy rock-solid driver stability for worry-free recording and mixing sessions.
  • Built tough for the road, this rack mixer offers premium build quality and reliability.
  • Get professional features without breaking the bank; experience incredible value today!
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

PreSonus StudioLive 32R Specifications

  • System requirements

    Mac:
    Mac OS X 10.8.5 64-bit or later
    Intel Core 2 Duo processor (Intel Core i3 or faster recommended)
    4GB RAM (8GB or more recommended)

    Windows:
    Windows 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
    Intel Core 2 Duo (Intel Core i3 or faster recommended)
    4GB RAM (8GB or more recommended)

  • System requirements (Contd.)

    Mac and Windows Systems:
    USB 2.0 port
    Internet connection
    Internal or external 7200 RPM storage drive highly recommended

    30GB hard disk space
    Monitor with 1366x768 resolution
    iOS: iOS 9.3 or later
    iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation), iPad mini, iPad (3rd generation), iPad 2

  • System requirements (Contd..)

    Android:
    Android 5.0 (Lollipop) or later
    Android smartphone (QMix-UC)
    Android tablet (8-inch) with 1024x768 resolution (UC Surface)

  • Mic Preamp: Input Type

    Combo locking XLR mic-1/4" TRS line

  • Mic Preamp: Freq. Response to Direct O/P

    20 Hz-20 kHz, 0 / -0.5 dBu (at unity gain)

  • Mic Preamp: Input Impedance

    1 kOhms

  • Mic Preamp: THD to Main Output

    <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd

  • Mic Preamp: S/N Ratio to Main Output

    94 dB (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd)

  • Mic Preamp: Common Mode Rejection Ratio

    65 dB (1 kHz at unity gain)

  • Mic Preamp: Gain Control Range (+/-1 dB)

    0 dB to +60 dB

  • Mic Preamp: Maximum Input Level

    +12 dBu (unity gain)

  • Mic Preamp: Phantom Power (+/-2 VDC)

    48 VDC, switchable per channel

  • Unbalanced I/P (Ch. 31-32): Type

    RCA Female, unbalanced (stereo pair)

  • Unbalanced I/P (Ch. 31-32):Max I/P Level

    +12 dBu, +/-0.5 dBu

  • Main O/P: Type

    XLR Male, balanced

  • Main O/P: Maximum Output Level

    +24 dBu, +/-0.5 dBu

  • Main O/P: Output Impedance

    100Ohms

  • Mix O/P: Type

    1/4" TRS Female, balanced

  • Mix O/P: Maximum Output Level

    +18 dBu, +/-0.5 dBu

  • Mix O/P: Output Impedance

    100Ohms

  • Headphone O/P: Type

    1/4" TRS Female, active stereo

  • Headphone O/P: Maximum Output

    100 mW/ch. at 60Ohms load

  • Headphone O/P: Frequency Response

    20 Hz-20 kHz (+/- 0.5 dB)

  • Headphone O/P: THD+N

    0.01%, 1 kHz, max gain, 20 Hz BW, unwtd

  • Headphone O/P: S/N Ratio

    96 dB, 1 kHz, max gain, 20 Hz BW, unwtd

  • System Crosstalk: Input to Output

    -90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)

  • System Crosstalk: Adjacent Channels

    -87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)

  • Digital Audio&Control: ADC Dynamic Range

    115 dB (A-wtd, 48 kHz)

  • Digital Audio&Control: DAC Dynamic Range

    115 dB (A-wtd, 48 kHz)

  • Digital Audio&Control:USB Recording Port

    USB 2.0, Type-B

  • Digital Audio & Control: AES/EBU Output

    XLR Male

  • Digital Audio&Control: N/W Control Port

    RJ-45

  • Digital Audio&Control:AVB Audio N/W Port

    Ethercon

  • Digital Audio&Control: Internal Process

    32-bit, floating point

  • Digital Audio & Control: Sampling Rate

    48 kHz (44.1 kHz coming soon)

  • Digital Audio & Control: A/D/A Bit Depth

    24

  • Digital Audio & Control: Reference Level

    For 0 dBFS: +18 dBu

  • Digital Audio&Control: System Latency

    1.9 ms (local routing, analog in-analog out, all processing active)

  • Clock: Jitter

    <20 ps RMS (20 Hz - 20 kHz)

  • Clock: Jitter Attenuation

    >60 dB (1 ns in, 1 ps out)

  • Connector

    IEC

  • Input-Voltage Range

    90 to 230 VAC (+/-10%)

  • Power Requirements (continuous)

    85W

  • Ambient Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Dimensions (H x W x D)

    3.5 x 19 x 12" (8.89 x 48.26 x 30.48cm)

  • Weight

    11.2 lbs (5.08kg)

  • UPC Codes

    192223275928, 192223075498, 673454006067, 192223227576

About PreSonus StudioLive 32R

34-input, 40-channel rack mixer with stagebox and monitor mixer modes
The StudioLive 32R digital mixer is four audio tools in two compact rackspaces. Use it as a standalone digital mixer with Universal Control remote mixing software. Pair it with your StudioLive Series III console mixer to use as a stage box or integrated monitor mixer. Connect it with EarMix 16M monitor mixers for the ultimate personal monitor system. Plug it into your studio computer, and you have a continuously bidirectional, 128-channel (64x64) USB audio interface with modeled vintage dynamics and EQ plug-ins on every input and bus. Whether used standalone or as part of a complete audio system, no other rackmount digital mixer is as flexible or as powerful.

Inside the StudioLive 32R, the single-core PreSonus FLEX DSP Engine powers 40 mixing channels, 22 mix buses, and 270 simultaneous processors, including 4 stereo effects and Fat Channel plug-in models on every input channel and bus. This is a true 40-channel digital mixer that can comfortably fit in any size rig. Simply connect it to a standard wireless router and control every mix parameter from your iPad, Android tablet, or Windows Touch computer using Universal Control. Universal Control was designed to make mixing on a touch screen as intuitive as mixing on faders.

An integrated 128-channel (64x64) audio interface lets you record with digitally recallable analog preamps and a complete rack of vintage EQ and dynamics processors for every channel and bus. Modeled after classic analog studio designs, these compressor and EQ plug-ins load both natively on the StudioLive 32R and inside Studio One Pro, providing the ultimate mixing and recording flexibility.

The perfect personal monitoring system
When combined with up to 16 EarMix 16M personal monitor mixers, the StudioLive 32R is the most powerful personal monitoring hub available. With 16 FlexMix buses that can be configured as aux mixes, subgroups, or matrix mixes, the StudioLive 32R makes it easy to create simplified mixes for musicians on stage. No other personal monitoring system offers so much power and flexibility.

The digital stage box
As a digital stage box, the StudioLive 32R provides 24 remote digitally controlled XMAX preamps that can be gain-staged right from your StudioLive Series III console Fat Channel. The outputs of the StudioLive 32R automatically mirror the mixes available on your console mixer, making routing fast and easy.

One-click recording
The StudioLive 32R is tightly integrated with PreSonus Capture live-recording software. Capture is designed to make recording easy by instantly configuring with your mixer and allowing you to record every channel plus the main mix with a single mouse click. Even better, your Capture sessions open natively in Studio One!

Studio One Pro 7 DAW Software License Included
Your hardware registration includes a perpetual License to Studio One Pro.

PreSonus StudioLive 32R Features

  • Powered by the new dual-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class
  • 36 input-channel digital rack mixer with 32 local digitally controlled XMAX mic/line inputs and FLEX FX returns
  • 26 mix buses: 16 FlexMixes (Aux, Subgroup, Matrix), 4 dedicated FLEX FX buses, and Stereo Main bus
  • 286 simultaneous processors: HPF, Gate/Expander Compressor with Fat Channel plug-in models, 4-band/6-band parametric EQ with Fat Channel plug-in models, Limiter
  • 31-band graphic EQ
  • 4 FLEX FX slots featuring legendary classic reverb emulations and delays
  • State Space Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
  • FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
  • 24 DCAs to control groups of channels
  • 128-channel (64x64) recording over USB
  • Onboard stereo SD recorder with true Virtual Soundcheck mode
  • AVB networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
  • Monitor Mix and Stage Box mode for use with StudioLive Series III console mixers
  • Pair with EarMix 16M personal monitor mixers for the ultimate personal monitor system
  • Remote control every mix function from your computer, iPad, or Android tablet with Universal Control (included)
  • Put your musicians' monitor mix under their fingers with QMix-UC (included) for iOS or Android
  • Capture 3.0 multitrack software included with Automated Virtual Soundcheck
  • Professional Recording Software Included - Studio One Pro License
  • Ableton Live Lite included

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve pristine audio quality with this 32-channel digital audio interface.
  • Seamlessly integrate into your studio with low latency USB audio streaming.
  • Expand your recording setup using the flexible input/output options available.
  • Enjoy rock-solid driver stability for worry-free recording and mixing sessions.
  • Built tough for the road, this rack mixer offers premium build quality and reliability.
  • Get professional features without breaking the bank; experience incredible value today!

What's in the box:

  • PreSonus StudioLive 32R 34-Input 32-Channel Series III Stage Box and Rack Mixer
  • USB Cable
  • IEC Power Cord
  • Product Registration and Software Authorization Card
  • StudioLive Series III Rackmount Mixer Quick Start Guide
  • PreSonus 1 Year Limited Warranty
  • Bundle Includes:
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • 4x H&A 25' Value Series XLR M to F Professional Microphone Cable
