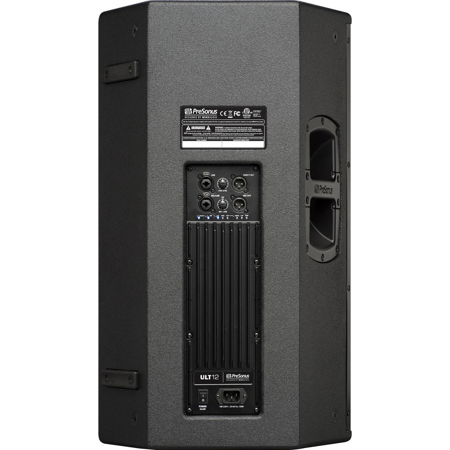

PreSonus ULT12 12" Active 2-Way Sound-Reinforcement Class-D Subwoofer, 1300W Peak Power

ULT: Ultra Long Throw
PreSonus ULT12 active loudspeakers combine the widest horizontal dispersion of any loudspeaker in their class with a focused vertical dispersion for an ultra-long throw. The result is even coverage throughout the space, enabling the audience to hear clearly wherever they are. Featuring PreSonus' proprietary Pivot X110 horn, a custom 12-inch low-frequency driver and plenty of biamped Class D power in a lightweight design with the performance characteristics that only wood can offer, ULT12 loudspeakers deliver first-rate speech intelligibility and natural music reproduction. This makes them a great choice for both mobile use and permanent installations.

• 12-inch custom woofer with 2.5-inch voice coil
• WorxAudio-designed waveguide Pivot X110 horn for precise coverage
• Ultra-wide 110 deg. horizontal dispersion
• Tight 50 deg. vertical dispersion for longer throw
• 1300W Class D power (150x500W continuous)
• XMAX preamp
• Onboard mixer with two combo XLR and 1/4" inputs
• Direct line-input channel output
• Single summed balanced output
• Multi-angle enclosure for mains or monitor wedge application
• Defeatable front-panel LED
• Rugged, texture-painted birch enclosures
• Tour-grade 16 gauge steel grille
• Comfortable ergonomic handles
• 35 mm pole sockets with 6 deg. downward tilt
• Integrated M10 rigging points for suspended horizontal and vertical installation
• Locking IEC connection

Wide Horizontal Coverage, Narrow Vertical Dispersion and Superior Throw
The ULT12's custom-designed Pivot x110 rotatable horn combines ultra-wide horizontal coverage (110 deg.) for broad coverage with focused vertical dispersion (50 deg.) for superior throw. The result is a loudspeaker that can fill the room without introducing early reflections that muddy the sound. In addition, the Pivot X110 horn's large size enables it to control the dispersion pattern lower in the frequency range than smaller conventional horns, so it maintains more consistent gain on- and off-axis, ensuring that the audience at the sides has the same listening experience as those in front. The result is sound reproduction that fills the entire room, evenly providing optimal audio.

Mounts Horizontally Or Vertically For A Variety Of Applications
The Pivot X110 horn can be rotated 90 deg., so the ULT12 can be mounted in a horizontal configuration while still maintaining its 110 deg. X 50 deg. coverage pattern. Along with its compact size, this makes the ULT12 an ideal center-channel speaker for an LCR system or an under-balcony fill. Rotating the Pivot X110 horn can also help fix FOH issues in tall, narrow venues by minimizing early reflections and providing more directed coverage. Add the ULT12's multi-angle enclosure and presets for live performance, floor monitor use and music playback and you have an extremely versatile loudspeaker that is equally at home at front-of-house and as a stage monitor.

Plenty of Power and I/O
The ULT12 is supplied with more than enough power and I/O to handle a wide variety of applications and environments. Its 12-inch woofer is driven by a 500W (continuous), Class D power amp, while the 1.75-inch Pivot X110 horn receives 150W. (Peak power is rated at 1,000W and 300W, respectively.) You get two combo XLR and 1/4" TRS inputs: a mic/line input with PreSonus' acclaimed XMAX mic preamp and a line-level-only input. The inputs have independent level control, allowing up to two audio sources to be mixed internally and summed to a balanced XLR output for "daisy-chaining" multiple units. A separate direct output for the line input channel provides additional flexibility.

Designed By Worxaudio
ULT12 loudspeakers were designed by WorxAudio, the commercial loudspeaker division of PreSonus. Headquartered in Greensboro, North Carolina, WorxAudio has been at the forefront of loudspeaker development for the pro touring and contractor markets for the over 30 years. WorxAudio continues to embrace the latest technology, delivering innovative products and installation designs for professional clients and their products can be found in prestigious facilities worldwide. So you can rely on ULT loudspeakers to deliver the top-quality professional performance and features that touring engineers and systems integrators need.

Hearing is Believing
With extra-wide horizontal and focused vertical dispersion, a rotatable horn, ultra-long throw, a wood enclosure and ample Class D power, the ULT12 is an excellent solution for permanent installations. Yet it's also portable, making it a top choice for tours and other mobile use. Best of all, it sounds great, delivering outstanding speech intelligibility and natural music reproduction, with even coverage throughout the space. Hear ULT-series loudspeakers for yourself at your favorite PreSonus dealer.
