Platinum Tools EZ-RJ45 Connector Specifications

  • Color

    Clear/Transparent

  • Cable

    Maximum OD: 0.275" (6.98mm)

  • Conductor

    Maximum OD: 0.040" (1.016mm)

  • Compliance

    FCC, UL, and RoHS

  • UPC Code

    899740000414

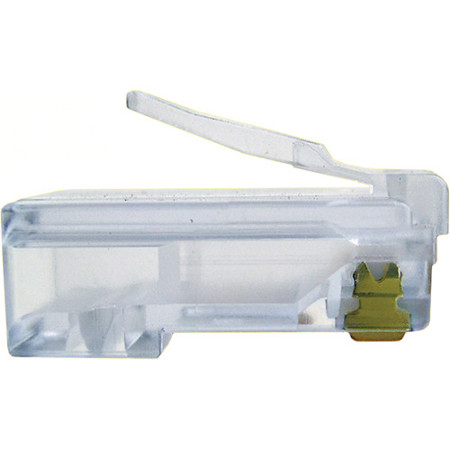

About Platinum Tools EZ-RJ45 Connector

The Original EZ-RJ45 Cat6 Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimized!

Platinum Tools EZ-RJ45 Connector Features

  • Meets ANSI/EIA/TIA/TAA specifications
  • Solid or Stranded, 24 - 23 AWG
  • UL Listed and RoHS/FCC compliant
  • 50 micron gold plated contacts

Key Features

  • Meets ANSI/EIA/TIA/TAA specifications
  • Solid or Stranded, 24 - 23 AWG
  • UL Listed and RoHS/FCC compliant
  • 50 micron gold plated contacts

What's in the box:

  • 50x EZ-RJ45 Cat6 Connectors
  • Platinum Tools 1 Year Warranty
