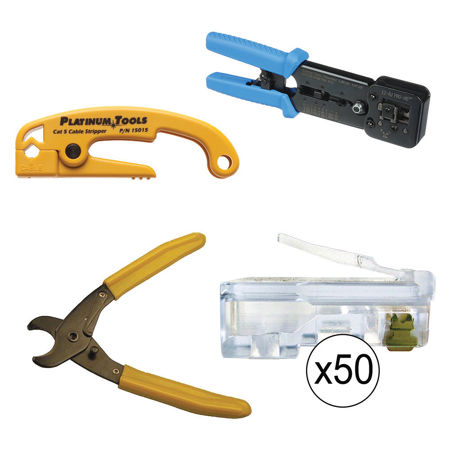

Platinum Tools EZ-RJPRO HD Basic Installation Kit, Crimp Tool, 50x Cat5/5e Connectors
SKU: PT100016
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
About Platinum Tools Basic Installation Kit
-- 100054C EZ-RJPRO HD Crimp Tool --
The EZ-RJPRO HD Crimp Tool is designed for the professional installer providing a ratcheted, high leverage, ultra stable platform for consistent, repeatable terminations. This heavy duty tool is the perfect solution when working with high performance, larger OD cables that are tougher to terminate due to larger wire gauges, thicker, harder insulation on the conductors and pair separating splines.
Not only will you overcome these connectivity obstacles but you can be assured that every termination will meet FCC specifications. Compatible with all EZ-RJ45 and EZ-RJ12/11 connectors as well as all standard modular plugs, except AMP.
Application
The EZ-RJPRO HD Crimp Tool uses the EZ-RJ45 'crimp & trim' system and is designed to handle larger dimensional size cables.
• EZ-RJ45 Cat5e connectors.
• EZ-RJ45 Shielded Cat5e connectors.
• EZ-RJ45 CAT6 connectors.
• EZ-RJ12/11 connectors and all other RJ45, RJ12 and RJ11 modular plug connectors except AMP.
-- 105003 EZ-RJ45 Cat5/5e Connectors --
The Original EZ-RJ45 Cat5e Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimized!
-- 10500C Coax & Round Wire Cable Cutter --
This durable, economically priced cutter is designed to cut solid and stranded wire to 8 AWG, multi-conductor and coaxial cable to 1/2" diameter. Features a curved, precision ground cutting blade that will not deform the conductors or dielectric you are cutting. Stamped from high carbon tool steel and heat treated for long life.
-- 15015C Cat 5e/6 Cable Jacket Stripper --
This economical tool strips the cable jacket from Cat5/5e/6 twisted pair cables with professional results. Features a long life blade specifically designed to self-adjust to prevent nicks to the inner conductors. Durable, high impact plastic housing is molded in yellow to make it easy to locate.
Platinum Tools Basic Installation Kit Features
- 100054C EZ-RJPRO HD Crimp Tool Features:
- Zero flex frame prevents torque loss during the crimping cycle
- Tool steel die head assembly provides 360 degree of connector support during crimp
- Clean, ultra flush trim on the EZ-RJ45 extended conductors
- Expanded surface area on contact drivers delivers full, uniform crimp force
- Built-in cutter and stripper for flat and round cable
- Full surface to surface contact delivers uniform crimp force
- Laser marked with wiring guide for proper wire sequence
- 105003 EZ-RJ45 Cat5/5e Connectors Features:
- Meets ANSI/EIA/TIA/TAA specifications
- Solid or Stranded, 24 - 23 AWG
- 50 micron gold plated contacts
- Made in USA
- 10500C Coax & Round Wire Cable Cutter Features:
- Cuts solid and stranded wire to 8 AWG
- Cuts multi-conductor cable to 1/2
- Cuts coaxial cables without deforming the dielectric
- 15015C Cat 5e/6 Cable Jacket Stripper Features:
- Removes the cable jacket on Cat5/5e/6 cables
- Accepts cable diameters from 0.18" to 0.25" (4.5mm - 6.3mm)
- No adjustments required; easily switch from one cable type or insulation to another
- Does not nick inner conductors
- Recommended for PVC cable jackets
- Long life blade
