Platinum Tools Shielded EZ-RJ45 for Cat5e/6 with Internal Ground, 50-Pack (Bag)
SKU: PT100020
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection

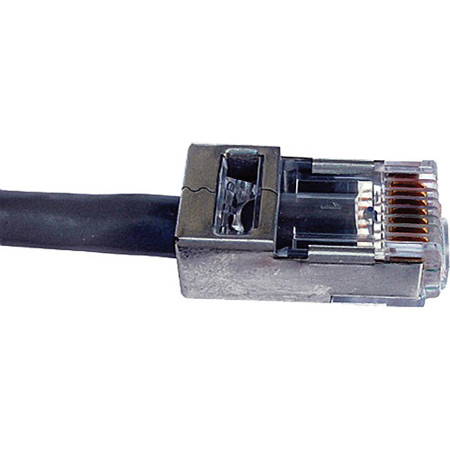

About Platinum Tools Shielded EZ-RJ45
The EZ-RJ45 fully shielded plug, with an internal ground, combines the performance advantage exclusive to the EZ-RJ45 design with the performance advantage inherent to shielded products to provide an unparalleled solution for the market.
Application
Hospitals < EMI / RFI >, Manufacturing plants, Casinos, Broadcast studios, Buildings in proximity to microwave towers, electrical power stations or towers.
• Can be prepped for use with Cat5e and Cat6+ shielded cable
Platinum Tools Shielded EZ-RJ45 Features
- EZ-RJ45 design allows the wires to pass through the connector so the twists in each pair can be pulled closer to the contacts than conventional plugs
- Maintaining the twists to the point of termination significantly decreases crosstalk and markedly increases performance
- Fully shielded products provide reduced pair-to-pair crosstalk, alien crosstalk, and considerably improved immunity to noise at all frequencies
- Significantly improve Shannon capacity
- Substantially improve noise immunity at all frequencies, especially above 30 MHz when cable balance starts to significantly degrade
- Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated. RoHS compliant
- For solid round or stranded wire cables
- TAA Compliant
