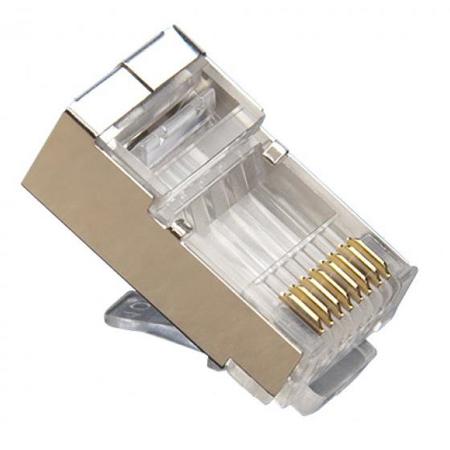

Platinum Tools Cat5e RJ45 (8P8C) Round-Solid HP Shielded Connectors, 10-Pack
See all Platinum Tools items

Platinum Tools Cat5e RJ45 (8P8C) Round-Solid 3-Prong High Performance Shielded Connectors, 24 AWG, 10-Pack (Clamshell)

SKU: PT106183C
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Platinum Tools ezEX44 Connector: Picture 1 regular
Platinum Tools ezEX44 RJ45 Unshielded Connector, 10 Pieces
$10.30$8.76
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Platinum Tools Cat5e RJ45-8P8C Connector Specifications

  • Length

    Conductors OD Range: 0.034 to 0.039" (0.860 to 0.990mm)
    Contact: 0.012" (0.300mm)
    Maximum OD Cable Jacket: 0.260" (6.604mm)

  • Material

    Contact: Phosphor bronze
    Plug: Polycarbonate UL94-V2

  • Contact Plating

    Gold 50micron

  • Operating Temperature

    -40 to 158 Degree F (-40 to 70 Degree C)

  • Flammability

    Rating of UL94V-2

  • Compliance

    Plug Tolerances/Dims: F.C.C. Requirements
    RoHS and UL

  • UPC Code

    849160007883

About Platinum Tools Cat5e RJ45-8P8C Connector

Built with a hi-lo stagger design to isolate each conductor at the point of termination making the end result a performance beyond enhanced Cat5e. The internal channels make it a quick & easy prep for termination without using any extra pieces!

Platinum Tools Cat5e RJ45-8P8C Connector Features

  • Eight conductor shielded internal ground
  • Conductors with an OD range of 0.034 to 0.039" (0.860 to 0.990mm)
  • 24 AWG
  • Uses 0.012" (0.30mm)
  • 3 prong contact for solid conductors only
  • Max cable jacket OD 0.260" (6.604mm)
  • RoHS & UL compliant

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Eight conductor shielded internal ground
  • Conductors with an OD range of 0.034 to 0.039" (0.860 to 0.990mm)
  • 24 AWG
  • Uses 0.012" (0.30mm)
  • 3 prong contact for solid conductors only
  • Max cable jacket OD 0.260" (6.604mm)

What's in the box:

  • 10x Cat5e RJ45 (8P8C) Round-Solid 3-Prong High Performance Shielded Connector (24 AWG)
  • Platinum Tools 1 Year Warranty
