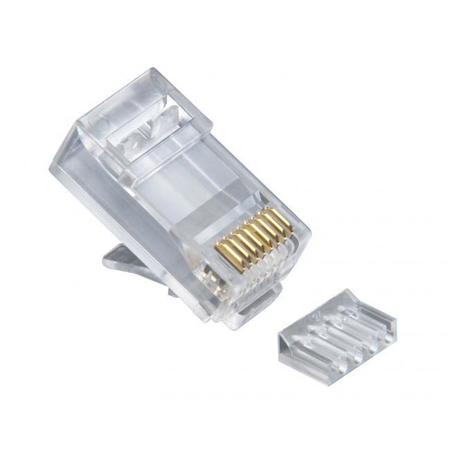

Platinum Tools Cat6 RJ45 (8P8C) 2 Piece Round-Solid 3-Prong High Performance Connectors with Liner 500-Pack (Bag)
SKU: PT106185
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
About Platinum Tools Cat6 RJ45-8P8C Connector
FEATURED REVIEWS
Platinum Tools RJ45 connector
Good product and design.
This 2 piece system makes terminating Cat6 quick & easy. The staggered loading bar acts as the stopping point for pair separation and maintains wiring configuration. Simply flush cut the conductors and slide assembly into the connector and terminate.
Platinum Tools Cat6 RJ45-8P8C Connector Features
- Eight conductor mod plug with loading bar
- Liner Bar Part No.: 1041
- For conductors with an O.D. Range of 0.041 to 0.044" (1.040 to 1.210mm)
- Uses 0.012" (0.30mm)
- 3 prong contact for solid conductors only
- Max cable jacket O.D. 0.280" (7.1mm)
- RoHS & UL Compliant
