Platinum Tools Cat6 RJ45 (8P8C) 2 Pc Round-Solid 3P HP Connectors, 25-Pack
Video Review of the Platinum Tools EZ-RJPRO HD Convenience Pack - 50 Kit, Box

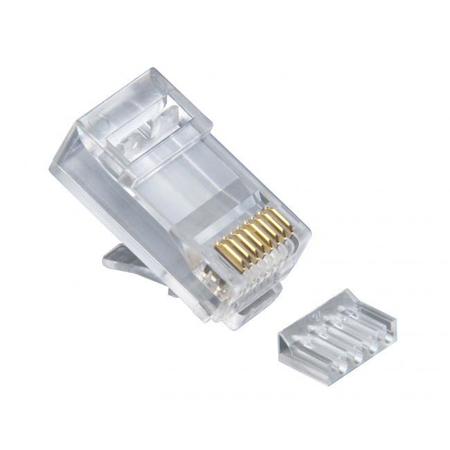

Platinum Tools Cat6 RJ45-8P8C Connector: Picture 1 thumbnail
See all Platinum Tools items

Platinum Tools Cat6 RJ45 (8P8C) 2 Piece Round-Solid 3-Prong High Performance Connectors with Liner, 25-Pack (Clamshell)

SKU: PT106187C

This item is no longer available.

Recommended Alternatives

Platinum Tools EZ-RJ45 Connector: Picture 1 regular
Platinum Tools EZ-RJ45 Cat6 Connectors, 100-Pack (Box)
$76.96$65.41
Platinum Tools ezEX48: Picture 1 regular
Platinum Tools ezEX48 RJ45 CAT6 Connectors (500-Pack/Bag)
$457.36$388.76
Platinum Tools CAT6 Connector: Picture 1 regular
Platinum Tools EZ-RJ45 CAT6 Connectors, 100-Pieces
$76.96$66.99
Platinum Tools EZ-RJ45 Connector: Picture 1 regular
Platinum Tools EZ-RJ45 Connectors for CAT5e & CAT6 External Ground, 50-Pack, Jar
$99.75$84.79
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Andy A : ES LO ESENCIAL PARA LAS CONEXIONES

Reviews about this item

Review Summary

2018-11-20T18:12:11

Rated 5 out of 5

Platinum Tools RJ45 connector

Good product and design.

Eddie H.

Platinum Tools Cat6 RJ45-8P8C Connector Specifications

  • Length

    Conductors OD Range: 0.041 to 0.044" (1.040 to 1.210mm)
    Contact: 0.012" (0.300mm)
    Maximum OD Cable Jacket: 0.280" (7.1mm)

  • Contact

    Material: Phosphor Bronze
    Plating: 50micron (>= 1.27micron m) AU

  • Material

    Plug/Liner Bar: Polycarbonate

  • Operating Temperature

    -40 to 158 Degree F (-40 Degree to 70 Degree C)

  • Flammability

    Rating of UL94V-2

  • Compliance

    Plug Tolerances/Dims: F.C.C. requirements
    RoHS and UL

  • UPC Code

    849160006787

About Platinum Tools Cat6 RJ45-8P8C Connector

FEATURED REVIEWS

Platinum Tools RJ45 connector

By Eddie H.

Good product and design.

This 2 piece system makes terminating CAT6 quick & easy. The staggered loading bar acts as the stopping point for pair separation and maintains wiring configuration. Simply flush cut the conductors and slide assembly into the connector and terminate.

Platinum Tools Cat6 RJ45-8P8C Connector Features

  • Eight conductor mod plug with loading bar
  • Liner Bar Part No.: 1041
  • For conductors with an O.D. Range of .044
  • Uses 0.30mm (.012)
  • 3 prong contact for solid conductors only
  • Max cable jacket O.D., .280
  • RoHS & UL Compliant

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Eight conductor mod plug with loading bar
  • Liner Bar Part No.: 1041
  • For conductors with an O.D. Range of .044
  • Uses 0.30mm (.012)
  • 3 prong contact for solid conductors only
  • Max cable jacket O.D., .280

What's in the box:

  • 25x Cat6 RJ45 (8P8C) 2 Piece Round-Solid 3-Prong High Performance Connectors
  • Platinum Tools 1 Year Warranty
