Platinum Tools Copper Foil Strips with Conductive Adhesive, 100 Pieces
See all Platinum Tools items

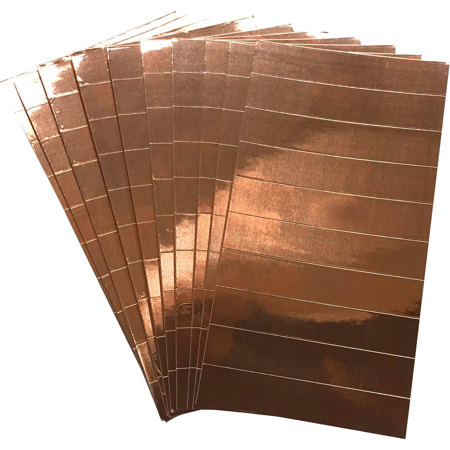

Platinum Tools Copper Foil Strips with Conductive Adhesive, 100 Pieces (10 Strips x 10 Sheets)

SKU: PT2039
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Platinum Tools Copper Foil Strips Specifications

  • Base Material

    Copper Foil

  • Base Material Characteristic

    XYZ Axis Conductive

  • Composition of Adhesive

    99.95% CU
    Acrylic Acid + NI

  • Thickness of Material

    0.025mm +/- 10%

  • Adhesive

    Conductive Acrylic Adhesive

  • Thickness of Adhesive

    0.03mm +/- 10%

  • Liner

    Single-Sided Release Paper with White Color

  • Heat Resistance (ASTM-1000)

    -10 to 120 deg. C (14 to 248 deg. F)

  • Peel off Strength (ASTM-1000)

    With Metal Plate: >=1.0kg (2.20 lbs)

  • Shielding Effectiveness (SJ-20524-1995)

    60dB (10MHz - 3GHz)

  • Copper Surface Resistivity (ASTM-100)

    0.015 Ohms

  • Adhesive Surface Resistivity (ASTM-1000)

    <=0.08 Ohms

  • Thickness of Liner

    0.15mm +/- 10%

  • Total Thickness

    0.05mm +/- 10%

  • Weight

    Liner: 140g (4.94 oz) +/- 10%

  • UPC Code

    849160010920

About Platinum Tools Copper Foil Strips

Platinum Tools Copper Foil Strips consist of a copper foil backing and conductive adhesive. The Copper Foil Strips are supplied on removable paper sheet for easy handling. Copper foil strips are typically used as an EMI / RFI shielding for applications in the electronics industry such as static charge draining, seaming shielded rooms, cable wrapping and surface contact to non-solderable materials. These copper foil strips work perfectly with all the Platinum Tools Shielded RJ45 Connector and Shielded Keystone Jacks.

Platinum Tools Copper Foil Strips Features

  • Conductive Adhesive
  • EMI/RFI Shielding Strips
  • Improves Bandwidth Performance
  • 10 strips per sheet (10 sheets per pack) 100 pcs

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • 100x Platinum Tools Copper Foil Strips with Conductive Adhesive
  • Platinum Tools 1 Year Limited Warranty
