1/2.8'', CMOS, Effective Pixel: 2.07M
1080p-60/50/30/25/59.94/29.97, 1080i-60/50/59.94, 720p-60/50/59.94
Off (1920x1080), 2X (960x540), 3X (640x360), 4X, (480x270), 8X (240x135), 16X (128x72)
0.5 Lux @ (F1.8, AGC ON)
1/30s - 1/10000s
12x: f = 4.1mm - 49.2mm, F1.8 - F2.68
20x: f = 4.42mm - 88.5mm, F1.8 - F2.8
30x: f = 4.42mm - 132.6mm, F1.8 - F2.8
Auto, Indoor, Outdoor, One Push, Manual, VAR
Supported
2D & 3D Digital Noise Reductions
12x: Horizontal: 6.9 Degree (tele) - 72.5 Degree (wide), Vertical: 3.9 Degree (tele) - 44.8 Degree (wide)
20x: Horizontal: 3.4 Degree (tele) - 60.7 Degree (wide), Vertical: 1.9 Degree (tele) - 34.1 Degree (wide)
30x: Horizontal: 2.3 Degree (tele) - 60.7 Degree (wide), Vertical: 1.28 Degree (tele) - 34.1 Degree (wide)
+/-170 Degree
1.7 Degree - 100 Degree /s
+90 Degree to -30
1.7 Degree - 69.9 Degree
Supported
255 Presets
0.1 Degree
DC 12V
2A (Max)
1x RJ45: 10/100 Adaptive Ethernet Port 424M standard
1x HDMI: version 1.3
1x 3G-SDI: BNC type, 800mVP-p, 75 Ohm, along to SMPTE 424M standard, USB 3.0 Type C
1x USB 3.0 Type C
1x 3.5mm Line level Input
1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
4x IR Addresses, Max distance 30' (9m)
JEITA type (DC IN 12V)
Gray
Aluminum, Plastic
Indoor
14 Degree F to 104 Degree F (-10 Degree C to 40 Degree C)
-40 Degree F to 140 Degree F (-40 Degree C to 60 Degree C)
5.6 x 6.7 x 6.5" (142 x 169 x 164mm)
7.88" (200mm) (Max height with tilt up)
3.2 lbs (1.44kg)
Network: NIC (TCP and UDP)
Serial: RS-232 Full Duplex, RS-485 Semi Duplex, RS-422 Full Duplex
PTZOptics VISCA and VISCA over IP
PELCO-D and PELCO-P via Serial Ports
Limited Sony VISCA and VISCA over IP support
1200 to 19200 bps
Ethernet: 328' (100m)
RS-232: 50' (15m)
RS-485: 3937' (1200m)
RS-422: 50' (15m)
12V DC
6W
802.3af
14 Degree F to +122 Degree F (-10 Degree C to +50 Degree C)
10% - 90% (non condensation)
11.938 x 9.25 x 2.188" (303.23 x 234.95 x 55.58mm)
Height with joystick: 4.25" (107.95mm)
4.45 lbs (2.02kg)
840170500074
The Foundation of Your Video Production Setup

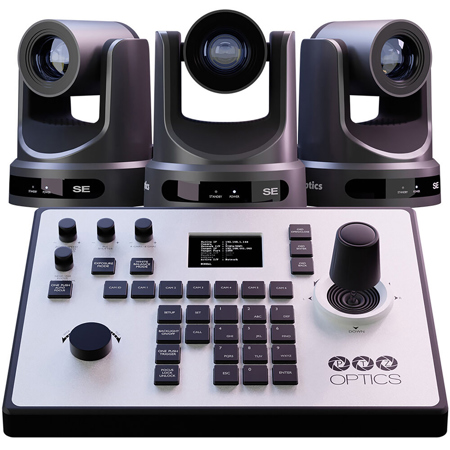

Looking to add video to your midsized or larger venue, school, house of worship or municipal meeting space? The PTZOptics Producer SE Bundle gets you started right away with three award-winning 20X Move SE cameras and a PT-JOY-G4 IP/serial connected joystick controller, all in one easy-to-afford package.
The Perfect Combo to Start Streaming or Recording
Built on the award-winning PTZOptics camera line, the PTZ and auto-tracking features you love are now more within reach than ever. Ideal for live streaming and video production, the Move SE offers high-quality video with a resolution of 1080p at 60fps. And with SONY CMOS image sensors, you can count on great image quality even in low-light scenarios. With the included PT-JOY-G4 IP/serial connected joystick controller, seamlessly integrate, manage multiple settings, and enjoy intuitive control for a budget-friendly price.
Designed with the Future in Mind
Move SE cameras deliver precision in every shot, even from a distance. Enjoy 1080p clarity, bringing lifelike quality to every frame, along with convenient auto-tracking capabilities. Offering an array of outputs, from SDI to HDMI, USB, NDI HX2, and IP, the Move SE cameras are the epitome of versatility and excellence. Users can control Move SE cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster - or use the PT-JOY-G4 joystick controller. Users can also live stream directly to content delivery networks such as Facebook and YouTube.
Pan, Tilt, Zoom, Track.
Through the Move SE's updated web user interface, control the built-in auto-tracking capabilities - there's no need to run software on another computer. Plus, PTZOptics' one-click firmware updates from the web UI make it easy to future-proof your investment, with new capabilities continuing to come online as the platform evolves. In addition, almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.
Enhanced Setup Management
The PT-JOY-G4's newly added web user interface will decrease your set up time, allowing you to get multiple cameras up and running in as little as five minutes! If you're using the PT-JOY-G4 for different productions or sets, we've got you covered. Import and export settings for specific use cases or production environments.
For network setup, the PT-JOY-G4 will dynamically obtain an IP address upon connection to your LAN. If your network is not able to supply DHCP addresses, you can assign a static IP address to the controller.
Streamlined Production at Your Fingertips
With an expanded LCD screen and a wide range of knobs for fine tuning, a single camera operator can easily:
Operate cameras in basic, matrix and normal modes
Access cameras and quickly recall preset locations
Control white balance, red and blue gain, shutter speed and more!
Use web-based and smartphone app control for added flexibility
Ramp Up to Dazzling 4K Clarity
If professional-level video is your goal, the Producer 4K Bundle is the way to go! Three Move 4K 20X PTZ cameras plus a SuperJoy joystick controller give you the stunning quality of 4K at 60fps, cinematic camera movements and expansive, flexible control.
