Platinum Tools CCTV Compression Coax Kit with Zip Case
SKU: PT90137
This item is no longer available.
Share:
Overview
Compare
Protection
Q&A

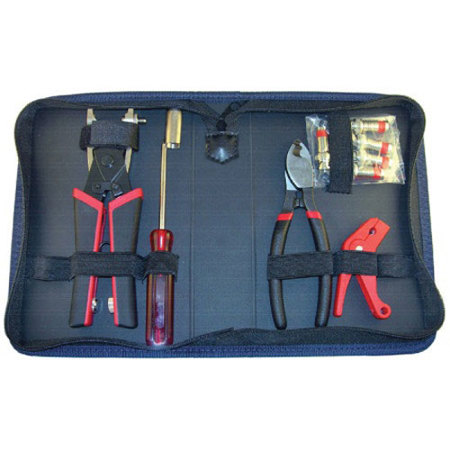

About Platinum Tools CCTV Compression Kit
Kit is the perfect solution when working with coaxial cable for CCTV security installations. Includes all tools needed to cut, strip, assemble & terminate SealSmart compression connectors on RG59 coaxial cable.
-- SealSmart Compression Crimp Tool --
The SealSmart Compression Crimp Tool provides simple, fast and reliable terminations. The perfect solution for CATV, DSS, Security and Residential Structured wiring installations. Connector adapters are included for F, RCA & BNC SealSmart connectors and mount in handle for easy storage. Straight action mechanism provides 360 Degree uniform compression. Crimp height is adjustable for use with similar style compression connectors.
-- BNC Removal Tool --
Designed and manufactured for the true Broadcast and Telco installation professional. Outperforms all other BNC Removal Tools in the market today, guaranteed. The barrel is precision machined from high strength tool steel and heat treated for long life. It will not stretch!! Extruded and polished resin handle. Made in the USA.
-- BTP-6 Coax & Data Cable Cutter --
The rugged drop forged construction of the BTP-6 Cutter, provides exceptional durability and professional results. Dual elliptical cutting blades are precision ground to provide low effort cutting of coaxial cables without deforming the cable dielectric. Cuts twisted pair cables, both UTP/STP, and a wide range of coax. Non-slip cushioned handles fit the hand and the tool pouch.
-- SealSmart RG59 Cable Stripper --
Fast, accurate stripping right out of the box. Each SealSmart Coax Stripper is pre-set at the factory for a specific coax cable size and strip length. Platinum Tools offer three color coded strippers to strip the most popular coax sizes/types used in home automation wiring & CATV cabling. The color codes coordinate with SealSmart Compression Connector color codes to reduce set up time and eliminate mistakes.
Platinum Tools CCTV Compression Kit Features
- SealSmart Compression Crimp Tool Features
- Connector crimping adapters included
- Crimps F, RCA, and BNC and Right angle compression style connectors - simply insert the adapter
- Use on RG59, RG6 and RG6 Quad shield cables
- Adjustable crimp stroke enables tool to work with SealSmart and other manufacturers' compression connectors
- BNC Removal Tool Features
- Use to insert and remove BNC connectors in digital video patchbays
- Use to insert and remove BNC connectors in high density DSX cross connect systems
- Wider barrel slot fits over Canare L-7CFB and Belden 9292 cables
- BTP-6 Coax & Data Cable Cutter Features
- Cuts solid, stranded and multi-conductor cables to 6 AWG
- Cuts coaxial cables without deforming the dielectric
- Dual elliptical cutting blades
- SealSmart RG59 Cable Stripper Features
- Color-coded for cable type (Red for RG-59), same as our SealSmart connectors
- 2 level strip
- No adjustments required
